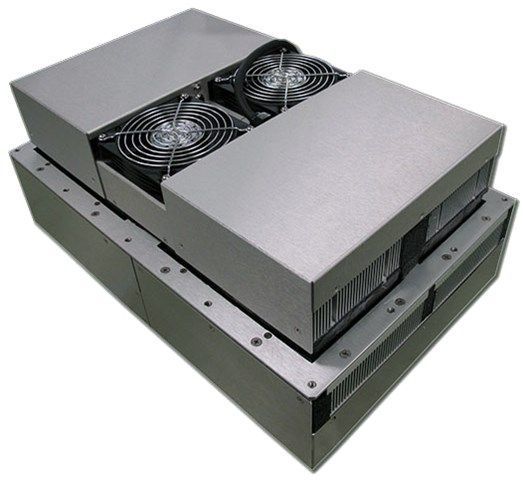

TECA Corporation - AHP-2250 High Capacity
Manufactured by TECA Corporation
Weatherproof NEMA Cabinet Cooler
Weatherproof NEMA Cabinet Cooler, 1880 BTU/HR (550 watts) High Performance, Efficient, in 48 VDC or 120 VAC Input:
For thermoelectric cooling of weatherproof NEMA cabinets, the AHP-2250-Series is an advanced, high performance thermoelectric cooler. The AHP-2250-Series will maintain efficient cooling, preserving the NEMA12/4/4X rating of your weatherproof enclosure. ECO-Mode temperature control feature helps save on power use. Designed to protect electronics equipment from overheating, thermoelectric cooling technology is reliable and low-maintenance. Cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. Ideal for indoor or outdoor environments.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric air conditioners from TECA for superior performance and reliability.
For thermoelectric cooling of weatherproof NEMA cabinets, the AHP-2250-Series is an advanced, high performance thermoelectric cooler. The AHP-2250-Series will maintain efficient cooling, preserving the NEMA12/4/4X rating of your weatherproof enclosure. ECO-Mode temperature control feature helps save on power use. Designed to protect electronics equipment from overheating, thermoelectric cooling technology is reliable and low-maintenance. Cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. Ideal for indoor or outdoor environments.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric air conditioners from TECA for superior performance and reliability.
Active Questions & AnswersAsk a Question
There are no current Discussions
Temperature Controller Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of AHP-2250 High Capacity
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 60 LBS.
Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
• Circuit breaker
General Specifications
There are no General Specifications available.
Additional Specifications
Voltage: 120 VAC, (48 VDC)
Current: 10.8 AMPS, (15 AMPS)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X
Performance Rating:
Cooling (Traditional): 1880 BTU/HR
Cooling (Din 3168): 550 WATTS
Cooling COP (at L35 L35): 0.42
Heating (Traditional): >4000 BTU/HR
Heating (Din 3168): >1200 WATTS
Heating COP: >1.0
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
