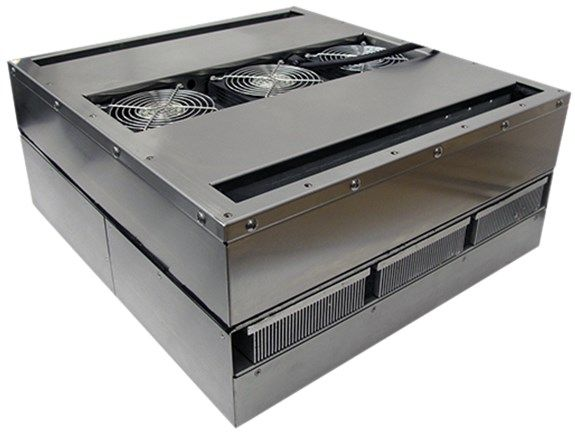

TECA Corporation - FHP-3250 Series
Manufactured by TECA Corporation
Large Capacity Thermoelectric Air Conditioner
Large Capacity Thermoelectric Air Conditioner 1978 BTU/HR (580 watts) Enclosure Cooling, 48 VDC or 120 VAC Input with Power Save Mode:
Cool NEMA-12 enclosures, NEMA-4 enclosures and NEMA-4X enclosures with the thermoelectric FHP-3250-Series. This advanced Peltier-driven air conditioner will maintain both efficient cooling and the NEMA rating of your enclosure. The flush-mounted design of the FHP-3250 is ideal for control cabinets with little to no room for added equipment. The ECO-Mode temperature control feature helps save on power use. Designed to protect control cabinets, thermoelectric cooling technology (a.k.a. Peltier) is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or outdoor environments.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.
Cool NEMA-12 enclosures, NEMA-4 enclosures and NEMA-4X enclosures with the thermoelectric FHP-3250-Series. This advanced Peltier-driven air conditioner will maintain both efficient cooling and the NEMA rating of your enclosure. The flush-mounted design of the FHP-3250 is ideal for control cabinets with little to no room for added equipment. The ECO-Mode temperature control feature helps save on power use. Designed to protect control cabinets, thermoelectric cooling technology (a.k.a. Peltier) is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or outdoor environments.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.
Active Questions & AnswersAsk a Question
There are no current Discussions
Temperature Controller Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of FHP-3250 Series
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 93 LBS.
Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
• Circuit breaker
General Specifications
There are no General Specifications available.
Additional Specifications
Voltage: 120 VAC, (48 VDC)
Current: 7.0 AMPS, (22 AMPS)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X
Performance Rating:
Cooling (Traditional): 1978 BTU/HR
Cooling (Din 3168): 580 WATTS
Cooling COP (at L35 L35): 0.7
Heating (Traditional): >2780 BTU/HR
Heating (Din 3168): >815 WATTS
Heating COP: >1.0
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
