TECA Corporation - AHP-4252 High Efficiency
Manufactured by TECA Corporation

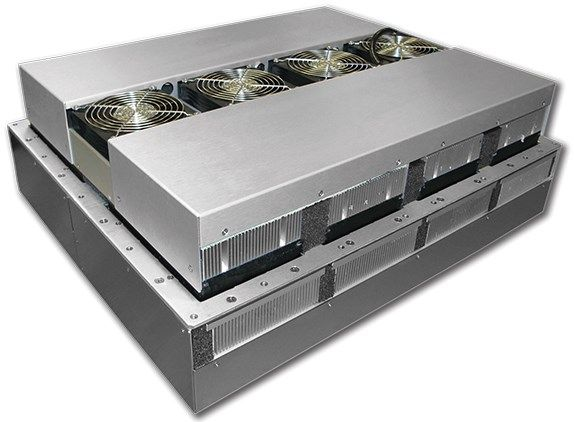

Efficient Thermoelectric Cooler
Efficient Thermoelectric Cooler 2780 BTU/HR (815 watts) For 240 Input, High Performance NEMA Enclosure Cooling:
NEMA-12/4/4X enclosures can be cooled with the AHP-4252-Series. It is an advanced Peltier-driven air conditioner. The thermoelectric enclosure cooler Model AHP-4252 will maintain both efficient cooling and the NEMA rating of your weatherproof enclosure. Its ECO-Mode temperature control feature helps save on power use. Increased efficiency at higher ambient temperatures by as much as 10% is possible. Designed to protect control cabinets, thermoelectric cooling technology is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or harsh, outdoor environments.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.
NEMA-12/4/4X enclosures can be cooled with the AHP-4252-Series. It is an advanced Peltier-driven air conditioner. The thermoelectric enclosure cooler Model AHP-4252 will maintain both efficient cooling and the NEMA rating of your weatherproof enclosure. Its ECO-Mode temperature control feature helps save on power use. Increased efficiency at higher ambient temperatures by as much as 10% is possible. Designed to protect control cabinets, thermoelectric cooling technology is reliable and low-maintenance. Cool controls, electrical equipment, enclosures, and other heat sensitive equipment. Ideal for indoor or harsh, outdoor environments.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.
Active Questions & AnswersAsk a Question
There are no current Discussions
Temperature Controller Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of AHP-4252 High Efficiency
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 110 LBS.
Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
• Circuit breaker
General Specifications
There are no General Specifications available.
Additional Specifications
Voltage: 240 VAC
Current: 4 AMPS, 0.9 AMPS Eco-Mode
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X
Performance Rating:
Cooling (Traditional): 2780 BTU/HR
Cooling (Din 3168): 815 WATTS
Cooling COP (at L35 L35): 0.85
Heating (Traditional): >3270 BTU/HR
Heating (Din 3168): >960 WATTS
Heating COP: >1.0
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
