TECA Corporation - FHP-4252 High Efiiciency
Manufactured by TECA Corporation

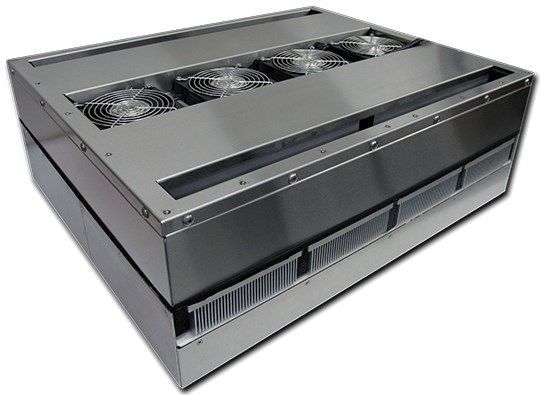

Efficient Flush Mount Thermoelectric Cooler
Efficient Flush Mount Thermoelectric Cooler 2615 BTU/HR (767 watts) 240 VAC Input with Power-Save Mode:
Cool NEMA enclosures reliably and efficiently with the FHP-4252-Series. It is an advanced thermoelectric enclosure cooler. The FHP-4252 will maintain both efficient cooling and the NEMA rating of your weatherproof enclosure. The flush-mounted design of the FHP-3252 is ideal for cooling enclosures with little to no room for added equipment. Its ECO-Mode temperature control feature helps save on power use. Designed to protect control cabinets, thermoelectric cooling technology is reliable and low-maintenance. Cool controls, electrical equipment, weatherproof enclosures, and other heat sensitive equipment. Ideal for indoor or outdoor environments.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.
Cool NEMA enclosures reliably and efficiently with the FHP-4252-Series. It is an advanced thermoelectric enclosure cooler. The FHP-4252 will maintain both efficient cooling and the NEMA rating of your weatherproof enclosure. The flush-mounted design of the FHP-3252 is ideal for cooling enclosures with little to no room for added equipment. Its ECO-Mode temperature control feature helps save on power use. Designed to protect control cabinets, thermoelectric cooling technology is reliable and low-maintenance. Cool controls, electrical equipment, weatherproof enclosures, and other heat sensitive equipment. Ideal for indoor or outdoor environments.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric enclosure coolers from TECA for superior performance and reliability.
Active Questions & AnswersAsk a Question
There are no current Discussions
Temperature Controller Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of FHP-4252 High Efiiciency
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting

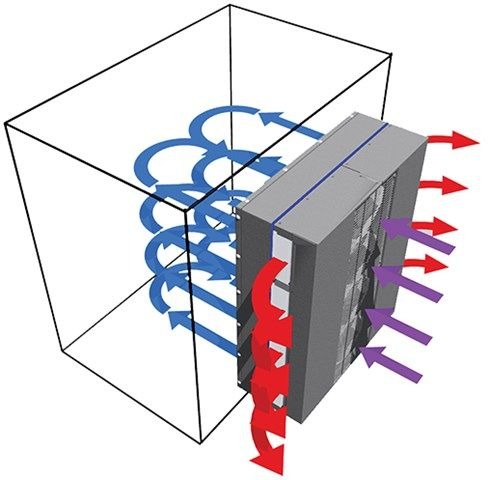

• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 116 LBS.
Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
• Circuit breaker
General Specifications
There are no General Specifications available.
Additional Specifications
Voltage: 240 VAC
Current: 4 AMPS, 0.8 AMPS Eco-Mode
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X
Performance Rating:
Cooling (Traditional): 2615 BTU/HR
Cooling (Din 3168): 767 WATTS
Cooling COP (at L35 L35): 0.8
Heating (Traditional): >3270 BTU/HR
Heating (Din 3168): >960 WATTS
Heating COP: >1.0
Heat Exchanger (ECO-Mode): 30 W/°C
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
