TECA Corporation - FHP-6250 Series
Manufactured by TECA Corporation

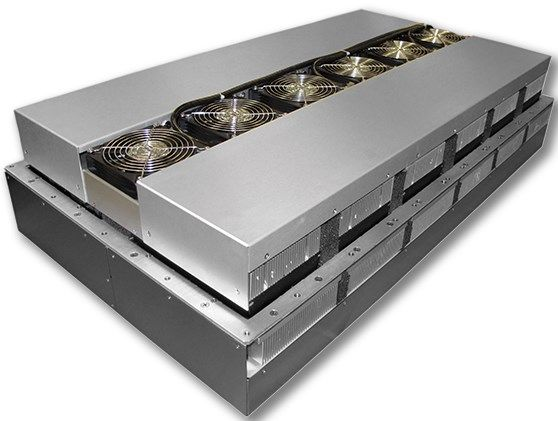

High Capacity Thermoelectric Air Conditioner
High Capacity Thermoelectric Air Conditioner
Active Questions & AnswersAsk a Question
There are no current Discussions
Temperature Controller Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of FHP-6250 Series
• High capacity thermoelectric design
• Power saving air to air heat exchanger (ECO-mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting

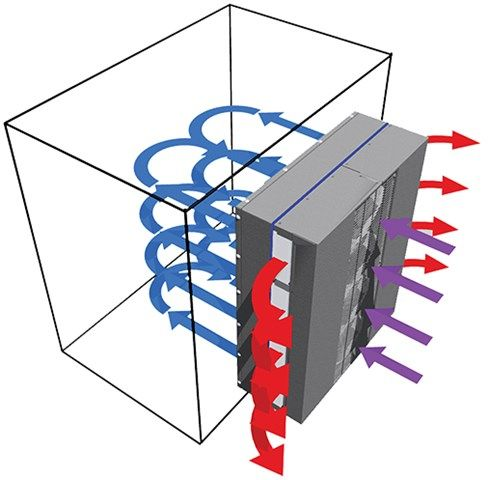

• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 170 LBS.
Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
• Circuit breaker
General Specifications
There are no General Specifications available.
Additional Specifications
Mounting Style: Flush Mounted
Voltage: 120 VAC, (48 VDC)
Current: 14 AMPS, (25 AMPS)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X
Performance Rating:
Cooling (Traditional): 3820 BTU/HR
Cooling (Din 3168): 1120 WATTS
Cooling COP (at L35 L35): 0.67
Heating (Traditional): >5524 BTU/HR
Heating (Din 3168): >1620 WATTS
Heating COP: >1.0
Heat Exchanger (ECO-Mode): 45 W/°C
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
