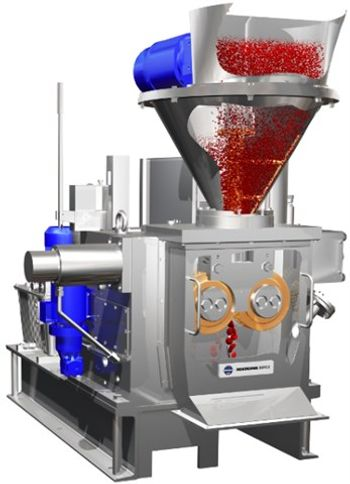

Hosokawa Micron Powder Systems - ALPINE KOMPAKTOR ARC CS
Manufactured by Hosokawa Micron Powder Systems
No Documents
With the Kompaktor CS 25 powder is process to granulate or briquettes. This process is described as compaction or...
With the Kompaktor CS 25 powder is process to granulate or briquettes. This process is described as compaction or briquetting.
Due to the cantilever bearing the Kompaktor CS 25 is particularly easy to maintain and this with 25 tonnes of press force!
The Kompaktor CS 25 is particularly suited for the laboratory and for small product amounts. Made for frequent product changes and abrasive products because the rollers can be easily replaced.
Due to the cantilever bearing the Kompaktor CS 25 is particularly easy to maintain and this with 25 tonnes of press force!
The Kompaktor CS 25 is particularly suited for the laboratory and for small product amounts. Made for frequent product changes and abrasive products because the rollers can be easily replaced.
Active Questions & AnswersAsk a Question
There are no current Discussions
Roller Compactors Service ProvidersView All (12)
Documents & Manuals
There are no Documents or Manuals available.
Features of ALPINE KOMPAKTOR ARC CS
APPLICATIONS
for compaction, granulation and briquetting * for abrasive products * for frequent product changes * for laboratory applications in the mineral and chemical industry for laboratory applications in the mineral and chemical industry
TECHNICAL DETAILS * Throughput up to 500 kg/h * Total press force 25 t * Roller diameter 228 mm * Vacuum de-aeration optional * Wear-protected construction optional * Different feeder auger screw systems * Hydraulics for working gap setting * Cantilever roller arrangement * Roller cooling optional * Special materials optional
