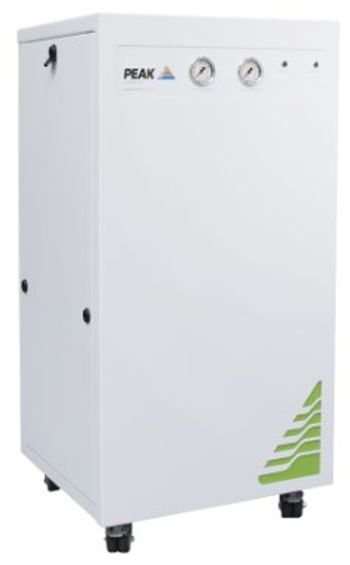

Peak Scientific - INFINITY XE 5030 - MEMBRANE NITROGEN GENERATOR
Producing between 30 and 180 L/min of high purity nitrogen gas, the Infinity XE 5010 can comfortably supply multiple ...
Producing between 30 and 180 L/min of high purity nitrogen gas, the Infinity XE 5010 can comfortably supply multiple LC-MS instruments with LC-MS grade nitrogen. With the Infinity XE 5010-5040 Membrane nitrogen generators you can now effectively meet the demands of numerous LC-MS instruments simultaneously. With no moving parts or mechanical sound, our Infinity range is easy to service and requires minimal maintenance.
Peak Scientific’s Infinity XE Series membrane nitrogen generatorhave been engineered to provide nitrogen to laboratories which already have an external source of clean, dry air which at a minimum meets ISO8753-1:2010 Class 1.4.1 (we can provide assistance on external compressors or pre-filtration systems as part of an Infinity gas generation solution). These systems contain no moving parts, are effectively silent whilst in operation and require minimal maintenance.
Active Questions & AnswersAsk a Question
There are no current Discussions
Nitrogen Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of INFINITY XE 5030 - MEMBRANE NITROGEN GENERATOR
- Flow rates from 30-180 L/min
- Variable flow rate100 psi outlet pressure
- Purity from 95-99.5% (flow rate dependent)
- Tried and tested membrane technology for high purity gas
- Small laboratory footprint – using minimal lab space
- True Eco mode - nitrogen supplied only when demanded by the instrument
General Specifications
Depth | 39.2 in |
Height | 19.7 in |
Purity | 99.5 % (95-99.5%) |
Width | 19.7 in |
Power Requirements | Voltage: 100-230VAC; Frequency: 50/60Hz |
Gas Generated | Nitrogen |
Additional Specifications
Gas Flow: 30-180L/min
Inlet Pressure: 125psi
Outlet Pressure: 100psi
Dew Point: -40°C
