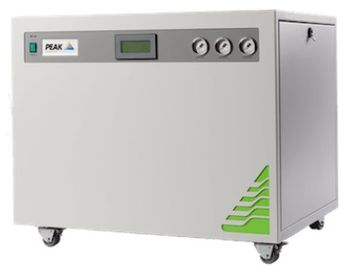

Peak Scientific - GENIUS AB-3G - SCIEX NITROGEN GENERATORS
Manufactured by Peak Scientific
The AB-3G has been designed to operate to the exact requirements of several Sciex LC-MS instruments. A three gas...
The AB-3G has been designed to operate to the exact requirements of several Sciex LC-MS instruments. A three gas system, the AB-3G provides nitrogen curtain gas, dry air source gas and dry air exhaust gas and benefits from robust integrated compressors, making it a complete standalone solution.
Active Questions & AnswersAsk a Question
There are no current Discussions
Nitrogen Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of GENIUS AB-3G - SCIEX NITROGEN GENERATORS
- Additional compressor capacity to ensure continuous operation in unlikely event of one compressor failure
- Engineered specifically for Sciex instruments
- Built to ensure uninterrupted supply of gas for clinical applications
- Advanced alarms in the unlikely event of product issues
- Generator has the capacity to self-diagnose and inform when maintenance is required
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- Gas is supplied on demand so generator works to your schedule
- Compressors are housed in an insulated compartment to reduce noise and vibration
- 12-month comprehensive on-site warranty
General Specifications
| Depth | 28.7 in |
| Flow Rate | 12 L/min |
| Height | 29.6 in |
| Maximum Pressure | 80 psi |
| Width | 35.4 in |
| Power Requirements | Voltage: 230 ± 10%VAC; Frequency: 50/60Hz; Current: 9.6 amps |
| Weight | 319 lbs |
| Gas Generated | Nitrogen |
