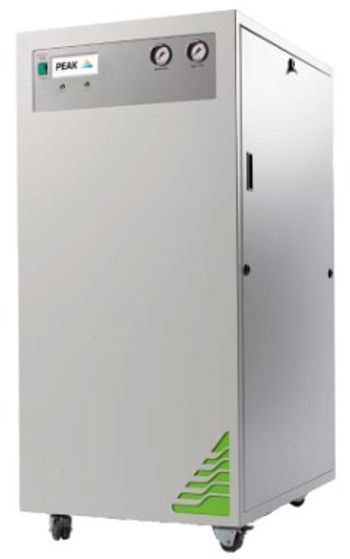

Peak Scientific - GENIUS 3051 - NITROGEN GENERATOR
Manufactured by Peak Scientific
Engineered specifically for the Shimadzu LCMS-8045, LCMS-8050, LCMS-8060 and LCMS-9030 instruments, the Genius 3051 p...
Engineered specifically for the Shimadzu LCMS-8045, LCMS-8050, LCMS-8060 and LCMS-9030 instruments, the Genius 3051 provides sufficient nitrogen and dry air even when these instruments are operated in 'high flow gas delivery mode'.
With one output of phthalate-free, high purity nitrogen at up to 26 L/min and one of dry air at up to 20 L/min, this tailored solution can also supply up to two Shimadzu LCMS-8045/50/60 when operated in ‘standard gas delivery mode’.
Active Questions & AnswersAsk a Question
There are no current Discussions
Nitrogen Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of GENIUS 3051 - NITROGEN GENERATOR
- Shimadzu tested and approved solution for LCMS-9030
- Specifically designed for LCMS-8045, LCMS-8050 and LCMS-8060
- Compressor based solution for an external air supply
- Gas is supplied on demand so generator works to your schedule
- Minimal set-up required
- Highly economical source of nitrogen/dry air with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Wheels make it easy to manoeuvre generator around the lab
- 12-month comprehensive on-site warranty
General Specifications
| Depth | 33.5 in |
| Flow Rate | 26 L/min |
| Height | 52 in |
| Maximum Pressure | 100 psi |
| Width | 23.6 in |
| Power Requirements | Voltage: 230 ± 10%VAC; Frequency: 50/60Hz; Current: 12 amps |
| Weight | 475 lbs |
| Gas Generated | Nitrogen |
