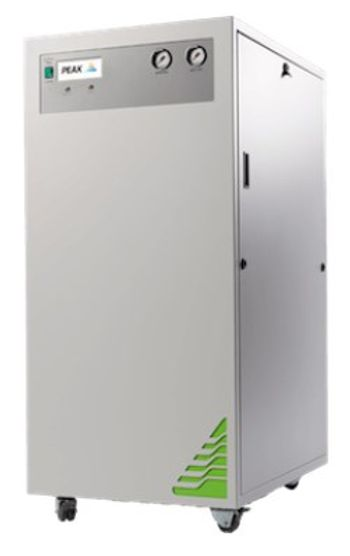

Peak Scientific - GENIUS 3045 - NITROGEN AND DRY AIR GAS GENERATOR
Manufactured by Peak Scientific
Designed to the specifications of the Bruker EVOQ Triple Quadrupole's gas requirements delivering dry air at up to...
Designed to the specifications of the Bruker EVOQ Triple Quadrupole's gas requirements delivering dry air at up to 50L/min and nitrogen at up to 32L/min.
Active Questions & AnswersAsk a Question
There are no current Discussions
Nitrogen Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of GENIUS 3045 - NITROGEN AND DRY AIR GAS GENERATOR
- Independent nitrogen and dry air gas supplies can be tailored for its application
- Higher flow 30 series generator designed for hungrier LC-MS applications
- Compressor based solution, no need for an external air supply
- Highly economical source of nitrogen gas with low lifetime running costs
- Gas is supplied on demand so generator works to your schedule
- Service indication to allow planning of preventative maintenance
- Minimal set-up required
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- 12-month comprehensive on-site warranty
General Specifications
| Depth | 33.5 in |
| Flow Rate | 32 L/min |
| Height | 52 in |
| Maximum Pressure | 80 psi |
| Width | 23.6 in |
| Power Requirements | Voltage: 230 ± 10%VAC; Frequency: 50/60Hz; Current: 12 amps |
| Weight | 417 lbs |
| Gas Generated | Nitrogen |
