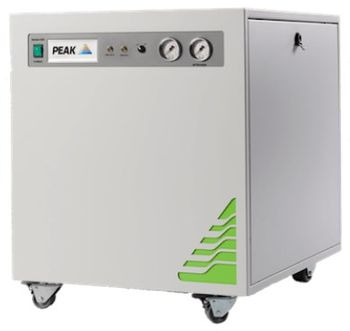

Peak Scientific - GENIUS 1061 - NITROGEN & DRY AIR GAS GENERATOR
Manufactured by Peak Scientific
The Genius 1061 is a dual gas generator providing both nitrogen and dry air designed to meet the specifications of the...
The Genius 1061 is a dual gas generator providing both nitrogen and dry air designed to meet the specifications of the Shimadzu LC-MS 8050 for labs with an electrical supply up to 100V. This system contains two compressors allowing nitrogen and dry air flows to function independently of one another. The generator is configured to change the flow ratio of nitrogen and dry air, so long as the combined sum results in a total of 25L/min. The gas flow ratio is automatically controlled by the instrumentis demand.
Active Questions & AnswersAsk a Question
There are no current Discussions
Nitrogen Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of GENIUS 1061 - NITROGEN & DRY AIR GAS GENERATOR
- Operates in labs with electrical supplies of 100V and below
- Innovative CMS and PSA technology ensures high performance
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- Wheels make it easy to manoeuvre generator around the lab
- 12-month comprehensive on-site warranty
General Specifications
| Depth | 29.5 in |
| Flow Rate | 25 L/min |
| Height | 28.1 in |
| Maximum Pressure | 100 psi |
| Width | 23.6 in |
| Power Requirements | Voltage: 100 ± 10%VAC; Frequency: 50/60Hz; Current: 13 amps |
| Weight | 259 lbs |
| Gas Generated | Nitrogen |
