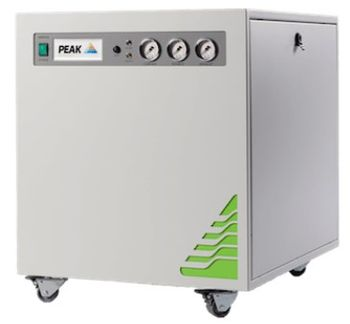

Peak Scientific - GENIUS ABN2ZA - NITROGEN GENERATORS
Manufactured by Peak Scientific
Designed exclusively for Sciex applications, the Genius ABN2ZA is a three gas output system providing nitrogen and dr...
Designed exclusively for Sciex applications, the Genius ABN2ZA is a three gas output system providing nitrogen and dry air to supply curtain, source and exhaust gas. This generator is compatible with a wide range of Sciex LC-MS instruments up to and including the 4600 Triple TOF.
The ABN2ZA is built around the trusted and proven technology of Peak Scientific's Genius series of generators. Designed mainly for LC-MS applications, these are self-contained systems featuring integrated compressors, delivering laboratory-grade nitrogen at various pressures and flow rates required by numerous instruments.
Active Questions & AnswersAsk a Question
There are no current Discussions
Nitrogen Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of GENIUS ABN2ZA - NITROGEN GENERATORS
- Delivers nitrogen as curtain gas and dry air as source and exhaust gas
- Developed specifically for Sciex LC-MS instruments
- Compressor based solution, no need for an external air supply
- Service indication to allow planning of preventative maintenance
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- Gas is supplied on demand so works to your schedule
- High-specification latest generation compressors located in insulated chamber reducing noise and vibration
- 12-month comprehensive on-site warranty
General Specifications
| Depth | 29.5 in |
| Flow Rate | 12 L/min |
| Height | 28.1 in |
| Maximum Pressure | 80 psi |
| Width | 23.6 in |
| Power Requirements | Voltage: 230 ± 10%VAC; Frequency: 50/60Hz; Current: 7 amps |
| Weight | 239 lbs |
| Gas Generated | Nitrogen |
