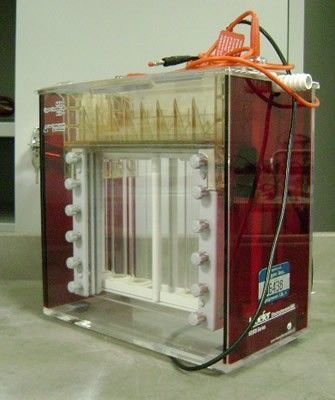

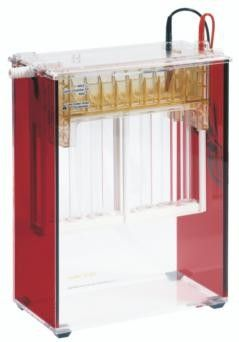

Hoefer - SE600 Series
Manufactured by Hoefer
Standard dual cooled gel electrophoresis unit.

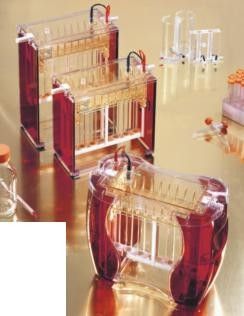

The Hoefer SE600 series has been the standard for laboratory vertical units worldwide. The wide range includes the SE600 (18 x 16 cm) unit, the SE660 (18 x 24 cm) unit and the ergonomically designed SE600 Chroma, the best looking electrophoresis system in the world.
The Hoefer™ SE 600 series vertical slab gel electrophoresis units are intended for protein and nucleic acid electrophoresis under commonly used denaturing and non-denaturing conditions. Up to 28 samples can be compared on a single
slab gel.
Applications include protein separations, nucleic acid fractionation, and the second-dimension separation of 2-D electrophoresis. First-dimension separation of 2-D protein electrophoresis should be performed on Immobilized pH Gradient
Gels. The focused strips are easily transferred to the second-dimension slab gel for size separation.
The Hoefer™ SE 600 series vertical slab gel electrophoresis units are intended for protein and nucleic acid electrophoresis under commonly used denaturing and non-denaturing conditions. Up to 28 samples can be compared on a single
slab gel.
Applications include protein separations, nucleic acid fractionation, and the second-dimension separation of 2-D electrophoresis. First-dimension separation of 2-D protein electrophoresis should be performed on Immobilized pH Gradient
Gels. The focused strips are easily transferred to the second-dimension slab gel for size separation.
Active Questions & AnswersAsk a Question
2Replies
Price of a Hoeffer SE 600
Need Equipment Support?
Documents & ManualsView All Documents
Features of SE600 Series
All gel plates are 18 cm wide. Table 1 on page 9 of the user manual lists both models and the corresponding gel plate length (16 or 24 cm). Up to four gels can be run at one time if sandwiches are paired into “club sandwiches.” The heat exchanger allows buffer temperature control in the lower chamber.
General Specifications
There are no General Specifications available.
Series Modals
Hoefer - SE600
[+] View Model Specifications| Depth | 14 cm (5.5 in.) |
| Height | 29 cm (11.5 in.) |
| Tray Capacity | 4 |
| Width | 32 cm (12.5 in.) |
| Power Requirements | 1,000 V, 50 W, 500 mA |
| Electropheresis Type | Gel |
| GE Type | Protein |
| Gel Size | 14 or 16 x 16 cm |
| Orientation (H/V) | Vertical |
| Additional Model Specifications | Maximum temperature: 45 °C Altitude: up to 2000 m Installation category: II Pollution degree: 2 Product certifications: EN61010–1, UL61010A-1, CSA C22.2 1010.1, CE Certified |
Hoefer - SE600X Chroma
[+] View Model Specifications| Depth | 14 cm (5.5 in.) |
| Height | 29 cm (11.5 in.) |
| Tray Capacity | 4 |
| Width | 32 cm (12.5 in.) |
| Power Requirements | 1,000 V, 50 W, 500 mA |
| Electropheresis Type | Gel |
| GE Type | Protein |
| Gel Size | 14 or 16 x 16 cm |
| Orientation (H/V) | Vertical |
| Additional Model Specifications | Maximum temperature: 45 °C Altitude: up to 2 000 m Installation category: II Pollution degree: 2 Product certifications: EN 61010-1, UL 61010A-1, CSA C22.2 1010.1, CE Certified |
Hoefer - SE660
[+] View Model Specifications| Depth | 14 cm (5.5 in.) |
| Height | 37 cm (14.5 in.) |
| Tray Capacity | 4 |
| Width | 32 cm (12.5 in.) |
| Power Requirements | 1,000 V, 50 W, 500 mA |
| Electropheresis Type | Gel |
| GE Type | Protein |
| Gel Size | 14 or 16 x 24 cm |
| Orientation (H/V) | Vertical |
| Additional Model Specifications | Maximum temperature: 45 °C Altitude: up to 2000 m Installation category: II Pollution degree: 2 Product certifications: EN61010–1, UL61010A-1, CSA C22.2 1010.1, CE Certified |
