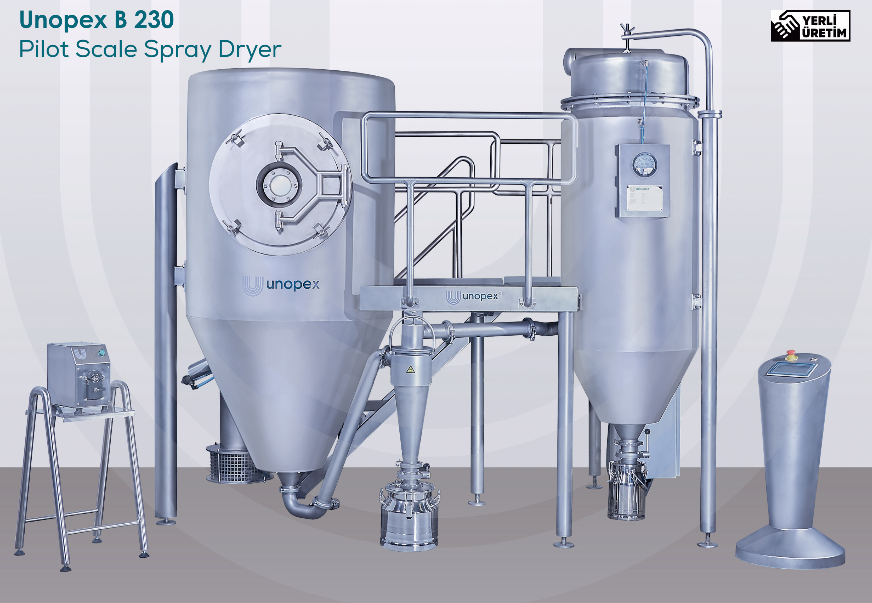

Unopex - Model B-230 Pilot Scale Spray Dryer

Manufactured by  Unopex
Follow this Equipment

Unopex B 230 Pilot Scale Spray Dryer has been designed for small scale productions and scientific test works in the u...

Unopex B 230 Pilot Scale Spray Dryer has been designed for small scale productions and scientific test works in the universities and R&D departments.

The results from a successful spray drying test conducted on the Unopex B 15 Mini Spray Dryer can be utilized in the scale up procedure to Unopex B 230 Pilot Scale Spray Dryer and to industrial scale.

Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support
Features of Model B-230 Pilot Scale Spray Dryer
  • Touchscreen operating panel
  • Co-current or counter-current options
  • Automatic nozzle cleaning
  • PLC control
  • Display and easy setting of the process parameters
  • 2-fluid nozzle or rotary atomizer options
  • Closed cycle option available
General Specifications
Depth 2.01 m
Height2.5 m
Width 1.5 m
Atomization System2-fluid, rotary atomizer
Configurationco-current/counter-current
Constructionstainless steel 1.4401 - 1.4404
Evaporating Capacity0.5 - 6
Feed Pumpperistaltic, variables speed
Heating Systemelectrical, PID controlled
Particle Diameter Range5 to 80 ┬Ám
Additional Specifications

Operating Panel: touchscreen

Computer Connection: data transfer with ethernet or USB
