Advanced Instruments - Advanced® Model 3320
Osmometer for Osmolality Measurement using Freezing Point Depression

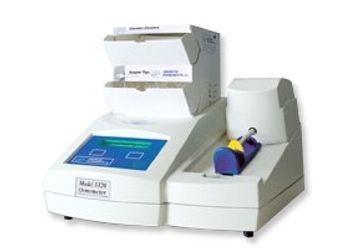

The Advanced® Model 3320 Micro Osmometer determines the osmolality of solutions using freezing point depression (FPD). It is Ideal for serum, urine or other bodily fluids in clinical applications; and media or formulations in pharmaceutical, biotech or industrial applications.
Automated, single sample, designed to process a 20 µL sample, and one-minute test time, allows the Model 3320 to provide the best accuracy and precision in the market today.
Active Questions & AnswersAsk a Question
Osmometers Service ProvidersView All (5)
Documents & ManualsView All Documents
Features of Advanced® Model 3320
- 20 µL is ideal for applications where the sample quantity is limited.
- Unparalleled ease of use
- Internal diagnostics
- Ergonomic, compact design
- On-board statistical analysis
- Results recall up to the last 30 tests
- Multi-language operation
- Automated calibration
- Password lock out
- Hot-Line® Technical Service available 24/7
General Specifications
| Depth | 15 in |
| Height | 14 in |
| Width | 14 in |
| Power Requirements | 100 to 240 VAC (50 to 60 Hz), 60 W consumption |
| Weight | 13.4 lbs |
Additional Specifications
Sample volume: 20 µL
Test time: 60 seconds
Sample capacity: Single sample
Units: mOsm/kg H2O
Resolution: 1 mOsm/kg H2O
Range: 0 to 2000 mOsm/kg H2O
Linearity*: Less than ±1% from a straight line over calibrated range
Repeatability*: Std. deviation ²2 mOsm/kg H2O between 0 and 400 mOsm/kg H2O; Std. deviation ²0.5% of value between 400 and 2,000 mOsm/kg H2O
Temperature effects**: Less than 1 mOsm/kg H2O per 5°C (9°F) ambient temperature change
Communications: DTE EIA-232/V.24 (RS-232) serial port, parallel printer port, and optional bar code scanner
Supported languages: English, French, German, Spanish, Italian, Portuguese, Swedish, Danish, Czech, Slovak
Operating Conditions: 18 to 35°C (64 to 95°F), 5 to 80% relative humidity, (non-condensing)
Storage temperature: -40°C to +45°C (-40°F to +113°F)
Shipping weight: 25 lb (11.4 kg)
Warranty: One-year limited warranty on workmanship and all parts except glass, plastic, and parts warranted by their makers
*Performance at Reference Conditions — 20°C to 25°C (68°F to 77°F); 40% to 60% relative humidity; tolerances of reference or calibration solutions
excluded
**Operating Conditions — 18°C to 35°C (64°F to 95°F); 5% to 80% relative
humidity (noncondensing)
