Labconco - FreeZone Series
Manufactured by Labconco
1 L to 12 L capacity freeze dry systems designed to handle lyophilization needs of research and pilot plant labs
FreeZone Freeze Dry Systems are designed to handle the lyophilization needs of research and pilot plant laboratories. Benchtop and mobile console models are offered. Collectors that reach -50 C are available with capacities from 1 to 18 liters. Cascade systems in 2.5, 6 and 12 liter collector capacities that reach -84 C are ideal for freeze drying samples with low eutectic temperatures. Samples containing acetonitrile can be handled with FreeZone Freeze Dry Systems with cascade refrigeration.
Also available:
FreeZone -105°C 4.5 Liter Benchtop Freeze Dry Systems
FreeZone Triad Freeze Dry System
Also available:
FreeZone -105°C 4.5 Liter Benchtop Freeze Dry Systems
FreeZone Triad Freeze Dry System
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Freeze Dryers / Lyophilizers Service ProvidersView All (6)
Documents & ManualsView All Documents
Features of FreeZone Series
- Upright stainless steel collector coil capable of removing up to 10 L of water in 24 hours and holding up to 18 L of ice before defrosting
- CFC-free refrigeration system to cool collector to as low as -84°C
- Compact benchtop design with a small footprint
- Brushed stainless steel and glacier white epoxy-coated steel exterior with blue accents
- LCD for display of set up and operating parameters. It may be user-configured to select either automatic or manual mode operation and to display vacuum in mBar, Pa or Torr and temperature in ° F or ° C. It also displays total duration of refrigeration operation and since the refrigeration was serviced (in hours) and the duration of vacuum pump operation and since the vacuum pump was serviced (in hours)
- Automatic start-up for collector cool down and vacuum pull down when programmed for automatic mode and by turning on the power switch
- Side-mounted, retractable, 9" collector drain
- Lid with 3" diameter attachment port for connection of drying accessories (sold separately)
- Side-mounted power switch and rear-mounted electrical receptacle (for vacuum pump connection)
- 3/4" OD vacuum connector, three feet of 3/4" ID vacuum hose and two clamps
- Overall dimensions: 12" w x 17.88" d x 16.65" h (30.5 cm x 45.4 cm x 42.3 cm)
- ETL Listing (60 Hz models)
- Teflon-coated collector chamber and coil for processes involving corrosive compounds
- Domestic or international electrical configuration
- [i]On some models:[/i] Purge valve with switch for isolating the vacuum pump from the freeze dry system, built-in stainless steel mini chamber with heater and microprocessor control from as low as -40° C ambient to +60° C, 3/4" thick clear acrylic lid and neoprene gasket, stoppering tray dryer
General Specifications
There are no General Specifications available.
Additional Specifications
Ice Holding Capacity: 1 L
Collector Temperature: -50°C, -58°F
Drying Accessory: Drying accessory required but not included
Vacuum Pump Required: 86 L/Min. or larger displacement
Power Supply:
115 volts, 60 Hz, 6 A. With 20 amp plug, Domestic
220/240 volts, 50 Hz, 2.5 A. Plug is required, International
208/230 volts, 60 Hz, 2.5 A. Plug is required, Domestic
Series Modals

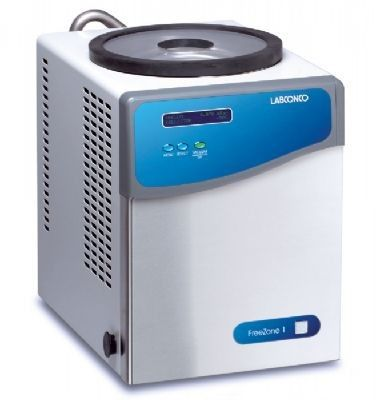

Labconco - FreeZone 1 Liter Benchtop
[+] View Model Specifications| Depth | 17.9 in |
| Height | 16.9 in |
| Width | 12.6 in |
| Power Requirements | 115,220/240,208/230 V, 50/60 Hz, 6/2.5 A. Domestic/International |
| Orientation | Benchtop |
| Refrigeration | 1/4 hp refrigeration system |
| Collector Temperature | -58 °F |
| Ice Holding Capacity | 1 L |
| Additional Model Specifications | Collector: Removes 1 liter of water in 24 hours and holds 1 liter of ice before defrosting is necessary
Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 86 L/Min. or larger displacement |
Labconco - FreeZone 12 Liter Console
[+] View Model Specifications| Depth | 28 in |
| Height | 36.3 in |
| Width | 32.2 in |
| Power Requirements | 230 volts, 60 Hz, 9.0 A |
| Orientation | Floor Standing |
| Weight | 275 lbs |
| Part Number | 7754040 |
| Refrigeration | 1 hp CFC-free refrigeration system |
| Collector Temperature | -58 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 12 L |
| Additional Model Specifications | Style: Console cabinet has interior space to house a vacuum pump
Collector: Removes 8 liters of water in 24 hours Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 144 L/Min or larger displacement Conformance: CAN/CSA C22.2, UL Optional: - Stoppering tray dryer - Teflon-coated collector - Purge valve - Mini chamber - Shell freezer |
Labconco - FreeZone 18 Liter Console
[+] View Model Specifications| Depth | 28 in |
| Height | 36.3 in |
| Width | 32.2 in |
| Power Requirements | 220/240,208/230 Vm 50/60 Hz, 4.5/5 A, Domestic/International |
| Orientation | Floor Standing |
| Weight | 285 lbs |
| Part Number | 7755040 |
| Refrigeration | 1 hp CFC-free refrigeration system |
| Collector Temperature | 0.58 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 18 L |
| Additional Model Specifications | Style: Console cabinet has interior space to house a vacuum pump
Collector: Removes 10 liters of water in 24 hours Drying Accessory: Drying accessory required but not included Conformance: CAN/CSA C22.2, UL Plug Type: North America, 230 volt Vacuum Pump Required: 144 L/Min or larger displacement Optional: - Stoppering tray dryer - Teflon-coated collector - Purge valve - Mini chamber - Shell freezer |
Labconco - FreeZone 2.5 Liter Benchtop
[+] View Model Specifications| Depth | 17.9 in |
| Height | 16.9 in |
| Width | 12.6 in |
| Power Requirements | 115 volts, 60 Hz, 14.0 A |
| Orientation | Benchtop |
| Weight | 85 lbs |
| Part Number | 7670520 |
| Refrigeration | 1/4 hp refrigeration system |
| Collector Temperature | -58 °F |
| Ice Holding Capacity | 2.5 L |
| Additional Model Specifications | Collector: Removes 2 liters of water in 24 hours and holds 2.5 liters of ice before defrosting is necessary
Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 86 L/Min. or larger displacement Conformance: CAN/CSA C22.2, UL, ETL |
Labconco - FreeZone 4.5 Liter Benchtop
[+] View Model Specifications| Depth | 18.5 in |
| Height | 22.5 in |
| Width | 18.6 in |
| Power Requirements | 115 volts, 60 Hz, 14 A |
| Orientation | Benchtop |
| Weight | 102 lbs |
| Part Number | 750020 |
| Refrigeration | 1/3 hp CFC-free refrigeration system |
| Collector Temperature | -58 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 4.5 L |
| Additional Model Specifications | Collector: Removes over 2 liters of water in 24 hours
Built-In Options: 10-port Drying Chamber Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 86 L/Min. or larger displacement Conformance: CAN/CSA C22.2, UL Plug Type: North America, 115 volt, 20 A |
Labconco - FreeZone 4.5 Liter Console
[+] View Model Specifications| Depth | 24 in |
| Height | 48.1 in |
| Width | 18.6 in |
| Power Requirements | 115 volts, 60 Hz, 14 A |
| Orientation | Floor Standing |
| Weight | 162 lbs |
| Part Number | 7751020 |
| Refrigeration | 1/3 hp CFC-free refrigeration system |
| Collector Temperature | -58 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 4.5 L |
| Additional Model Specifications | Style: Console cabinet has interior space to house a vacuum pump
Collector: Removes over 2 liters of water in 24 hours Built-In Options: 10-port Drying Chamber Drying Accessory: 10-port, permanently installed Vacuum Pump Required: 86 L/Min. or larger displacement Conformance: CAN/CSA C22.2, UL |
Labconco - FreeZone 6 Liter Benchtop
[+] View Model Specifications| Depth | 28.1 in |
| Height | 14.5 in |
| Width | 31.8 in |
| Power Requirements | 115 volts, 60 Hz, 16 A |
| Orientation | Benchtop |
| Weight | 150 lbs |
| Part Number | 7752020 |
| Refrigeration | 1/3 hp CFC-free refrigeration system |
| Collector Temperature | -58 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 6 L |
| Additional Model Specifications | Collector: Removes 4 liters of water in 24 hours
Built-In Options: 10-port Drying Chamber Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 144 L/Min or larger displacement Conformance: CAN/CSA C22.2, UL Options: - Stoppering tray dryer: Chamber has three shelves, each measuring 1.6" x 12", that hold serum bottles or vials. - Teflon-coated collector |
Labconco - FreeZone 6 Liter Console
[+] View Model Specifications| Depth | 28 in |
| Height | 36.3 in |
| Width | 32.2 in |
| Power Requirements | 115/230 V, 50/60 Hz, 20 A, Domestic/International (North America, Schuko, UK, China/Australia) |
| Orientation | Floor Standing |
| Refrigeration | 3/4 hp CFC-free refrigeration system |
| Collector Temperature | -58 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 6 L |
| Additional Model Specifications | Style: Console cabinet has interior space to house a vacuum pump
Collector: Removes 4 liters of water in 24 hours Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 144 L/Min or larger displacement Optional: - Stoppering tray dryer - Teflon-coated collector - Purge valve - Mini chamber - Shell freezer |
Labconco - FreeZone Plus 12 Liter Cascade Console
[+] View Model Specifications| Depth | 28 in |
| Height | 36.3 in |
| Width | 32.2 in |
| Power Requirements | 208/230,220/240 V, 50/60 Hz, 6.5/5.5 A, Domestic/International |
| Orientation | Floor Standing |
| Refrigeration | two 3/4 hp CFC-free refrigeration systems |
| Collector Temperature | -119 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 12 L |
| Additional Model Specifications | Style: Compact console cabinet's interior has room to accommodate a rotary vane vacuum pump (not included)
Collector: Removes 6 liters of water in 24 hours Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 144 L/Min or larger displacement Options: - Teflon-coated collector - Purge valve - Mini chamber |
Labconco - FreeZone Plus 2.5 Liter Benchtop Cascade
[+] View Model Specifications| Depth | 23.2 in |
| Height | 16.9 in |
| Width | 15.1 in |
| Power Requirements | 115,208/230,220/240 V, 50/60 Hz, 10/5.1 A, Domestic/International |
| Orientation | Floor Standing |
| Refrigeration | two 3/4 hp CFC-free refrigeration systems |
| Collector Temperature | -119 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 2.5 L |
| Additional Model Specifications | Style: Benchtop; compact design fits in tight spaces
Collector: Removes 1.8 liters of water in 24 hours Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 86 L/Min or larger displacement Options: - Teflon-coated collector |
Labconco - FreeZone Plus 2.5 Liter Cascade Console
[+] View Model Specifications| Depth | 23.2 in |
| Height | 37.4 in |
| Width | 18.6 in |
| Power Requirements | 115,208/230,220/240 V, 50/60 Hz, 10/5.1 A, Domestic/International |
| Orientation | Floor Standing |
| Refrigeration | 1/4 hp and 1/3 hp dual refrigeration systems |
| Collector Temperature | -119 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 2.5 L |
| Additional Model Specifications | Style: Console console cabinet's interior has room to accommodate a rotary vane vacuum pump (not included)
Collector: Removes 1.8 liters of water in 24 hours and holds 2.5 liters of ice before defrosting is necessary. Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 86 L/Min. or larger displacement |
Labconco - FreeZone Plus 4.5 Liter Benchtop Cascade
[+] View Model Specifications| Depth | 24.2 in |
| Height | 15 in |
| Width | 22.5 in |
| Power Requirements | 115,208/230,220/240 V, 50/60 Hz, 10/6.5/5.5 A, Domestic/International |
| Orientation | Floor Standing |
| Refrigeration | 1/3 hp CFC-free refrigeration system |
| Collector Temperature | -119 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 4.5 L |
| Additional Model Specifications | Style: Compact design fits in tight spaces
Collector: Removes over 4 liters of water in 24 hours Drying Accessory: 12-port drying chamber Vacuum Pump Required: 86 L/Min or larger displacement Options: - Teflon-coated collector |
Labconco - FreeZone Plus 4.5 Liter Cascade Console
[+] View Model Specifications| Depth | 24.2 in |
| Height | 36.5 in |
| Width | 22.5 in |
| Power Requirements | 115,208/230,220/240 V, 50/60 Hz, 11/5.5/2.5 A, Domestic/International |
| Orientation | Floor Standing |
| Refrigeration | 1/3 hp CFC-free refrigeration system |
| Collector Temperature | -119 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 4.5 L |
| Additional Model Specifications | Style: Console console cabinet's interior has room to accommodate a rotary vane vacuum pump (not included)
Collector: Removes 4 liters of water in 24 hours Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 86 L/Min. or larger displacement |
Labconco - FreeZone Plus 6 Liter Cascade Console
[+] View Model Specifications| Depth | 28 in |
| Height | 36.3 in |
| Width | 32.2 in |
| Power Requirements | 115 volts, 60 Hz, 16 A |
| Orientation | Floor Standing |
| Weight | 254 lbs |
| Part Number | 7753020 |
| Refrigeration | two 1/3 hp CFC-free refrigeration systems |
| Collector Temperature | -58 °F |
| Construction | Brushed stainless steel and epoxy-coated steel exterior |
| Ice Holding Capacity | 6 L |
| Additional Model Specifications | Style: Compact console cabinet's interior has room to accommodate a rotary vane vacuum pump (not included)
Conformance: CAN/CSA C22.2, UL Collector: Removes 4.1 liters of water in 24 hours Drying Accessory: Drying accessory required but not included Vacuum Pump Required: 98 L/Min or larger displacement Optional: - Teflon-coated collector - Purge valve - Mini chamber |
