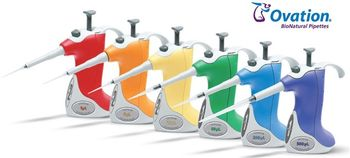

VistaLab Technologies - Ovation - Fixed Volume
Manufactured by VistaLab Technologies
Both single stroke and two stroke (overblow) models are available in a number of volume increments ranging from 1μL to 1000μL.
Fixed volume models are the ideal ergonomic choice for settings where pipetting volumes never deviate from an exact protocol. Both single stroke and two stroke (overblow) models are available in a number of volume increments ranging from 1μL to 1000μL. In addition, custom units at other volume settings are available upon request. A Starter Pack that includes 4 pipettes, a pipette stand and tips is also available at a special discount price.
Active Questions & AnswersAsk a Question
There are no current Discussions
Pipettes Service ProvidersView All (10)
Documents & ManualsView All Documents
Features of Ovation - Fixed Volume
Tip Acquisition The user inserts the pipette’s nozzle into a tip and lightly presses down until an audible "click" is heard. No excessive force or jamming is required to ensure a good seal.
Aspirating & Dispensing A very low-force, form-fitting plunger allows the user to manually control the speed of aspirating and dispensing with minimal contact or thumb effort.
Liquid Blocking Disposable Nozzle Not every pipetting task requires a filtered tip, but every pipette should be protected from contamination no matter what the task. Ovation comes with a filtered nozzle that won’t let liquid into the body of the device.
Tip Ejection A low-force energy release button activates Ovation’s tip ejector. A gentle push is all that’s needed, ensuring that the forces needed to discard a tip are well below threshold levels recommended by ergonomists.
General Specifications
There are no General Specifications available.
Series Modals
VistaLab Technologies - 1 µL
[+] View Model Specifications| Maximum Dispensing Volume | 1 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 1 µL |
| Pipette Accuracy | ±2.7% |
| Pipette Precision | 1.80% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Red |
VistaLab Technologies - 10 µL
[+] View Model Specifications| Maximum Dispensing Volume | 10 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 10 µL |
| Pipette Accuracy | ±1.5% |
| Pipette Precision | 0.50% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Orange |
VistaLab Technologies - 100 µL
[+] View Model Specifications| Maximum Dispensing Volume | 100 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 100 µL |
| Pipette Accuracy | ±0.8% |
| Pipette Precision | 0.15% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Green |
VistaLab Technologies - 1000 µL
[+] View Model Specifications| Maximum Dispensing Volume | 1000 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 1000 µL |
| Pipette Accuracy | ±0.8% |
| Pipette Precision | 0.15% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Purple |
VistaLab Technologies - 2 µL
[+] View Model Specifications| Maximum Dispensing Volume | 2 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 2 µL |
| Pipette Accuracy | ±1.5% |
| Pipette Precision | 0.90% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Red |
VistaLab Technologies - 20 µL
[+] View Model Specifications| Maximum Dispensing Volume | 20 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 20 µL |
| Pipette Accuracy | ±1.0% |
| Pipette Precision | 0.30% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Yellow |
VistaLab Technologies - 200 µL
[+] View Model Specifications| Maximum Dispensing Volume | 200 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 200 µL |
| Pipette Accuracy | ±0.8% |
| Pipette Precision | 0.15% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Blue |
VistaLab Technologies - 25 µL
[+] View Model Specifications| Maximum Dispensing Volume | 25 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 25 µL |
| Pipette Accuracy | ±1.4% |
| Pipette Precision | 0.60% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Green |
VistaLab Technologies - 250 µL
[+] View Model Specifications| Maximum Dispensing Volume | 250 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 250 µL |
| Pipette Accuracy | ±1.2% |
| Pipette Precision | 0.30% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Purple |
VistaLab Technologies - 300 µL
[+] View Model Specifications| Maximum Dispensing Volume | 300 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 300 µL |
| Pipette Accuracy | ±1.0% |
| Pipette Precision | 0.25% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Purple |
VistaLab Technologies - 5 µL
[+] View Model Specifications| Maximum Dispensing Volume | 5 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 5 µL |
| Pipette Accuracy | ±1.5% |
| Pipette Precision | 0.60% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Orange |
VistaLab Technologies - 50 µL
[+] View Model Specifications| Maximum Dispensing Volume | 50 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 50 µL |
| Pipette Accuracy | ±0.8% |
| Pipette Precision | 0.24% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Green |
VistaLab Technologies - 500 µL
[+] View Model Specifications| Maximum Dispensing Volume | 500 μL |
| Channel(s) | 1 |
| Dispensing Volume Range** | 500 µL |
| Pipette Accuracy | ±0.8% |
| Pipette Precision | 0.20% |
| Pipette Type | Manual Air Displacement |
| Pipette Volume Type | Fixed |
| Additional Model Specifications | Colour: Purple |
