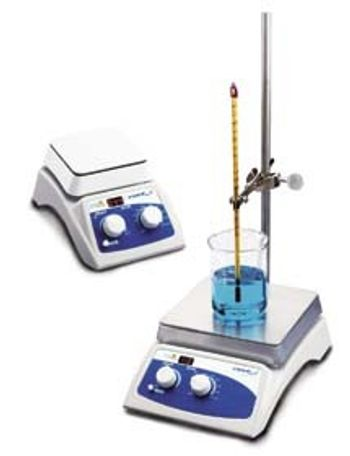

VWR - 700 Series Advanced Hot Plate/Stirrers
Manufactured by VWR
Designed for general laboratory heating and stirring applications.
Designed for general laboratory heating applications. Low-profile design conserves space and fits easily into most fume hoods. The front panel features easy-to-use controls that allow users to dial-in adjustments. Spill-resistant housing channels fluids away from the internal components. On the rear of the unit is a built-in support rod holder with locking knob.
Microprocessor control regulates heat and brings samples to desired temperature quickly and accurately. Easy-to-read LED display shows set point temperature and provides repeatable and accurate results. For additional safety, a warning light is illuminated when heat is turned on. The warning light remains on until the top plate cools down. The overshoot protection function will automatically shut the unit down if the set temperature is exceeded by 10°C, or if the stirrer motor stops or fails. Built-in memory allows users to recall the last set temperature even after the unit has been turned off. A powerful, continuous-duty motor and magnet deliver dependable and reliable stirring for a long service life.
Choose from models with a ceramic or aluminum top plate. Ceramic top plates feature an easy-to-clean, chemical-resistant, reflective white surface. Durable aluminum top plates provide a more even heating surface and will not crack or chip.
Microprocessor control regulates heat and brings samples to desired temperature quickly and accurately. Easy-to-read LED display shows set point temperature and provides repeatable and accurate results. For additional safety, a warning light is illuminated when heat is turned on. The warning light remains on until the top plate cools down. The overshoot protection function will automatically shut the unit down if the set temperature is exceeded by 10°C, or if the stirrer motor stops or fails. Built-in memory allows users to recall the last set temperature even after the unit has been turned off. A powerful, continuous-duty motor and magnet deliver dependable and reliable stirring for a long service life.
Choose from models with a ceramic or aluminum top plate. Ceramic top plates feature an easy-to-clean, chemical-resistant, reflective white surface. Durable aluminum top plates provide a more even heating surface and will not crack or chip.
Active Questions & AnswersAsk a Question
1Replies
price quote
Magnetic Stirrers Service ProvidersView All (3)
Documents & ManualsView All Documents
Features of 700 Series Advanced Hot Plate/Stirrers
- Ceramic or Aluminum Top Plate
- LED Display
- Microprocessor Control
- Overshoot Protection
- Built-In Memory Recalls Last Set Temperature
- VWR Two-Year Limited Parts and Labor Warranty
- UL and C-UL listed
- CE marked
General Specifications
There are no General Specifications available.
Series Modals
VWR - 10 x 10 in. Aluminum
[+] View Model Specifications| Depth | 15.25 in |
| Magnetic Stirrer Type | Hot Plate Stirrer |
| Height | 3.4 in |
| Maximum Stirring Quantity | 6000 ml |
| Maximum Stirring Speed | 1200 rpm |
| Plate Depth | 10 in |
| Plate Width | 10 in |
| Stirring Position | Single Position |
| Width | 11.6 in |
| Maximum Temperature | 400 °C |
| Power Requirements | 120 V, 50/60 Hz, 8.75 A, 1050 W or 230 V, 50/60 Hz, 4.6 A, 1050 W |
| Stirring Speed Range | 60 to 1200 rpm |
| Shipping Weight | 14.6 lbs |
| Construction | Aluminum hot plate |
| Additional Model Specifications |
VWR - 10 x 10 in. Ceramic
[+] View Model Specifications| Depth | 15.25 in |
| Magnetic Stirrer Type | Hot Plate Stirrer |
| Height | 3.4 in |
| Maximum Stirring Quantity | 6000 ml |
| Maximum Stirring Speed | 1600 |
| Plate Depth | 10 in |
| Plate Width | 10 in |
| Stirring Position | Single Position |
| Width | 11.6 in |
| Maximum Temperature | 500 °C |
| Power Requirements | 120 V, 50/60 Hz, 8.75 A, 1050 W or 230 V, 50/60 Hz, 4.6 A, 1050 W |
| Stirring Speed Range | 60 to 1600 rpm |
| Shipping Weight | 14.6 lbs |
| Construction | Ceramic top plate |
| Additional Model Specifications |
VWR - 4 x 4 in. Aluminum
[+] View Model Specifications| Depth | 9 in |
| Magnetic Stirrer Type | Hot Plate Stirrer |
| Height | 3.4 in |
| Maximum Stirring Quantity | 600 ml |
| Maximum Stirring Speed | 1600 rpm |
| Plate Depth | 4 in |
| Plate Width | 4 in |
| Stirring Position | Single Position |
| Width | 6 in |
| Maximum Temperature | 400 °C |
| Power Requirements | 120 V, 50/60 Hz, 2 A, 250 W or 230 V, 50/60 Hz, 1.1 A, 250 W |
| Stirring Speed Range | 60 to 1600 rpm |
| Shipping Weight | 5.6 lbs |
| Construction | Aluminum top plate |
| Additional Model Specifications |
VWR - 4 x 4 in. Ceramic
[+] View Model Specifications| Depth | 9 in |
| Magnetic Stirrer Type | Hot Plate Stirrer |
| Height | 3.4 in |
| Maximum Stirring Quantity | 600 ml |
| Maximum Stirring Speed | 1600 rpm |
| Plate Depth | 4 in |
| Plate Width | 4 in |
| Stirring Position | Single Position |
| Width | 6 in |
| Maximum Temperature | 500 °C |
| Power Requirements | 120 V, 50/60 Hz, 2 A, 240 W or 230 V, 50/60 Hz, 1 A, 240 W |
| Stirring Speed Range | 60 to 1600 rpm |
| Shipping Weight | 5.6 lbs |
| Construction | Ceramic top plate |
| Additional Model Specifications |
VWR - 7 x 7 in. Aluminum
[+] View Model Specifications| Depth | 12.25 in |
| Magnetic Stirrer Type | Hot Plate Stirrer |
| Height | 3.4 in |
| Maximum Stirring Quantity | 2500 ml |
| Maximum Stirring Speed | 1600 rpm |
| Plate Depth | 7 in |
| Plate Width | 7 in |
| Stirring Position | Single Position |
| Width | 8.6 in |
| Maximum Temperature | 400 °C |
| Power Requirements | 120 V, 50/60 Hz, 5.4 A, 650 W or 230 V, 50/60 Hz, 2.8 A, 650 W |
| Stirring Speed Range | 60 to 1600 rpm |
| Shipping Weight | 8.7 lbs |
| Construction | Aluminum top plate |
| Additional Model Specifications |
VWR - 7 x 7 in. Ceramic
[+] View Model Specifications| Depth | 12.25 in |
| Magnetic Stirrer Type | Hot Plate Stirrer |
| Height | 3.4 in |
| Maximum Stirring Quantity | 2500 ml |
| Maximum Stirring Speed | 1600 rpm |
| Plate Depth | 7 in |
| Plate Width | 7 in |
| Stirring Position | Single Position |
| Width | 8.6 in |
| Maximum Temperature | 500 °C |
| Power Requirements | 120 V, 50/60 Hz, 7.5 A, 900 W or 230 V, 50/60 Hz, 3.9 A, 900 W |
| Stirring Speed Range | 60 to 1600 rpm |
| Shipping Weight | 8.7 lbs |
| Construction | Ceramic top plate |
| Additional Model Specifications |
