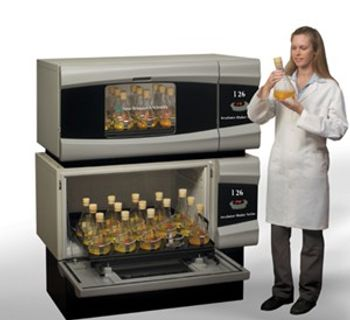

New Brunswick Scientific - I 26 Series
Manufactured by New Brunswick Scientific
Space-Saving, Stackable Incubator Shakers that offer excellent performance, value priced.
New Brunswick Scientific now offers two new space-saving incubator shakers. Based on the design concepts of the industry leading Innova® Shaker Series, the new I 26 and refrigerated I 26R offer excellent performance, value priced.
These advanced shakers feature NBS' Innova Triple-Eccentric Drive for dependable operation under even the most extreme conditions. Each I 26 shaker is independently controlled, so you can vary temperature, speed and agitation. Heavy-duty construction ensures that units can be safely stacked without vibration.
These advanced shakers feature NBS' Innova Triple-Eccentric Drive for dependable operation under even the most extreme conditions. Each I 26 shaker is independently controlled, so you can vary temperature, speed and agitation. Heavy-duty construction ensures that units can be safely stacked without vibration.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Asked byLeadFacilitiesMechanic
Shakers Service ProvidersView All (14)
Documents & ManualsView All Documents
Features of I 26 Series
- Dynamic Speed and Temperature Range for culturing shear-sensitive cells as well as robust bacterial cultures. Temperature from 5°C above ambient to 60°C for I 26 and from 15°C below ambient for I 26R. Speed 25 to 400 RPM with a 1” (2.5 cm) diameter orbit.
- Microprocessor Control to Regulate Speed, Temperature and Running Time. Timer can be set up to 99.9 hours or operate continuously.
- Audible and Visual Alarms alert user of setpoint deviations. Audible alarm may be muted.
- User-Friendly Keypad with Large Display. Easy to enter setpoints and view operating conditions. Display is clearly visible from all angles, across the room and in all lighting conditions.
- Smooth and Quiet Running for a more favorable work environment.
- Cool-Running Brushless Motors never require lubrication and provide years of long life.
- Large (18” x 30”) Interchangeable Accessory Platforms slide out easily while accommodating a wide range of accessories and flasks up to 2.8 liters.
- Powerful Fan and Heater provide rapid heat up and temperature recovery after door opening.
- RS-232 Interface for Data Logging directly to your PC.
- Sub Platform Protects Components by deflecting liquid from accidental spills.
- Comprehensive Warranty - Two years on parts and labor.
- Celtus Certified - Meets CSA, UL and CE standards.
General Specifications
There are no General Specifications available.
Series Modals
New Brunswick Scientific - I 26
[+] View Model Specifications| Depth | 30 in |
| Temperature Uniformity | 0.25 °C |
| Height | 27 in |
| Internal Depth | 25 in |
| Plate Depth | 18 in |
| Internal Height | 14 in |
| Maximum Shaking Speed | 400 rpm |
| Plate Width | 30 in |
| Timer | Programmable shaking periods from 0.1 hr. to 99.9 hrs. Triggers audible alarm and energizes status light at end of period. Can be deactivated for continuous operation. |
| Width | 50 in |
| Internal Width | 34 in |
| Maximum Temperature | 60 °C |
| Power Requirements | 120V, 60 Hz. 15 Amp |
| Weight | 370 lbs |
| Controls | Digital |
| Motor | Triple-eccentric counterbalanced drive in cast-iron housing with solid-state brushless D.C. motor |
| Shaking Speed | 25 to 400 rpm with 1 |
| Shipping Weight | 470 lbs |
| Shaker Type | Incubating Shaker |
| Additional Model Specifications | Shaking Indication: Digital LED electronic display in 1 rpm increments. Character height: 9/16" (1.4 cm)
Temperature Control: PI microprocessor feedback regulation, ± 0.1°C in 30°C to 40°C range, and ± 0.5°C for the remaining range. Temperature Indication: Digital LED display in 0.1°C increments. Character height 9/16" (1.4 cm) Heaters: Low-watt density, resistance-type heaters with high-temperature safety thermostat cut off Alarms: Audible and visible signals indicate when speed deviates more than 5 rpm, temperature more than 1°C from setpoint, and when timer operation has expired LED display: Indicates speed, temperature, running time and alarm conditions Safety: Shaker stops when excess vibration is detected or when door is opened Heater shuts off when high-temperature limit is exceeded Setpoint Retention: Setpoints and operating status retained in non-volatile memory. Automatic restart after power is restored (indicated by flashing display) Door: Large viewing window, 13.5" x 17.5" (34.3 x 44.5 cm) allows for easy viewing of cultures Door swings down and supports platform. Open door adds 19.5" (49.5 cm) to depth Stacking Shakers: Up to 3 shakers can be stacked using accessory stacking kit(s). One kit for 2 units; two kits for 3 units |
New Brunswick Scientific - I 26R
[+] View Model Specifications| Depth | 30 in |
| Height | 27 in |
| Internal Depth | 25 in |
| Plate Depth | 18 in |
| Internal Height | 14 in |
| Maximum Shaking Speed | 400 rpm |
| Plate Width | 30 in |
| Timer | Programmable shaking periods from 0.1 hr. to 99.9 hrs. Triggers audible alarm and energizes status light at end of period. Can be deactivated for continuous operation. |
| Width | 50 in |
| Internal Width | 34 in |
| Maximum Temperature | 60 °C |
| Power Requirements | 120V, 60 Hz. 15 Amp |
| Weight | 400 lbs |
| Controls | Digital |
| Motor | Triple-eccentric counterbalanced drive in cast-iron housing with solid-state brushless D.C. motor |
| Shaking Speed | 25 to 400 rpm with 1 |
| Shipping Weight | 500 lbs |
| Shaker Type | Incubating Shaker |
| Additional Model Specifications | Shaking Indication: Digital LED electronic display in 1 rpm increments. Character height: 9/16" (1.4 cm)
Temperature Control: PI microprocessor feedback regulation, ± 0.1°C in 30°C to 40°C range, and ± 0.5°C for the remaining range. Temperature Indication: Digital LED display in 0.1°C increments. Character height 9/16" (1.4 cm) Heaters: Low-watt density, resistance-type heaters with high-temperature safety thermostat cut off Refrigeration: Hermetically-sealed compressor uses CFC-free refrigerant Alarms: Audible and visible signals indicate when speed deviates more than 5 rpm, temperature more than 1°C from setpoint, and when timer operation has expired LED display: Indicates speed, temperature, running time and alarm conditions Safety: Shaker stops when excess vibration is detected or when door is opened Heater shuts off when high-temperature limit is exceeded Setpoint Retention: Setpoints and operating status retained in non-volatile memory. Automatic restart after power is restored (indicated by flashing display) Door: Large viewing window, 13.5" x 17.5" (34.3 x 44.5 cm) allows for easy viewing of cultures Door swings down and supports platform. Open door adds 19.5" (49.5 cm) to depth Stacking Shakers: Up to 3 shakers can be stacked using accessory stacking kit(s). One kit for 2 units; two kits for 3 units |
