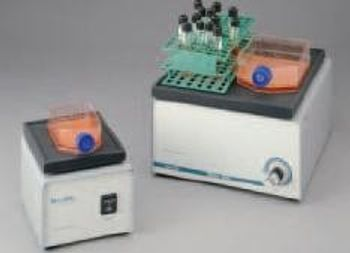

Thermolyne - Rotomix™ Fixed Speed
Manufactured by Thermolyne
Economical Slow Speed Orbital Shakers!
Designed for long term uniform mixing. Choose fixed shaker speed range: 60, 100, or 200rpm. Space saving design uses only a small amount of bench space. Holds slides, tissue culture dishes, flasks and test tube racks.
Active Questions & AnswersAsk a Question
There are no current Discussions
Shakers Service ProvidersView All (14)
Documents & ManualsView All Documents
Features of Rotomix™ Fixed Speed
- Provides a uniform fixed speed rotation platform for latex agglutination diagnostic testing and research mixing procedures.
- Compact 5" x 6" (12 x 15 cm) rubber platform accommodates printed well slides, flasks and small test tube racks.
- Constant-speed, continuous—duty motor is available at a constant 60 rpm or 100 rpm (±5 rpm), and a 0.78" (2 cm) diameter orbital motion.
- Units operate in temperature ranges of 17 to 27°C.
Large Platform Fixed Speed Shaker with Timer
- Large 10.6" x 12.6" (27 x 32 cm) platform provides thorough and consistent 200 rpm (±5 rpm) test tube rack agitation of radioimmunoassay specimens. Also mixes blood culture bottles in a 37°C environment.
- Timing indicator with numerical indications at the half-hour and one-hour mark. Allows for precise setting of mixing procedures up to two hours.
- Unit can be used continuously when timing isn’t necessary by setting timing indicator in the hold position.
- Units operate in temperature ranges of 4 to 37°C.
General Specifications
There are no General Specifications available.
Series Modals
Thermolyne - M48200
[+] View Model Specifications| Depth | 7.5 in |
| Maximum Load | 3 lbs |
| Height | 5.3 in |
| Plate Depth | 6 in |
| Maximum Shaking Speed | 100 rpm |
| Plate Width | 5 in |
| Width | 6.3 in |
| Power Requirements | 120/240 V, 50/60 Hz, 0.3/0.15 A |
| Orbital Diameter | 0.78 in |
| Controls | Analog |
| Shaking Speed | 60 or 100 rpm |
| Shipping Weight | 6.5 lbs |
| Shaker Type | Orbital shaker |
| Additional Model Specifications |
Thermolyne - M51300
[+] View Model Specifications| Depth | 14 in |
| Maximum Load | 10 lbs |
| Height | 11.25 in |
| Plate Depth | 12.6 in |
| Maximum Shaking Speed | 200 rpm |
| Plate Width | 10.6 in |
| Timer | Continuous 0 to 2 hrs. |
| Width | 11.3 in |
| Power Requirements | 120/240 V, 50/60 Hz, 0.6/0.3 A |
| Controls | Analog |
| Shaking Speed | 200 rpm, fixed |
| Shipping Weight | 17 lbs |
| Shaker Type | Orbital shaker |
| Additional Model Specifications |
