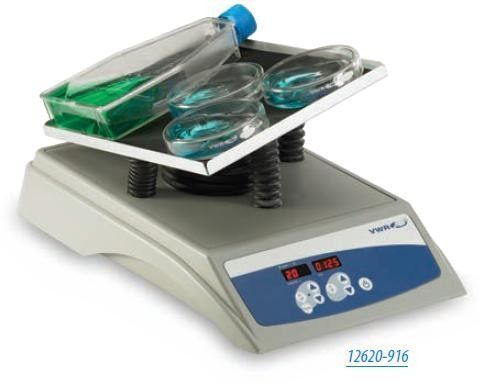

VWR - Signature 3-D Rotator Waver
Manufactured by VWR
3D wave motion; ideal for blood samples, DNA extractions, blotting techniques, and general mixing of various size tubes.
Precise speed control provides smooth, low foaming, three dimensional "wave" motion from 1 to 30rpm. Ideal for blood samples, DNA extractions, blotting techniques, and general mixing of various size tubes. Designed for use in incubators, CO2 incubators, cold rooms (–10 to 60°C), 80% relative humidity, non-condensing environments. Microprocessor controls with LED displays provide accurate and repeatable results. Spill-resistant design channels fluids away from internal components. Base is constructed of durable aluminum for extra stability.
Microprocessor touch pad provides electronic angle adjustment which allows users to adjust rocking angle while unit is operating. Precise speed control provides smooth, low-speed rocking motion down to 1rpm. For improved repeatability, onboard memory recalls last settings even when unit is turned off.
Audible and visual signals will activate when system detects an overloaded, unbalanced condition or obstruction of the tray. LED display will show elapsed time or, when programmed to user-defined limit, will count down to zero and shut off unit. Audible alarm will sound when time reaches zero. Optional alarm mute can be set from the touch pad control. Powerful, maintenance-free stepper motor handles heavy loads up to 2.3kg (5lbs.) and provides a long service life. Optional stacking tray attaches to platform for higher capacity applications.
Microprocessor touch pad provides electronic angle adjustment which allows users to adjust rocking angle while unit is operating. Precise speed control provides smooth, low-speed rocking motion down to 1rpm. For improved repeatability, onboard memory recalls last settings even when unit is turned off.
Audible and visual signals will activate when system detects an overloaded, unbalanced condition or obstruction of the tray. LED display will show elapsed time or, when programmed to user-defined limit, will count down to zero and shut off unit. Audible alarm will sound when time reaches zero. Optional alarm mute can be set from the touch pad control. Powerful, maintenance-free stepper motor handles heavy loads up to 2.3kg (5lbs.) and provides a long service life. Optional stacking tray attaches to platform for higher capacity applications.
Active Questions & AnswersAsk a Question
There are no current Discussions
Shakers Service ProvidersView All (14)
Documents & ManualsView All Documents
Features of Signature 3-D Rotator Waver
- Vertical and Horizontal Orbital Motion
- Digital Display for Speed, Tilt Angle, and Time
- Microprocessor Control
- Timer with Audible Alarm
- VWR Two-Year Limited Warranty
- Low profile design: Takes up less space and easily fits into most fume hoods and incubators. Cast aluminum base offers durability and added stability.
General Specifications
| Depth | 17 in |
| Maximum Load | 5 lbs |
| Height | 4 in |
| Plate Depth | 11.75 in |
| Maximum Shaking Speed | 30 rpm |
| Plate Width | 8.75 in |
| Timer | 1 second to 9999 minutes |
| Width | 11 in |
| Power Requirements | 120/230 V, 50/60 Hz, 5 A, 25 W |
| Controls | Digital |
| Motor | Triple eccentric drive: Permanently lubricated ball bearings and maintenance free, brushless DC motor provide reliable service and continuous duty operation. |
| Shaking Speed | 1 to 30 rpm |
| Shipping Weight | 16 lbs |
| Temperature Accuracy | 1 °C |
| Construction | Cast aluminum base offers durability and added stability. |
| Shaker Type | Orbital shaker |
Additional Specifications
Tilt angle: 1 to 20°
