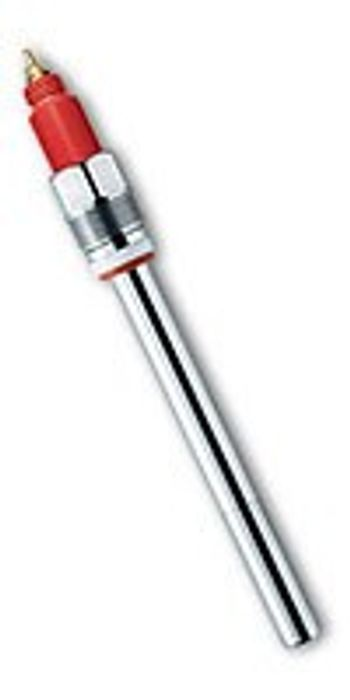

METTLER TOLEDO - InPro6900i
Manufactured by METTLER TOLEDO
Accuracy at low oxygen level.
Accuracy at low oxygen level.
METTLER TOLEDO’s InPro6900i is the intelligent counterpart for the InPro6900, the proven standard especially in food and beverage applications for low oxygen concentrations. The special electrode design with guard ring around the cathode together with the larger surface of the cathode allows for measurement down to 1ppb dissolved oxygen.
Thanks to the integrated ISM technology with Plug and Measure capability makes installation much easier and offers new possibilities for maintenance planning thanks automated self diagnosis and asset management. Together with the iSense Asset Suite always one step ahead.
METTLER TOLEDO’s InPro6900i is the intelligent counterpart for the InPro6900, the proven standard especially in food and beverage applications for low oxygen concentrations. The special electrode design with guard ring around the cathode together with the larger surface of the cathode allows for measurement down to 1ppb dissolved oxygen.
Thanks to the integrated ISM technology with Plug and Measure capability makes installation much easier and offers new possibilities for maintenance planning thanks automated self diagnosis and asset management. Together with the iSense Asset Suite always one step ahead.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & ManualsView All Documents
Features of InPro6900i
As with all oxygen sensors from METTLER TOLEDO also the ISM sensors fulfill highest requirements for hygienic design in compliance with EHEDG and 3-A standards. The proven maintenance concept with membrane body and replaceable inner body is continued with all i-type sensors.
- Permanent sensor monitoring with ISM technology reduces the risk sensor failures. Predictive maintenance
- The enhanced diagnostics allows for better maintenance planning "as few as possible, as often as necessary". High process safety
- FDA compliant materials of construction and easy-to-clean high-polished surface (N5 grade) to satisfy increasing regulatory requirements. Reduced service time down to just 5 minutes
- Thanks to the easy-to-replace membrane body and quick-disconnect interior body. Long sensor lifetime
- Durable and rugged sensor design for increased resistance to harsh environments. Installation in hazardous zones
- ATEX certificate: II 1/2GD Ex ia IIC T6/T5/T4/T3, IP6X T 69 °C / T 81 °C / T 109 °C / T 161 °C, SNCH 01 ATEX 3277X; FM approval: IS / I, II, III /1/ ABCDEFG / T6 Ta=60 °C - 53 800 002; Entity.
General Specifications
There are no General Specifications available.
Additional Specifications
Short description: Sterile/hygieic process for low oxygen level
Accuracy: 1 % or 1 ppb
Detection limit: 1 ppb
Sterilizable: yes
Autoclavable: no
Material in contact with medium: stainless steel (AISI316L) with 3.1B certificates
Mechanical pressure resistance: max. 12 bar (174 psi) absolute
ISM: yes
ATEX Certification:II 1/2GD Ex ia IIC T6/T5/T4/T3, IP6X T 69 °C / T 81 °C / T 109 °C / T 161 °C, SNCH 01 ATEX 3277X
FM approval: IS / I, II, III /1/ ABCDEFG / T6 Ta=60 °C - 53 800 002; Entity
Connector: VP
Insertion length: for 12 mm: 70, 120, 220 mm (2.8", 4.7", 8.7")
