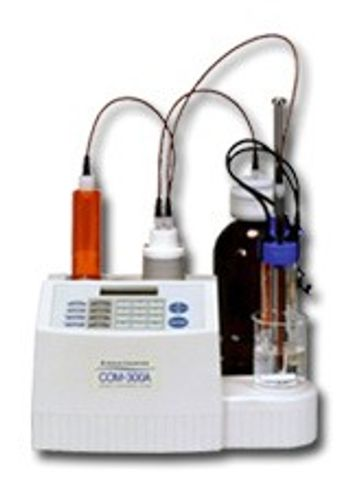

AQUACOUNTER - COM-300A
No Documents
The Total Solution for All Your Titration Needs...
Active Questions & AnswersAsk a Question
Calibration
Titrators Service ProvidersView All (5)
Documents & Manuals
There are no Documents or Manuals available.
Features of COM-300A
-
COMPACT!
- All components are integrated in a small footprint of 31 cm (W) x 27 cm (D).
- Saves valuable bench space. FLEXIBLE!
- Performs acid/base, redox, precipitation and complexometric titrations.
- Combining optional KF kit, performs Karl Fischer moisture determination.
- A wide selection of electrodes POWERFUL!
- 30 user defined methods plus 3 KF methods can be stored in memory and easily recalled according to samples.
- Up to 50 results with titration curve can be stored with statistics calculation. SATISFACTION!
- Equipped with two RS-232C ports for balance and computer connection.
- Standard package includes AQUANet data download software, instruction movie, application guidebook and more.
General Specifications
| Depth | 270 mm |
| mV Range | -2000 to 2000 |
| Height | 310 mm |
| mV Resolution | 0.1 mV |
| pH Range | 0 to 14 |
| Width | 310 mm |
| pH Resolution | 0.01 pH |
| Weight | 7 kg |
| Titrator Type | Potentiometric |
Additional Specifications
Electrode Inputs: Indicator electrode: 1
Reference electrode: 1
Thermistor electrode: 1
KF electrode: 1
Titration steps: Up to three(3) steps
Number of Endpoints: Up to two(2) points
End point detection: Automatic detection by:
-Inflection point
-Set point
-F Cross point
-B Cross point
Display screen: 2-lines by 16 digits with backlit LCD
Display unit: pH, mV, mgH2O, %, ppm, M, g/L, mg/g, Fact1, Fact2
pH calibration: 2 or 3 points (compliant to ASTM or other standard buffers)
File function: 30 files for potentiometric titrations
3 files for Karl-Fischer titrations
10 files for titration control methods
Calculation function: Concentration calculation, Statistics calculation
Memory data capacity: 50 titration results along with titration curves and parameters and via external computer
Precautions against power failure: Built-in backup battery
Electrodes (Standard component): GE-101B Glass electrode
· RE-201 Reference electrode
· TE-401 Thermistor electrode
Buret: Capacity: 20 mL, Minimum drop size: 0.01mL
Reproducibility: within ±0.01 mL
Tubing: Teflon tube of 2 mm(ID) and 3 mm(OD)
Switching Valve: Automatic switching valve with ceramic joint.
Stirrer: Integrated, variable speed, magnetic stirrer
Printers: Optional thermal printer; PR-2000T2(PRINTY3), Optional impact printer; PR-302B(CBM-910-40PF)
External input / output: RS-232C; 2 ports
Port 1 (BALANCE):For connection to electronic balance.
Port 2 (HOST):For connection to external computer.
Power supply / Power consumption AC100 - 240 V, 50/60 Hz, 100 VA
Weight: Approx. 7 kg
