JM Science - AQL-2320
Manufactured by JM Science
No Documents

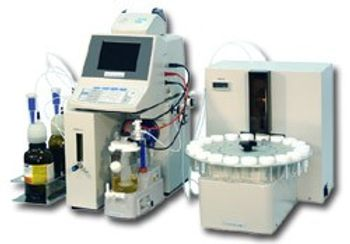

Automated Oil Evaporator System AQL-2320
The AQL-2320 is an automated KF Titrator System that requires the analyst to load the samples into the glass vials and then place the glass vials on the sample tray of the system. The operator only needs to push the “start” button once to begin the analyses.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Titrators Service ProvidersView All (5)
Documents & Manuals
There are no Documents or Manuals available.
Features of AQL-2320
- Sample changer holds up to 20 vials.
- Equipped with Automatic KF reagent exchanging function.
- Wide temperature setting covers the full range of azeotropic points.
- Reduces costs for KF reagent and waste disposal.
- Can process large numbers of samples.
General Specifications
| Depth | 510 mm |
| Height | 390 mm |
| Width | 350 mm |
| Weight | 19 kg |
| Titrator Type | Karl Fischer Volumetric |
Additional Specifications
Number of sample vials: 20
Volume of sample vial: Up to 3mL
Seal:PTFE cap with PTFE septum
Carrier gas: Nitrogen gas
Carrier gas flow rate: 50 - 300mL/min
Carrier gas desiccant:Molecular Sieves
Heater, heating block material: Aluminum block heater
Heating range: Room temperature to 200°C
Power supply / Power consumption: AC100 - 240V, 50/60Hz, 150VA
Dimensions
Sample changer + heater unit: 350 (W) x 510 (D) x 390 (H) mm
Valve unit: 275 (W) x 440 (D) x 280 (H) mm
Weight
Sample changer + heater unit: Approx. 19kg Valve unit: Approx. 9kg
Safety Approval: CE Approved
