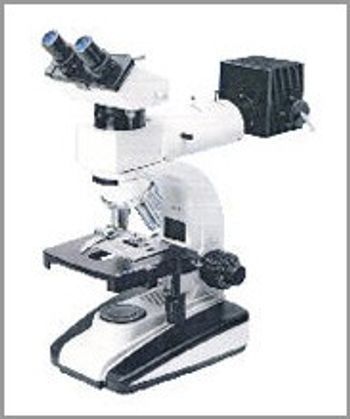

Prior Scientific - PriorLuxMET

Manufactured by  Prior Scientific
Follow this Equipment

The PriorLuxMET Incident Light Microscope features unbeatable optics corrected for viewing samples in reflected light...

The PriorLuxMET Incident Light Microscope features unbeatable optics corrected for viewing samples in reflected light applications such as metallurgy. These optics give some of the clearest, sharpest incident light images in its class. The PriorLuxMET is supplied complete with the accessories required to view samples in both brightfield and polarised light. The high quality infinity corrected optics ensure perfect images with the highest resolution at all times.
Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support
Features of PriorLuxMET

  • High Quality Optics
  • 18mm FOV Eyepieces
  • Monocular, Binocular or Trinocular Versions
  • Smooth & Precise Stage Controls
  • Low Mounted Co-Axial Coarse and Fine Focus Controls
  • 30W Halogen Illumination
  • Köhler Illumination
  • Reverse Facing Nosepiece Giving Easy Access to Specimen Area
  • High Quality Semi-Plan Metallurgical Objective Lenses
General Specifications
Depth 377 mm
Height405 mm
Width 195 mm
Weight8 kg
Microscope TypeUpright
Upright TypeMetallurgical
Additional Specifications

Optical system: Infinity Corrected optical system
Illumination: 12V 30W halogen bulb,m, 100-120V/220-240V ~ 0.85/0.45A 50/60Hz
Focusing: Stage height movement by roller guide (rack & pinion)
Tension adjustment on coarse focus adjustment
Revolving nosepiece: Fixed quadruple nosepiece with inward tilt
Viewing Head:
[i]Field number:[/i] 18
[i]Tube inclination:[/i] 30°
[i]Interpupillary distance adjustment range:[/i] 55mm – 75mm
Stage:
[i]Control:[/i] Ergonomic positive-drive coaxial XY stage control
[i]Size:[/i] 188 (W) x 145 (D) mm
[i]Movement Range:[/i] 75mm X direction, 55mm Y direction
[i]Specimen Holder:[/i] Accommodates 1 or 2 standard glass slides
High Quality Achromatic Objectives:
10 x: 0.25 NA
20 x: 0.40 NA
40 x: 0.65 NA
80 x: 0.85 NA
