Nor-Lake - Premier™ Glass Door Low Temperature Freezers -25ºC
Manufactured by Nor-Lake

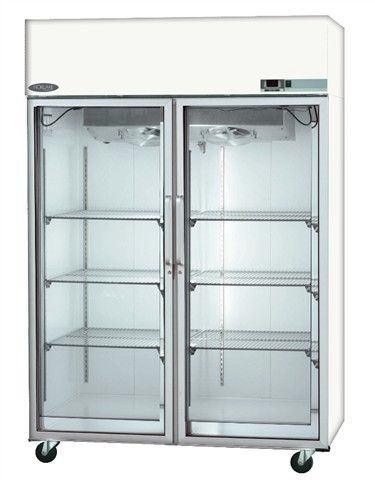

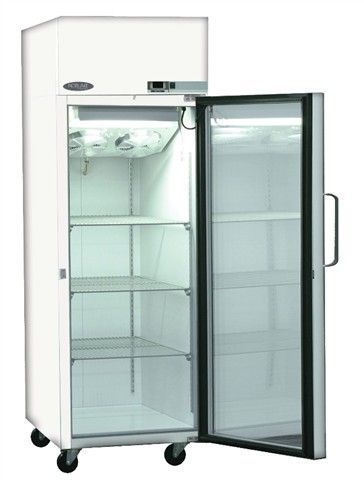

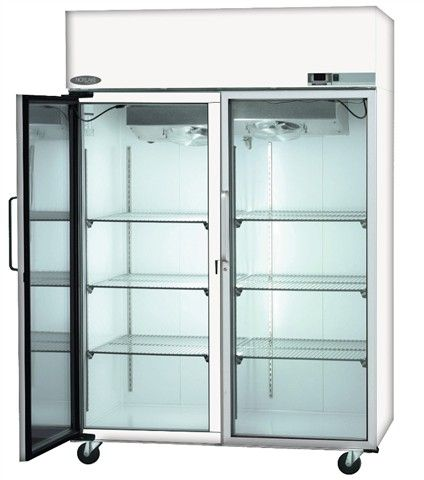

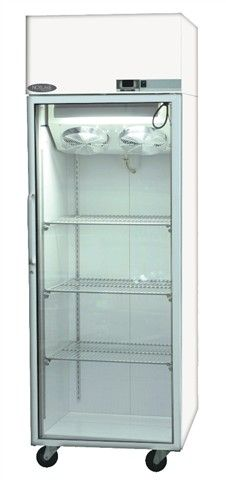

Premier Glass Door Low Temperature Freezer
Designed to meet the demanding requirements for scientific and laboratory research. Advanced engineered design incorporates the latest in cabinet, refrigeration, temperature control and monitoring features. Provides energy efficient, convenient, safe and reliable performance for optimal storage temperature environments necessary for a wide range of life science, pharmacy, biological, medical, clinical and industrial applications.
Active Questions & AnswersAsk a Question
There are no current Discussions
Freezers Service ProvidersView All (19)
Documents & ManualsView All Documents
Features of Premier™ Glass Door Low Temperature Freezers -25ºC
- Digital LED Microprocessor temperature controller with Hi/Lo audible and visual alarm
- Remote alarm contacts
- Adjustable temperature control range from -15°C to -25°C. Factory preset at -20°C
- Continuous product temperature display
- Product sensor with glycerin bottle
- Power supply switch
- Exterior cabinet front, sides and back are painted white
- Exterior cabinet top and bottom are galvanized steel
- Interior cabinet liner painted white
- Cabinet is foamed-in-place with CFC Free high density polyurethane foam insulation
- Glass door(s), full size, double pane, with anti-condensate heater wires
- Heavy duty door pivot hinges
- Centered key door locks (2 keys)
- Pull door handles(s)
- Four casters (2 locking)
- 3 epoxy coated wire shelves per door
- Perimeter anti-condensate door opening heater wires
- Magnetic door gasket
- Interior light, switch activated
- Air cooled condensing unit
- Top mounted forced air refrigeration system
- Automatic defrost and condensate evaporation
- Warranties: 18 month parts and labor, 5 year compressor (US and Canada) 18 months parts (International)
- UL/C-UL listed Optional features include:
- Legs in lieu of casters
- Stainless steel drawer (8 per door)
- Wire basket drawer (6 per door)
- Extra shelf
- Stainless steel exterior
- Stainless steel interior
- 4-20ma output
- Temperature chart recorder with chart paper
- Sensor access port 1” diameter
- Export crating
General Specifications
There are no General Specifications available.
Series Modals
Nor-Lake - NSXF211WWG/0
[+] View Model Specifications| Depth | 90 cm |
| Defrost Type | Automatic |
| Height | 207 cm |
| Internal Depth | 76 cm |
| Freezer Orientation | Upright |
| Internal Height | 149 cm |
| Width | 69 cm |
| Freezer Type | Low Temperature |
| Internal Width | 59 cm |
| Power Requirements | 115/1PH/60HZ |
| Minimum Temperature | -25 °C |
| Freezer Temperature Range | -15 to -25 °C |
| Number of Shelves | 3 |
| Shipping Weight | 181 kg |
| Freezer Capacity | 22.5 cu. ft. |
| Additional Model Specifications | Crated Height: 205 cm
Crated Width: 94 cm Crated Depth: 96 cm Shelf Area: 18.3 sq.ft. Number of Casters: 4 Condensing Unit Size: 1 Refrigerant: R-404A Cord & Plug Supplied: Yes Maximum Fuse Size: 20 Amp Total Amp Draw: 14.9 |
Nor-Lake - NSXF482WWG/0
[+] View Model Specifications| Depth | 90 cm |
| Defrost Type | Automatic |
| Height | 207 cm |
| Internal Depth | 76 cm |
| Freezer Orientation | Upright |
| Internal Height | 149 cm |
| Width | 139 cm |
| Freezer Type | Low Temperature |
| Internal Width | 129 cm |
| Power Requirements | 115/1PH/60HZ |
| Minimum Temperature | -25 °C |
| Freezer Temperature Range | -15 to -25 °C |
| Number of Shelves | 6 |
| Shipping Weight | 317 kg |
| Freezer Capacity | 48.8 cu. ft. |
| Additional Model Specifications | Crated Height: 210 cm
Crated Width: 149 cm Crated Depth: 96 cm Shelf Area: 39.7 sq.ft. (Includes Floor) Number of Casters: 4 Condensing Unit Size: 1 Refrigerant: R-404A Cord & Plug Supplied: Yes Maximum Fuse Size: 20 Amp Total Amp Draw: 13.7 |
