Nor-Lake - Premier™ Solid Door Laboratory and Pharmacy Freezers
Manufactured by Nor-Lake
Nor-Lake® Scientific Premier Laboratory and Pharmacy Freezers
Designed to meet the demanding requirements for scientific and laboratory research. Advanced engineered design incorporates the latest in cabinet, refrigeration, temperature control and monitoring features. Provides energy efficient, convenient, safe and reliable performance for optimal storage temperature environments necessary for a wide range of life science, pharmacy, biological, medical, clinical, and industrial applications.
Active Questions & AnswersAsk a Question
There are no current Discussions
Freezers Service ProvidersView All (19)
Documents & ManualsView All Documents
Features of Premier™ Solid Door Laboratory and Pharmacy Freezers
- Digital LED display microprocessor temperature controller
- Audible and visual Hi/Lo temperature alarm
- Adjustable control range from -10°C to -25°C factory preset at -25°C
- Remote alarm contacts
- Continuous product temperature display
- Product sensor with glycerin bottle
- Power supply switch
- Exterior cabinet front, sides and back are painted white
- Exterior cabinet top and bottom are galvanized steel
- Interior cabinet liner and interior door panel are painted white
- Cabinet and solid door are foamed-in-place with CFC Free high density polyurethane foam insulation
- Heavy duty solid door(s) with pivot hinges
- Full length pull door handle(s)
- Magnetic door gaskets
- Centered key door lock(s) (2 keys)
- Four casters on one and two door models (2 locking), Six casters (3 locking) on three door models
- 3 coated wire shelves per door section
- Perimeter anti-condensate door frame heater wires
- Interior light, switch activated
- Air cooled condensing unit
- Top mounted forced air refrigeration system
- Automatic defrost and condensate evaporation
- Warranties: 18 month parts and labor, 5 year compressor (US and Canada), 18 months parts (International)
- UL/CUL listed Optional Features:
- Extra shelf
- Stainless steel drawer (8 maximum per door)
- Wire basket drawer (6 maximum per door)
- Sensor access port 1” diameter Legs in lieu of casters
- Stainless steel interior
- Stainless steel exterior
- Reverse door hinge
- Temperature chart recorder with chart paper
- 4-20ma output
- Export crating
General Specifications
There are no General Specifications available.
Series Modals

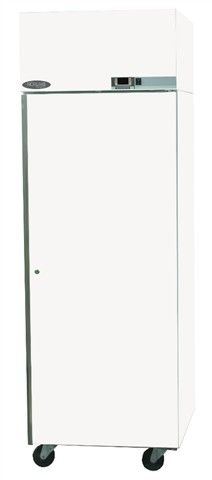

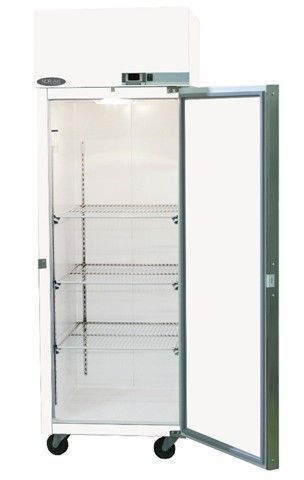

Nor-Lake - NSPF241WWW/0
[+] View Model Specifications| Depth | 88 cm |
| Height | 202 cm |
| Internal Depth | 76.2 cm |
| Freezer Orientation | Upright |
| Internal Height | 149.9 cm |
| Width | 69 cm |
| Internal Width | 59.7 cm |
| Power Requirements | NSPF241WWW/0: 115V, 1PH, 60HZ |
| Freezer Temperature Range | -10 to -25 °C |
| Number of Shelves | 3 |
| Shipping Weight | 170 kg |
| Freezer Capacity | 24 cu. ft. |
| Additional Model Specifications | Crated Height: 212 cm
Crated Width: 96 cm Crated Depth: 101 cm Shelf Area: 12.83 sq.ft. Number of Casters: 4 Condensing Unit Size: 1/2 Refrigerant: R-404A Maximum Fuse Size: 15 AMPS Total Amp Draw /0: 9.7 Total Amp Draw /5: 5.2 |
Nor-Lake - NSPF331WWW/0
[+] View Model Specifications| Depth | 91 cm |
| Height | 224 cm |
| Internal Depth | 78 cm |
| Freezer Orientation | Upright |
| Internal Height | 170 cm |
| Width | 80 cm |
| Internal Width | 70 cm |
| Power Requirements | NSPF331WWW/0: 115V, 1PH, 60HZ |
| Freezer Temperature Range | -10 to -25 °C |
| Number of Shelves | 3 |
| Shipping Weight | 199 kg |
| Freezer Capacity | 33.1 cu. ft. |
| Additional Model Specifications | Crated Height: 233 cm
Crated Width: 89 cm Crated Depth: 99 cm Shelf Area: 15.85 sq.ft. Number of Casters: 4 Condensing Unit Size: 1/2 Refrigerant: R-404A Maximum Fuse Size: 20 AMPS Total Amp Draw /0: 12.3 Total Amp Draw /5: 5.9 |

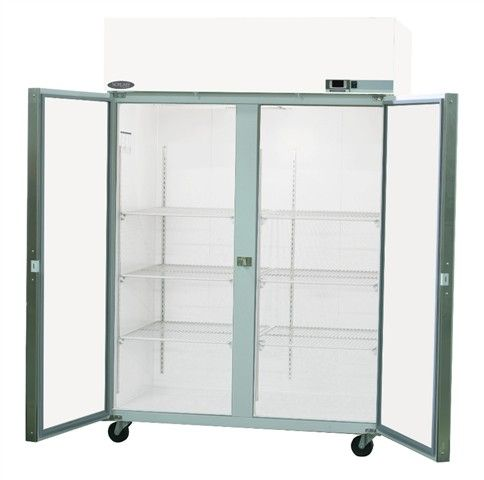

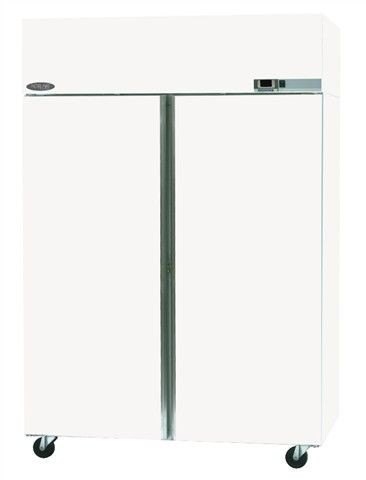

Nor-Lake - NSPF522WWW/0
[+] View Model Specifications| Depth | 88 cm |
| Height | 202 cm |
| Internal Depth | 76 cm |
| Freezer Orientation | Upright |
| Internal Height | 149 cm |
| Width | 139 cm |
| Internal Width | 129 cm |
| Power Requirements | NSPF522WWW/0: 115V, 1PH, 60HZ |
| Freezer Temperature Range | -10 to -25 °C |
| Number of Shelves | 6 |
| Shipping Weight | 268 kg |
| Freezer Capacity | 52 cu. ft. |
| Additional Model Specifications | Crated Height: 212 cm
Crated Width: 149 cm Crated Depth: 101 cm Shelf Area: 28.6 sq.ft. Number of Casters: 4 Condensing Unit Size: 3/4 Refrigerant: R-404A Maximum Fuse Size: 20 AMPS Total Amp Draw /0: 12.4 Total Amp Draw /5: 8.96 |

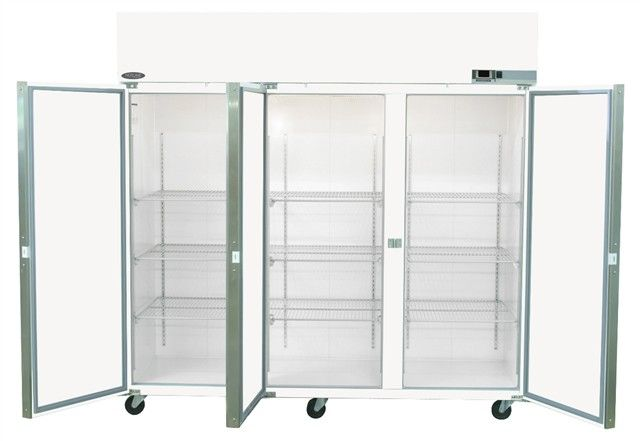

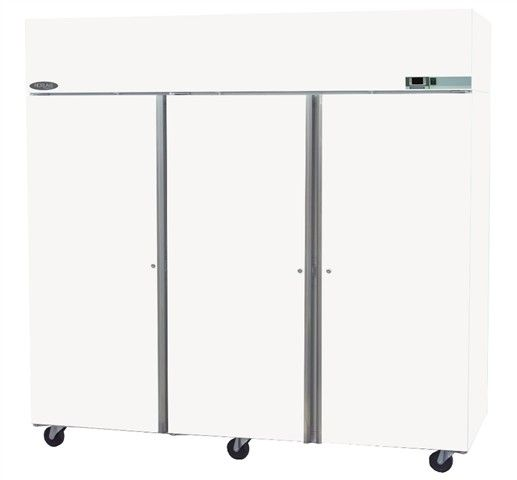

Nor-Lake - NSPF803WWW/0
[+] View Model Specifications| Depth | 88 cm |
| Height | 202 cm |
| Internal Depth | 76 cm |
| Freezer Orientation | Upright |
| Internal Height | 149 cm |
| Width | 209 cm |
| Internal Width | 199 cm |
| Power Requirements | NSPF803WWW/0: 115V, 1PH, 60HZ |
| Freezer Temperature Range | -10 to -25 °C |
| Number of Shelves | 9 |
| Shipping Weight | 365 kg |
| Freezer Capacity | 80 cu. ft. |
| Additional Model Specifications | Crated Height: 212 cm
Crated Width: 218 cm Crated Depth: 96 cm Shelf Area: 42.84 sq.ft. Number of Casters: 6 Condensing Unit Size: 1 Refrigerant: R-404A Maximum Fuse Size: 20 AMPS Total Amp Draw /0: 13.8 Total Amp Draw /5: 6.49 |
