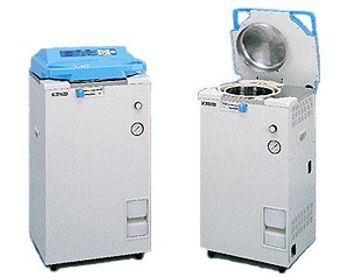

Amerex Instruments - HVE-50
No Documents
Self-contained, portable, top-loading autoclaves with auto exhaust and warming cycle.
- Space-saving design with lid opening upward.
- Agar sterilization mode for sterilizing agar and then automatically maintaining it at liquid temperature.
- Dual-sensing lid interlock prevents lid opening when chamber is pressurized or when temperature exceeds 97°C.
- Agar melting mode for melting agar and maintaining it at liquid temperature, or for a hot, faster start-up.
- One-touch lever to easily open and close chamber lid.
- In-process display shows the status and the progress of sterilization cycle.
- Door-closure sensor provides a prompt and the cycle will not start unless the door is closed properly.
- HVE-50 size: 50 liters, 11.8" diameter, 28.0" height.
Active Questions & AnswersAsk a Question
There are no current Discussions
Autoclaves Service ProvidersView All (24)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
| Depth | 20.8 in |
| Height | 40.9 in |
| Chamber Height | 28 in |
| Width | 20.1 in |
| Power Requirements | 120V, 50/60 Hz, single phase |
| Orientation | Floor Standing |
| Peak Power | 2000 W |
| Chamber Volume | 50 L |
| Weight | 180 lbs (shipping) |
| Internal Diameter | 11.8 in |
Additional Specifications
TEMPERATURE
Display Range: 5ºC to 137ºC
Warming Range: 45ºC to 60ºC
GAUGE PRESSURE
Operating Range (gauge): 3 to 30 psi (gauge), 0.021 to 0.21MPa
TIMER
Sterilization: 1 to 250 minutes
SAFETY DEVICES Dual-sensing lid interlock, over-pressure power cutoff, over-temperature power cutoff, low-water power cutoff, mechanical pressure relief valve, lid-closure detector, over-current detector and circuit breaker
PROGRAMS
1. For agar/liquids.
Also for melting agar,
or for faster start-up Heating -> Sterilization -> Auto steam exhaust or ambient cooling (programmable) -> Warming -> Completion
2. For liquids/solids Heating -> Sterilization -> Auto steam exhaust or ambient cooling (programmable) -> Completion
3. For solids Heating -> Sterilization -> Auto exhaust (fast) -> Completion
ACCESSORIES
Mesh wire baskets, buckets (pails), and test tube rack
