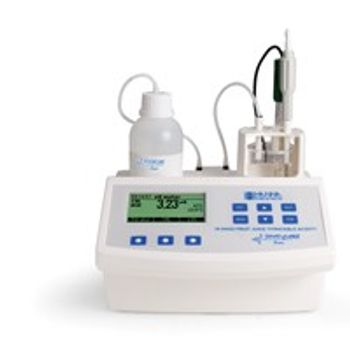

HANNA instruments - HI 84432

Manufactured by  HANNA instruments
Follow this Equipment

Titratable Acidity Mini Titrator & pH Meter for Fruit Juices

The HI 84432 is an easy to use microprocessor-based automatic minititrator and pH meter designed for the rapid and accurate analysis of Total Titratable Acidity in fruit juices. By eliminating subjective factors including color indicators, errors in mathematical calculations or erratic titrant additions from the measurement, the HI 84432 makes Total Titratable acidity analysis precisely. This will quickly become a valuable acidity analysis tool of fruit juices.

The instrument benefits from Hanna’s many years of experience as manufacturer of quality analytical instruments. A clear and well-designed user interface makes the instrument intuitive and simple to use. A dedicated HELP key aids in set-up, calibration, status and troubleshooting.
Active Questions & AnswersAsk a Question

There are no current Discussions

Titrators Service ProvidersView All (5)

Request Support
Features of HI 84432

  • Methodology used is based on the AOAC International accepted method for acidity determination.
  • Eliminates subjective factors
  • Built in magnetic stirrer and electrode, titrant and beaker holders.
  • Log on demand up to 100 samples (50) pH measurement; (50) titration
  • GLP feature to view last calibration data for pH electrode and pump.
  • Can measure in % of Citric, Malic and Tartaric acid.
  • PC interface via USB connection
  • Enhanced pH accuracy with 3 point calibration
  • Automatic pH temperature compensation
  • Automatic “anytime” help feature
  • Dot matrix backlit LCD with an intuitive user interface
General Specifications
pH Range-2 to 16
pH ResolutionSelectable
Power Requirements 12 Vdc adapter
Weight2200 g
Titrator TypeAcid/Base
Additional Specifications

Titrator
Titratable Acidity Range:
g/100 mL as citric acid : 0.20 – 8.00% CA
g/100 mL as tartaric acid : 0.23 – 9.30% TA
g/100 mL as malic acid : 0.21 – 8.30% MA
Titratable Acidity Resolution: 0.01%
Accuracy: 5% of reading ±0.05
Titration Method: Acid-base titration
Principle: End point titration: 8.20 pH
Pump Debit: 0.5 mL/min
Stirring Speed: 600 rpm
Log Data: Up to 50 samples

pH Meter
Accuracy: ±0.01 pH
Calibration: 1, 2 or 3 calibration points; 3 available buffers (4.01; 7.01; 8.20)
Temperature Compensation: manual or automatic from -20 to 120°C (-4 to 248°F)
Log Data: Up to 50 samples

Temperature
Range: -20.0 to 120.0°C (-4.0 to 248.0°F)
Resolution: 0.1°C
Accuracy: ±0.4°C without probe error

Electrode: HI 1131B (included)
Temperature Probe: HI 7662-M (included)
Environment: 0 to 50°C (32 to 122°F); max 95% RH non-condensing
Dimensions: 208 x 214 x 163 mm (8.2 x 8.4 x 6.4”) (with beaker)
