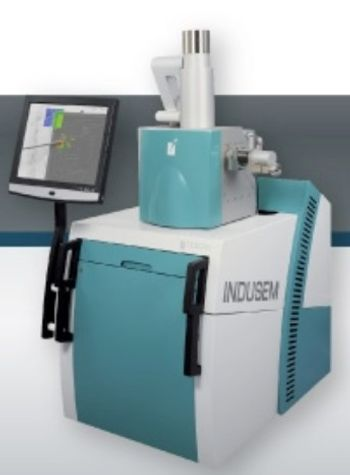

Tescan - INDUSEM

Manufactured by  Tescan
Follow this Equipment

Let the SEM Work for You

The INDUSEM is a new model of a scanning electron microscope intended for industrial applications. The system is based on a platform of the third generation of VEGA SEMs built-in a robust frame. This compact and transportable device equipped with an extra large chamber enables wide sample range for quality control and failure analysis within production plant.
Active Questions & AnswersAsk a Question

There are no current Discussions

Electron Microscopes Service ProvidersView All (8)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of INDUSEM
         Industrial Design
  • Compact design with a wheeled chassis for routine transport
  • Extra large chamber with robust manipulator is able to accommodate large and heavy specimens
  • Variable pressure vacuum system allows investigation of different samples, including non-conductive materials
  • Easy-to-use touchscreen control interface for routine sample evaluation
  • Active vibration isolation greatly reduces ambient vibration          Modern Optics
  • The column design allows fully automated column set-up and alignment without any mechanical adjustments
  • A unique four-lens Wide Field Optics™ design offering a variety of working and displaying modes.
  • The proprietary Intermediate Lens (IML) that works as an "aperture changer" makes the exchange of the effective final aperture electromagnetically.
  • Usage of premium materials for the lenses and coils allows an ultra-fast imaging rate down to 20 ns/pixel with minimized dynamic distortion effects.
  • Newly Implemented In-Flight Beam Tracing™ for higher system performance and beam optimization          Analytical Potential
  • First class YAG scintillator based detectors
  • A comprehensive choice of optional detectors and accessories
  • Chamber interface ports are optimized for micro-analytical use
  • Obtaining the clean chamber vacuum by a powerful turbomolecular and rotary fore vacuum pumps within a few minutes          Automation Enabled
  • Design of the system enables full software control and needs no mechanical adjustment
  • Range of automated procedures supports automated operation, setup and alignment
  • Optional software extension for automated particle analysis, large area observation
  • Built-in scripting language (Python) enables access to all control functions and allows building a user-defined fully automated procedures
General Specifications
Electron Microscope TypeSEM
Microscope TypeElectron
Additional Specifications

[u]SEM Column[/u]
Electron Gun:
tungsten heated filament
Resolution (SE):
3 nm at 30 kV
8 nm at 3 kV
Resolution Low Vacuum (BSE):
3.5 nm at 30 kV
Accelerating Voltage:
200 V to 30 kV
Probe Current:
1pA to 2µA

[u]Chamber[/u]
Internal size:
300 mm (width) x 330 mm (depth)
Door:
280 mm (width) x 310 mm (height)
Number of ports:
12+
Chamber suspension:
active vibration isolation

[u]Working Vacuum[/u]
High vacuum mode:
< 9 × 10-3 Pa
Medium vacuum:
3 – 150 Pa
Low vacuum mode:
3 – 500 Pa

[u]Stage[/u]
Type:
compucentric
Movements:
Fully motorized:
X = 130 mm
Y = 130 mm
Z = 100 mm
Rotation: 360° continuous
Tilt: -30° to +90°
Specimen height:
maximum 145 mm
