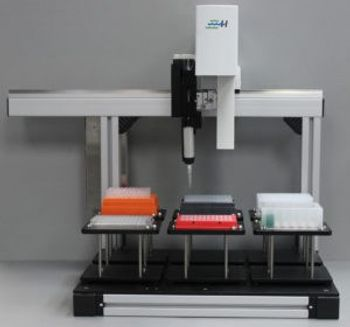

Hudson Robotics - SOLO
Manufactured by Hudson Robotics
The Hudson SOLO™ is a low cost, high-throughput single-channel pipettor.
Hudson SOLO High-Throughput Single-Channel Pipettor
The Hudson SOLO™ is a low cost, high-throughput single-channel pipettor that can be programmed to do anything expected of a hand-held pipettor, with high accuracy down to 400 nanoliters. Equipped with a broad dynamic volume range and the ability to handle reactions in a sterile environment, the SOLO can be loaded and operated manually, but is also compatible with robot loading systems from most manufactures, including the Hudson PlateCrane EX.
The SOLO was developed to meet the growing need throughout the research, pharmaceutical and clinical communities for a high resolution compact robotic pipettor. The SOLO provides researchers with walkaway freedom, a small footprint, and easy to use SOLOSoft software which is closely linked to our SoftLinx™ software for data tracking and scheduling, plus improved efficiency and decreased cost of continuous unattended operation.
The SOLO has the added capability of supporting a grouping of multiple syringes (up to 10) with varying bore sizes to support very tiny (100 µL) aspirating and dispensing volumes, all on the same unit. With the smallest footprint of any comparable liquid-handling robot, the low cost SOLO is also able to perform hit picking. In addition, the SOLO has an optional peristaltic pump for high-speed tip washing, which saves cycle time vs. traditional washing with a syringe-pump.
Applications
The product can be integrated with other automated instruments for seamless process control and flexibility and has many uses in applications involving:
The Hudson SOLO™ is a low cost, high-throughput single-channel pipettor that can be programmed to do anything expected of a hand-held pipettor, with high accuracy down to 400 nanoliters. Equipped with a broad dynamic volume range and the ability to handle reactions in a sterile environment, the SOLO can be loaded and operated manually, but is also compatible with robot loading systems from most manufactures, including the Hudson PlateCrane EX.
The SOLO was developed to meet the growing need throughout the research, pharmaceutical and clinical communities for a high resolution compact robotic pipettor. The SOLO provides researchers with walkaway freedom, a small footprint, and easy to use SOLOSoft software which is closely linked to our SoftLinx™ software for data tracking and scheduling, plus improved efficiency and decreased cost of continuous unattended operation.
The SOLO has the added capability of supporting a grouping of multiple syringes (up to 10) with varying bore sizes to support very tiny (100 µL) aspirating and dispensing volumes, all on the same unit. With the smallest footprint of any comparable liquid-handling robot, the low cost SOLO is also able to perform hit picking. In addition, the SOLO has an optional peristaltic pump for high-speed tip washing, which saves cycle time vs. traditional washing with a syringe-pump.
Applications
The product can be integrated with other automated instruments for seamless process control and flexibility and has many uses in applications involving:
- PCR* Preparation
- DNA Transformations and transfections
- Serial Dilutions
- High-Throughput Cherry Picking
- Bioreactor sampling and feeding
- Maldi spotting
- Plating bacterial colonies
Active Questions & AnswersAsk a Question
There are no current Discussions
Liquid Handling Service ProvidersView All (10)
Documents & ManualsView All Documents
Features of SOLO
The SOLO™ easily fits on lab benchtops and into standard fume hoods and biosafety cabinets. It can automate large and small volume experiments, is adaptable to common well plate formats and can improve the quality and reliability of research. The SOLO can work as an unattended stand alone instrument which can save time and decrease cost and users can learn to use Hudson's Softlinx software in just minutes. The product also can preserve sterlility and avoid cross-contamination while dispensing into slides and microplates.The SOLO high-throughput single-channel pipettor has features researchers will find very desirable from a benchtop instrument including:
- Compact 14" x 16" (355mm x 400mm) footprint
- 8-, 24-, 96-, 384- and 1536-well dispensing
- Compatible with vials, test tubes, reagent reservoirs
- Non-contact dispensing into microplates and slides
- Product offers a very broad dynamic volume range
- Ability to handle reactions in a sterile environment
- Fully compatible with robot loading systems or can be used manually as a stand alone unit
- In-line track/stacker compatibility for unparalleled high-throughput
- Communicates with each instrument via a serial port and comes with its own easy-to-use GUI.
- Includes Hudson Control Group's SoftLinx software, which provides an easy-to-use interface to coordinate the SOLO's operation with other automated instruments
- The new Solo has the added capability of supporting a grouping of multiple syringes (up to 10) with varying bore sizes to support very tiny (100 µL) aspirating and dispensing volumes, all on the same unit.
- The new SOLO has an optional peristaltic pump for high-speed tip washing, which saves cycle time vs. traditional washing with a syringe-pump.
General Specifications
| Depth | 19.5 in |
| Maximum Dispensing Volume | 10 ml |
| Height | 24 in |
| Width | 29.5 in |
| Power Requirements | 120-240 VAC, 50-60Hz, 2Amps Max at 120 |
| Weight | 50 lbs |
| Deck Capacity | 6 with 2 additional positions off deck |
| Dispensing Type | Single-channel |
| Robotic Plate Handler | 1 |
| Workstation Type | Multi-function |
Additional Specifications
Plate Capacity: 4 positions; unlimited with optional stackers
Plate Format: SBS standard footprint, any well configuration
Housing material: Stainless main deck; painted steel upper arm covers over machined aluminum structural components
Spill Protection: All electronics protected by solid, non-penetrated cover to prevent any leakage onto electrical devices
Arm Mechanism
Horizontal Travel/Vertical Stroke: x=18.55"; y=9.57"; z=3.09"
Computer Interface: RS-232 serial cable
