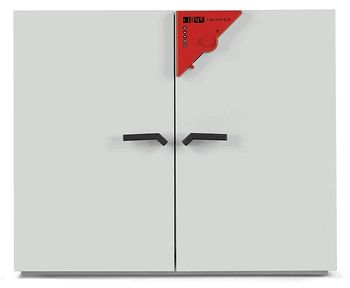

BINDER - BF Series - Classic.Line with forced convection
Manufactured by BINDER
Incubators with forced convection
The BINDER BF is the highest-class for all gentle incubation tasks, particularly under a full load and large batch throughputs. It is extremely homogeneous and has quick recovery times.
Active Questions & AnswersAsk a Question
There are no current Discussions
General Purpose Incubator Service ProvidersView All (29)
Documents & ManualsView All Documents
Features of BF Series - Classic.Line with forced convection
General Specifications
There are no General Specifications available.
Series Modals
BINDER - BF 115
[+] View Model Specifications| Depth | 645 mm |
| Height | 702 mm |
| Width | 834 mm |
| Weight | 64 kg |
| Additional Model Specifications | [u]Interior dimensions [/u]
Width (mm): 600 Height (mm): 480 Depth (mm): 400 Interior volume (l): 115 Racks (number standard/max.): 2 / 5 Load per rack (kg): 20 Permitted total load (kg): 50 [u]Temperature data[/u] Temperature range approx. 5 °C above ambient temperature to (°C): 100 Temperature variation: at 37 °C (± K): 0,3 at 50 °C (± K): 0,6 Temperature fluctuation: at 37 °C (± K): 0,2 at 50 °C (± K): 0,2 Warm-up time 1): to 37 °C (min.): 22 to 50 °C (min.): 23 Recovery time after doors were open for 30 sec. 1): at 37 °C (min.): 1 at 50 °C (min.): 2 Ventilation at 70 °C (x/h): 29 [u]Electrical data[/u] IP protection class acc. to EN 60529: IP 20 Voltage (± 10%) 50 / 60 Hz (V): 230 Nominal power (kW): 0,4 Energy consumption at 37 °C (W): 20 |
BINDER - BF 240
[+] View Model Specifications| Depth | 745 mm |
| Height | 822 mm |
| Width | 1034 mm |
| Weight | 104 kg |
| Additional Model Specifications | [u]Interior dimensions [/u]
Width (mm): 800 Height (mm): 600 Depth (mm): 500 Interior volume (l): 240 Racks (number standard/max.): 2 / 7 Load per rack (kg): 30 Permitted total load (kg): 70 [u]Temperature data[/u] Temperature range approx. 5 °C above ambient temperature to (°C): 100 Temperature variation: at 37 °C (± K): 0,3 at 50 °C (± K): 0,8 Temperature fluctuation: at 37 °C (± K): 0,2 at 50 °C (± K): 0,2 Warm-up time 1): to 37 °C (min.): 12 to 50 °C (min.): 24 Recovery time after doors were open for 30 sec. 1): at 37 °C (min.): 1 at 50 °C (min.): 2 Ventilation at 70 °C (x/h): 19 [u]Electrical data[/u] IP protection class acc. to EN 60529: IP 20 Voltage (± 10%) 50 / 60 Hz (V): 230 Nominal power (kW): 0,68 Energy consumption at 37 °C (W): 33 |
BINDER - BF 400
[+] View Model Specifications| Depth | 765 mm |
| Height | 1025 mm |
| Width | 1235 mm |
| Weight | 145 kg |
| Additional Model Specifications | [u]Interior dimensions [/u]
[i]Width (mm):[/i] 1000 [i]Height (mm):[/i] 800 [i]Depth (mm):[/i] 500 Interior volume (l) 400 Racks (number standard/max.) 2 / 10 Load per rack (kg) 35 Permitted total load (kg) 90 [u]Performance Data Temperature[/u] Temperature range 5 °C above ambient temperature to [°C] 100 Temperature uniformity at 37 °C [± K] 0.4 Temperature fluctuation at 37 °C [± K] 0.1 Heating-up time to 37 °C [min] 12 Recovery time after 30 seconds door open at 37 °C [min] 5 |
BINDER - BF 53
[+] View Model Specifications| Depth | 575 mm |
| Height | 617 mm |
| Width | 634 mm |
| Weight | 43 kg |
| Additional Model Specifications | [u]Interior dimensions [/u]
Width (mm): 400 Height (mm): 400 Depth (mm): 330 Interior volume (l): 53 Racks (number standard/max.): 2 / 5 Load per rack (kg): 15 Permitted total load (kg): 40 [u]Temperature data[/u] Temperature range approx. 5 °C above ambient temperature to (°C): 100 Temperature variation: at 37 °C (± K): 0,4 at 50 °C (± K): 0,7 Temperature fluctuation: at 37 °C (± K): 0,2 at 50 °C (± K): 0,2 Warm-up time 1): to 37 °C (min.): 12 to 50 °C (min.): 20 Recovery time after doors were open for 30 sec. 1): at 37 °C (min.): 1 at 50 °C (min.): 1,5 Ventilation at 70 °C (x/h): 59 [u]Electrical data[/u] IP protection class acc. to EN 60529: IP 20 Voltage (± 10%) 50 / 60 Hz (V): 230 Nominal power (kW): 0,4 Energy consumption at 37 °C (W): 11 |
BINDER - BF 720
[+] View Model Specifications| Depth | 865 mm |
| Height | 1530 mm |
| Width | 1235 mm |
| Weight | 180 kg |
| Additional Model Specifications | [u]Interior dimensions [/u]
[i]Width (mm):[/i] 1000 [i]Height (mm):[/i] 1200 [i]Depth (mm):[/i] 600 Interior volume (l) 720 Racks (number standard/max.) 2 / 15 Load per rack (kg) 45 Permitted total load (kg) 120 [u]Performance Data Temperature[/u] Temperature range 5 °C above ambient temperature to [°C] 100 Temperature uniformity at 37 °C [± K] 0.4 Temperature fluctuation at 37 °C [± K] 0.1 Heating-up time to 37 °C [min] 17 Recovery time after 30 seconds door open at 37 °C [min] 4 |
