This product is Discontinued

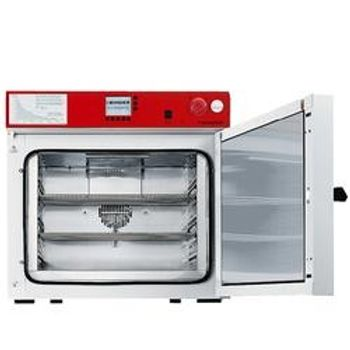

BINDER - MDL series
Manufactured by BINDER
Safety drying ovens with expanded temperature range
The BINDER MDL, with enhanced control function, works at temperatures up to 350 °C. It is it perfectly suited for high-temperature testing such as in the coil coating area.
Active Questions & AnswersAsk a Question
There are no current Discussions
Lab Ovens Service ProvidersView All (15)
Documents & ManualsView All Documents
Features of MDL series
- Electronically controlled APT.line™ preheating chamber assuring temperature accuracy and reproducible results
- All safety features met according to EN 1539
- Heating output 9.0 kW
- Door gasket made of of high temperature resistant silicone
- Rear exhaust connector Ø 100 mm
- MCS controller with 25 storable programs of 100 sections each for a maximum of 500 program segments
- User-friendly LCD screen -Easy-to-read menu guide -Integrated electronic chart recorder -Variety of options for the graphic display of process parameters -Real-time clock
- Replacable fresh-air filter cartridge, class F6 (EU6-fine particle filter for particle sizes between 1 ... 10 µm)
- Independent adjustable temperature safety device class 2 (DIN 12880), with acoustic and visual temperature alarm
- Fresh-air monitoring with audible and visual alarm and automatic deactivation of heating
- RS 422 interface for communication software APT-COM™ DataControlSystem
- 2 chrome-plated racks included
- BINDER test certificate
General Specifications
| Depth | 685 mm (plus door handle 50 mm) |
| Height | 800 mm (incl. feet) |
| Internal Depth | 435 mm |
| Temperature Range | 5 to 350 °C |
| Internal Height | 435 mm |
| Width | 834 mm |
| Internal Width | 600 mm |
| Power Requirements | 400 V / 3N~ |
| Peak Power | 9 kW |
| Chamber Volume | 115 L |
| Oven Orientation | Bench / Cabinet |
| Weight | 90 kg |
| Number of Shelves | 2 - 5 |
