Innovative Technology - PureLab HE Series
Manufactured by Innovative Technology
No Documents
The PureLab HE Gas Purifiers provide a < 1ppm O2 and H2O Inert Atmosphere required for a multitude of air sensitive applications.

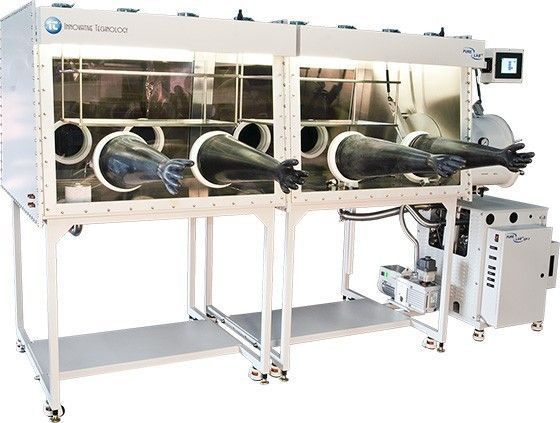

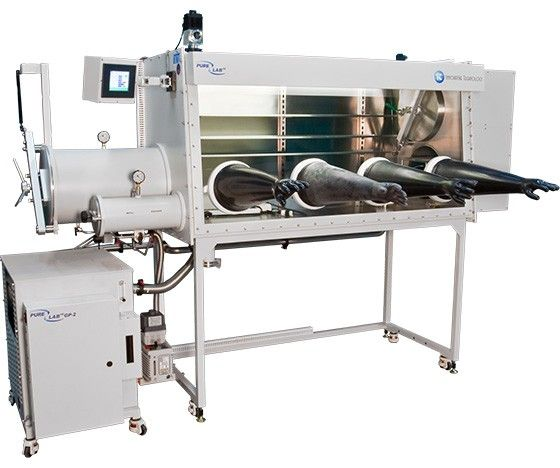

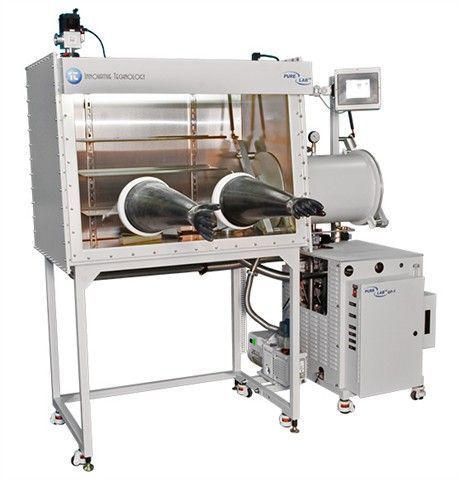

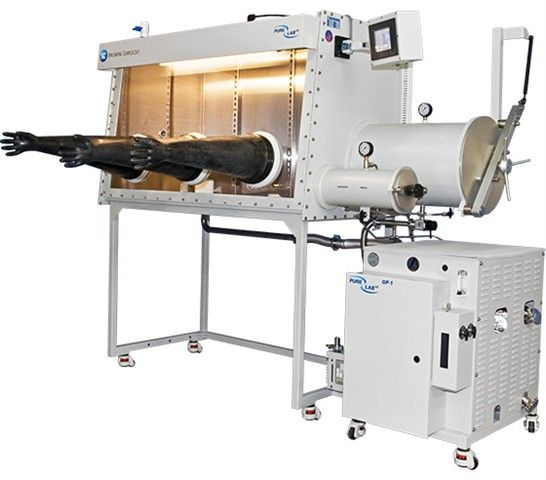

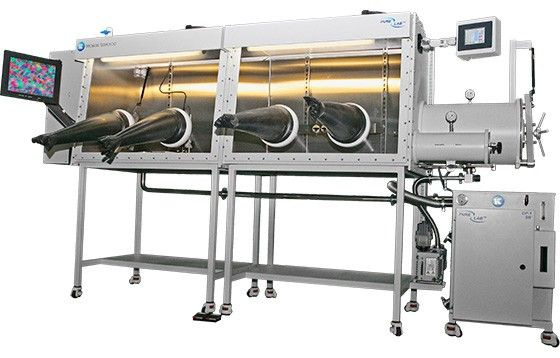

The PureLab HE Series Glovebox design is based on a modular platform allowing customers to expand existing Gloveboxes to meet increasing working space requirements. Expansion features include additional antechambers for thru flow work processes, cold storage freezers, process vacuum ovens and furnaces and full line of accessories.
The PureLab HE Gas Purifiers provide a < 1ppm O2 and H2O Inert Atmosphere required for a multitude of air sensitive applications.
The PureLab HE Gas Purifiers provide a < 1ppm O2 and H2O Inert Atmosphere required for a multitude of air sensitive applications.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Glove Boxes Service ProvidersView All (2)
Documents & Manuals
There are no Documents or Manuals available.
Features of PureLab HE Series
All PureLab brand Glovebox Systems are manufactured using the strictest of Quality Assurance measures and with only highest quality components including Swagelok compression fittings and valves, Edwards Vacuum Components and Allen Bradley PLC Controls.
- 304 Type SS Construction
- Modular design
- All Stainless Steel Gas Flow Piping & Fittings
- Electrical Feed Through with Power Strip
- Gas and Vacuum Feed Through
- Foot Pedal for Manual Pressure Control
- Front Mounted Light
- MR-10 LEXAN Chemical Resistant Window
- Teflon Glove Ports
- Powder Coated Finish
- Color Touch Screen HMI
- Gas Purifier < 1ppm O2 and H2O
- Large Vacuum Chamber
- Rotary Vane Vacuum Pump
- Variable Speed 0-60 CFM Circulation System
- Automatic Regeneration
- Automatic Pressure Control
- Automatic Column Valves
- Adjustable Storage Shelves
- Locking Leveling Casters
- Power Strip
General Specifications
There are no General Specifications available.
Series Modals
Innovative Technology - HE 2GB
[+] View Model Specifications| Internal Depth | 780 mm |
| Internal Height | 900 mm |
| Internal Width | 1250 mm |
| Number of Glove Ports | 2 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | Ductless |
| Additional Model Specifications |
Innovative Technology - HE 3GB
[+] View Model Specifications| Internal Depth | 780 mm |
| Internal Height | 900 mm |
| Internal Width | 1500 mm |
| Number of Glove Ports | 3 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | Ductless |
| Additional Model Specifications |
Innovative Technology - HE 4GB 1800
[+] View Model Specifications| Internal Depth | 780 mm |
| Internal Height | 900 mm |
| Internal Width | 1800 mm |
| Number of Glove Ports | 4 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | Ductless |
| Additional Model Specifications |
Innovative Technology - HE 4GB 1950
[+] View Model Specifications| Internal Depth | 780 mm |
| Internal Height | 900 mm |
| Internal Width | 1950 mm |
| Number of Glove Ports | 4 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | Ductless |
| Additional Model Specifications |
Innovative Technology - HE 4GB 2500
[+] View Model Specifications| Internal Depth | 780 mm |
| Internal Height | 900 mm |
| Internal Width | 2500 mm |
| Number of Glove Ports | 4 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | Ductless |
| Additional Model Specifications |
Innovative Technology - PureLab HE 2-sided
[+] View Model SpecificationsThere are no Models available.
