Coy Laboratory Products - Polymer Glove Box
Manufactured by Coy Laboratory Products
These glove boxes are an economical way to perform and maintain a wide range of atmospheres and functions.

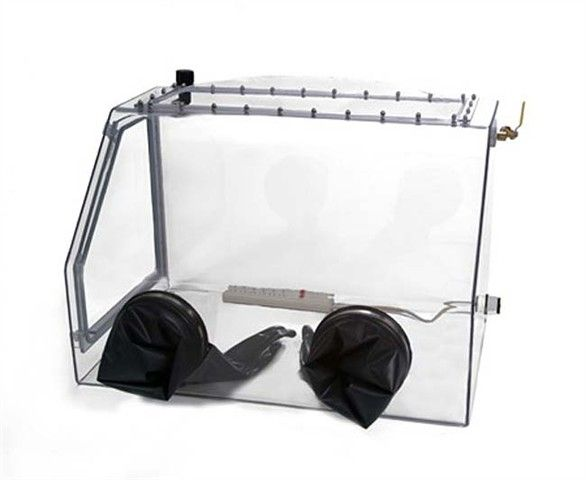

Coy Laboratory Products Polymer Glove Boxes can provide your desired environment for critical operations in such industries as semiconductor and pharmaceutical testing and manufacturing. Hermetically sealed enclosures provide a controlled atmosphere for a wide range of manufacturing and testing operations. Their modular design lets you select the options you need for your operation.
Select from materials to suit your requirements. Use polycarbonate for operations that involve thermal stress or UV-Resistant Acrylic which permits the use of UV light inside the chamber without damage to the integrity of the plastic.
All glove boxes are fabricated to meet rigorous standards for cleanliness and durability. Solvent welding ensures a strong, airtight structure that won't leak. The gaskets on the side doors provide a safe, positive seal without interfering with full access to the internal chamber. The 45-degree front slope allows the operator an uninterrupted view of work in progress.Contact COY about custom viewing slopes for specific requirements.

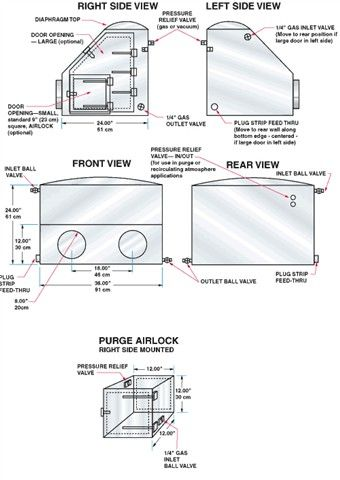

The patented Diaphragm Top increase the ease with which the operators hands enter and exit the glove box and increase cost savings as less glove box gas is expelled to the lab atmosphere. For applications involving large equipment, request the optional, fully gasketed 32" x 20" (81 cm x 51 cm) removable back wall or oversize door in the side wall. Dual 8" (20 cm) round arm ports come equipped with flanges for easy connection of gloves or gloveless sleeve, which may be ordered as desired. The optional Arm Port Plugs maintain an airtight chamber while gloves are changed.
Select from materials to suit your requirements. Use polycarbonate for operations that involve thermal stress or UV-Resistant Acrylic which permits the use of UV light inside the chamber without damage to the integrity of the plastic.
All glove boxes are fabricated to meet rigorous standards for cleanliness and durability. Solvent welding ensures a strong, airtight structure that won't leak. The gaskets on the side doors provide a safe, positive seal without interfering with full access to the internal chamber. The 45-degree front slope allows the operator an uninterrupted view of work in progress.Contact COY about custom viewing slopes for specific requirements.
The patented Diaphragm Top increase the ease with which the operators hands enter and exit the glove box and increase cost savings as less glove box gas is expelled to the lab atmosphere. For applications involving large equipment, request the optional, fully gasketed 32" x 20" (81 cm x 51 cm) removable back wall or oversize door in the side wall. Dual 8" (20 cm) round arm ports come equipped with flanges for easy connection of gloves or gloveless sleeve, which may be ordered as desired. The optional Arm Port Plugs maintain an airtight chamber while gloves are changed.
Active Questions & AnswersAsk a Question
There are no current Discussions
Glove Boxes Service ProvidersView All (2)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
| Depth | 24 in |
| Height | 24 in (Available in other sizes) |
| Width | 36 in |
| Number of Glove Ports | 2 |
| Glove Box Construction | Polymer |
| Glove Box Type | Benchtop |
| Weight | 22 kg |
| Ducting | None |
Additional Specifications
These glove boxes are not designed for vacuum or pressure applications
