METTLER TOLEDO - AT20
Manufactured by METTLER TOLEDO
No Documents

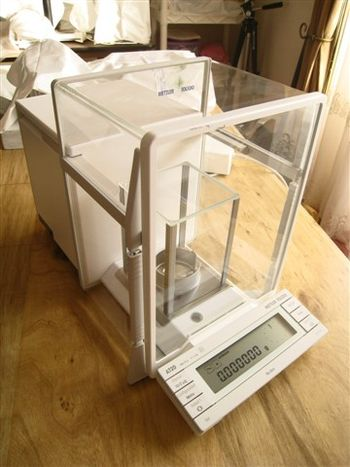

AT20 Electronic Analytical Micro Balance
Mettler-Toledo AT20 Electronic Analytical Micro Balance with professional Fully Automatic Calibration Technology (proFACT) and motorized (or manual) movement of glass doors
Active Questions & AnswersAsk a Question
2Replies
AT20 communication details required
Recent Questions & Answers
Updated bydemeijr
Balances Service ProvidersView All (23)
Documents & Manuals
There are no Documents or Manuals available.
Features of AT20
- At any time, the proFACT detects automatically when the balance exceeds the permitted tolerance range and calibrate the balance utilizing 2 internal weights. Except of usual internal calibration, the proFACT fulfills also linearity calibration.
- In addition to the proFACT, the balance has easy to use menu operated calibrations: motorized internal calibration, including linearity calibration, by built in 2 standard weights and external calibration by 20g weight.
- Balance operating menu allows to adapt the balance to weighing conditions, select calibration function, weighing process adapter, repeatability, auto zero correction, primary and alternative weighing units and interface output parameters.
General Specifications
| Depth | 434 mm |
| Height | 289 mm |
| Width | 241 mm |
| Balance Type | Microbalance |
| Capacity | 22 g |
| Weight | 1.2 kg |
| Linearity | 0.01 mg |
| Readability | 0.002 mg |
| Repeatability | 0.004 mg |
Additional Specifications
Linearity within 500 mg: 0.006mg
Effective height above the pan: 240mm
Weighing pan diameter: 30 mm
