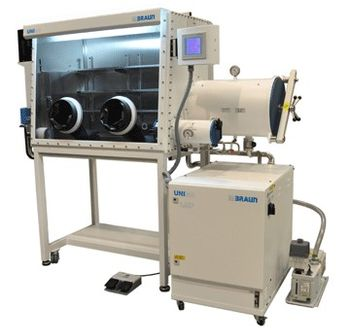

MBraun - UNIlab Workstation
Manufactured by MBraun
A ready to operate workstation that includes a large main antechamber, vacuum pump and monochrome color Siemens PLC touch screen controller.
The MBRAUN UNIlab is a ready to operate workstation that includes a large main antechamber, vacuum pump and monochrome color Siemens PLC touch screen controller. The UNIlab comes standard with an automatic regenerable oxygen and moisture purifier unit (MB 20G) that can Attain purity levels of less than one part per million oxygen and moisture. The UNIlab includes integrated high vacuum feedthroughs and a stainless steel encapsulated blower MB-BL-01 with frequency converter. All MBRAUN glove boxes can be operated world-wide using standard power supply.
Available Sizes:
1200mm (L) x 780mm (D) x 920mm (H)
1450mm (L) x 780mm (D) x 920mm (H)
1950mm (L) x 780mm (D) x 920mm (H)
Available Sizes:
1200mm (L) x 780mm (D) x 920mm (H)
1450mm (L) x 780mm (D) x 920mm (H)
1950mm (L) x 780mm (D) x 920mm (H)
Active Questions & AnswersAsk a Question
1Replies
Door Required
Recent Questions & Answers
Updated byLabWrenchEditor
Glove Boxes Service ProvidersView All (2)
Documents & ManualsView All Documents
Features of UNIlab Workstation
- PLC controller with touch screen monitor
- Large main antechamber
- Three glovebox sizes available
- Vacuum pump
- Automatic regenerable H2O/O2 single column inert gas purifier
- World-wide operation using standard power supply
- Integrated high vacuum feedthroughs
- Stainless steel adjustable shelving
- Stainless steel piping
General Specifications
| Depth | 780 mm |
| Height | 920 mm |
| Width | 1200 mm |
| Power Requirements | 230 V/50-60 Hz, 10 A or 115 V / 50-60 Hz, 20 A or 100 V/ 50-60 Hz, 15 A |
| Number of Glove Ports | 2 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | Ductless |
