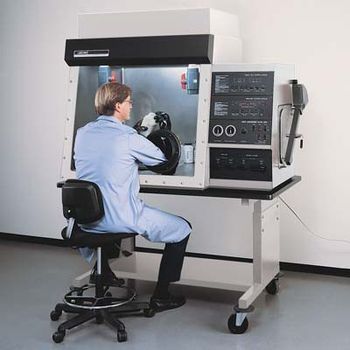

Labconco - Protector Combination Glove Boxes

Manufactured by Labconco

Protector Glove Boxes Catalog

Protector Combination Glove Boxes provide an enclosed environment for handling both hazardous substances and atmosphere-sensitive materials.

Protector Combination Glove Boxes provide an enclosed environment for handling both hazardous substances and atmosphere-sensitive materials. These glove boxes have a HEPA inlet filter to provide a particulate-free internal environment. Closure of two internal valves converts the box to a controlled atmosphere glove box that can be pressurized up to ±5 inches water gauge achieving a leak-tight inert atmosphere. When atmosphere-sensitive procedures are complete, opening the two internal valves allows air from inside the box to pass through a HEPA outlet filter and optional second HEPA or carbon outlet filter before exhausting via ductwork to the outside. The physical barrier and filtration system of these boxes protect the user from exposure to hazardous materials.

Active Questions & AnswersAsk a Question

There are no current Discussions

Glove Boxes Service ProvidersView All (2)

Request Support

Manuals & DocumentsFeaturesSpecifications

Documents & ManualsView All Documents

Protector Glove Boxes Catalog

Features of Protector Combination Glove Boxes

Two internal valves open and close to convert the glove box from a flow-through filtered box to a leak-tight inert atmosphere box.
Laminated safety glass viewing window with one-piece, molded neoprene gasket seal
One-piece molded neoprene gasket seals the glass to the liner and provides a leak-tight interior atmosphere.
Two interior electrical receptacles separately controlled by individual switches on the front panel
Neoprene gloves, size 9 3/4", are included.
Comfortable, 8" diameter glove ports
30-watt fluorescent lamp provides interior lighting.
Epoxy-coated steel exterior
Large transfer chamber allows easy transfer of materials between the laboratory and box while maintaining an established glove box environment.
Space-saving inner and outer transfer chamber doors
High efficiency polyester prefilter lengthens the life of the inlet HEPA filter by trapping large particles.
Inlet and outlet HEPA filter, 99.99% efficient on particulates 0.3 micron in diameter, prevent contaminants from entering or leaving the glove box chamber.
Built-in blower permits the box's interior atmosphere to be vented to the outside.
3” square collar allows connection to ducting system.
Blower speed control allows the operator to adjust the speed of the built-in blower to vary the volume of airflow through the glove box while varying the internal negative pressure.
Pressure gauges on the control panel enable the operator to constantly monitor pressures in the glove box and transfer chamber. When internal valves are open, the glove box pressure gauge also indicates HEPA filter loading.
Control switches for the fluorescent lamp and interior electrical receptacles are conveniently located on the control panel.
Easy access circuit breakers, located on the back of the box, provide over-current protection to the interior and exterior outlet circuits.
Pressure relief bubbler helps protect against accidental over- or under-pressurization.
Factory-tested with a helium mass spectrometer while pressurized with helium at 5" water gauge.
Exterior electrical outlet for connection of accessory vacuum pump
Four convenient manual valves control the gas input and exhaust of both the glove box and transfer chamber.
ETL listed (115 volt models)
CE Conformity (230 volt models)

General Specifications

There are no General Specifications available.

Series Modals

Labconco - 50600009158

[+] View Model Specifications

Labconco - 50601009158

[+] View Model Specifications

Labconco - 50700009158

[+] View Model Specifications

Labconco - 50701009158

[+] View Model Specifications

Labconco - 50800009158

[+] View Model Specifications

Labconco - 50801009158

[+] View Model Specifications

Looking for New or Used Equipment?

Shop on LabX

Shop on Labx.com

Depth	37.6 in
Height	46.4 in
Width	62.4 in
Internal Width	35.5 in
Power Requirements	115 volts, 60 Hz, 20 amps
Number of Glove Ports	2
Glove Box Construction	Fiberglass
Glove Box Type	Stand Alone
Ducting	Ductless
Additional Model Specifications	[u]Protector Fiberglass Combination Glove Box[/u] Filter Type: HEPA Primary Application: Work with both atmosphere-sensitive and/or hazardous materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: supporting base Built-In Options: None Interior-mounted electrical outlets: 115 volt, 6 amp maximum combined rating Exterior back mounted electrical outlet: 115 volt, 9 amp NOTE: Also available with "International Electrical Requirements"

Depth	37.6 in
Height	46.4 in
Width	62.4 in
Internal Width	35.5 in
Power Requirements	115 volts, 60 Hz, 20 amps
Number of Glove Ports	2
Glove Box Construction	Stainless Steel
Glove Box Type	Stand Alone
Ducting	Ductless
Additional Model Specifications	[u]Protector Stainless Steel Combination Glove Box[/u] Filter Type: HEPA Primary Application: Work with both atmosphere-sensitive and/or hazardous materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: supporting base Built-In Options: None Interior-mounted electrical outlets: 115 volt, 6 amp maximum combined rating Exterior back mounted electrical outlet: 115 volt, 9 amp NOTE: Also available with "International Electrical Requirements"

Depth	37.6 in
Height	46.4 in
Width	62.4 in
Internal Width	33.5 in
Power Requirements	115 volts, 60 Hz, 20 amps
Number of Glove Ports	2
Glove Box Construction	Fiberglass
Glove Box Type	Stand Alone
Ducting	Ductless
Additional Model Specifications	[u]Protector Fiberglass Combination Glove Box with Pressure Control Module and Foot Pedal[/u] Filter Type: HEPA Primary Application: Work with both atmosphere-sensitive and/or hazardous materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: supporting base Built-In Options: Pressure control module and foot pedal Compliance: ETL Interior-mounted electrical outlets: 115 volt, 6 amp maximum combined rating Exterior back mounted electrical outlet: 115 volt, 9 amp NOTE: Also available with "International Electrical Requirements"

Depth	37.6 in
Height	46.4 in
Width	62.4 in
Internal Width	35.5 in
Power Requirements	115 volts, 60 Hz, 20 amps
Number of Glove Ports	2
Glove Box Construction	Stainless Steel
Glove Box Type	Stand Alone
Ducting	Ductless
Additional Model Specifications	[u]Protector Stainless Steel Combination Glove Box with Pressure Control Module and Foot Pedal[/u] Filter Type: HEPA Primary Application: Work with both atmosphere-sensitive and/or hazardous materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: supporting base Built-In Options: Pressure control module and foot pedal Compliance: ETL Interior-mounted electrical outlets: 115 volt, 6 amp maximum combined rating Exterior back mounted electrical outlet: 115 volt, 9 amp NOTE: Also available with "International Electrical Requirements"

Depth	37.6 in
Height	46.4 in
Width	62.4 in
Internal Width	35.5 in
Power Requirements	115 volts, 60 Hz, 20 amps
Number of Glove Ports	2
Glove Box Construction	Fiberglass
Glove Box Type	Stand Alone
Ducting	Ductless
Additional Model Specifications	[u]Protector Fiberglass Combination Glove Box with Pressure Control Module, Auto Purge/Fill Sequencer and Foot Pedal[/u] Primary Application: Work with both atmosphere-sensitive and/or hazardous materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: supporting base Built-In Options: Pressure control module, foot pedal and purge/fill control module Interior-mounted electrical outlets: 115 volt, 6 amp maximum combined rating Exterior back mounted electrical outlet: 115 volt, 9 amp NOTE: Also available with "International Electrical Requirements"
