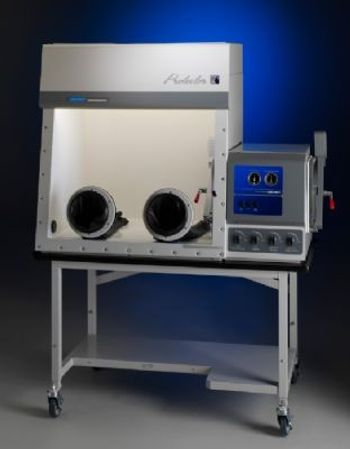

Labconco - Protector Controlled Atmosphere Glove Boxes
Manufactured by Labconco
Provide a leak-tight environment to perform work with contamination-sensitive materials under vacuum or in an inert environment.
Protector Controlled Atmosphere Glove Boxes provide a leak-tight environment to perform work with contamination-sensitive materials under vacuum or in an inert environment. Fiberglass-lined models are performance tested to maintain oxygen levels a low as 0.4 ppm and moisture levels as low as 2 ppm. Stainless steel-lined models are performance tested to maintain oxygen levels as low as 0.2 ppm and moisture levels as low as 1 ppm.
Active Questions & AnswersAsk a Question
There are no current Discussions
Glove Boxes Service ProvidersView All (2)
Documents & ManualsView All Documents
Features of Protector Controlled Atmosphere Glove Boxes
- Factory leak-tested with a mass spectrometer while pressurized with helium at 5 inches of water gauge. No detectable leaks greater than 1 x 10-6 ml/sec.
- Exceed Class I atmosphere containment conditions for oxygen permeation <1.67 ppm/min per ISO 10648-2 test method.
- Oxygen permeation <0.3 ppm/min (fiberglass-lined models) and <0.15 ppm/min (stainless steel-lined models) per ISO 10648-2.
- Four manual valves – two on the main chamber and two on the transfer chamber – for evacuating, filling and added control. With 3/8” compression fittings and 3/8” hose barbs.
- Factory-installed, rear-mounted, low profile stainless steel pressure relief bubbler at ±6 inches of water gauge.
- Two rear-mounted inlet and oulet 3/4” OD compression fittings for easy connection to optional AtmosPure Re-Gen Gas Purifier or other accessory drying train.
- Large viewing area, 36” w x 27.6” high, provides maximum visibility. Viewing window is 3/8” thick, laminated safety glass.
- Space-saving inner and outer transfer chamber doors that pivot upward, are counterbalanced and equipped with quick-latches.
- Interior right-hand side wall-mounted electrical duplex receptacle with 10 amp maximum (100/115 volt models) or 10 amp maximum (230 volt models) circuit load.
- Interior left-hand side wall-mounted pass through plug for on-site installation of an optional accessory: electrical outlet, RS-232 port, gas/liquid port, or port for oxygen or moisture monitor.
- Pair of neoprene gloves, 0.015” thick, 30” long, size 9 ¾.
- Switches for light, blower and electrical duplex.
- Two 8” ID, epoxy-coated aluminum double-grooved glove ports mounted 17” apart, with neoprene gaskets.
- Two 25-watt fluorescent lights.
- Dry-powder epoxy-coated, 18 and 20 gauge steel exterior panels.
General Specifications
There are no General Specifications available.
Series Modals
Labconco - 5060010
[+] View Model Specifications| Depth | 34.4 in |
| Height | 45.7 in |
| Width | 63.9 in |
| Internal Width | 35 in |
| Power Requirements | 100-115 volts, 50/60 Hz, 10 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Fiberglass |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Fiberglass Controlled Atmosphere Glove Boxes Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: North America, 100-115 Volts Required Accessories: supporting base, vacuum source, inert gas Built-In Options: None Compliance: ETL listing, UL 61010-1 and CAN/CSA C22.2 No. 1010.1 conformity Note: Also available for other electrical requirements |
Labconco - 5060110
[+] View Model Specifications| Depth | 34.4 in |
| Height | 45.7 in |
| Width | 63.5 in |
| Internal Width | 35 in |
| Power Requirements | 100-115 volts, 50/60 Hz, 10 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Stainless Steel Controlled Atmosphere Glove Boxes Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: North America, 100-115 Volts Required Accessories: supporting base, vacuum source, inert gas Built-In Options: None Compliance: ETL listing, UL 61010-1 and CAN/CSA C22.2 No. 1010.1 conformity Note: Also available for other electrical requirements |
Labconco - 5060112
[+] View Model Specifications| Depth | 34.4 in |
| Height | 45.7 in |
| Width | 108.9 in |
| Internal Width | 81.84 in |
| Power Requirements | 100-115 volts, 50/60 Hz, 10 amps |
| Number of Glove Ports | 4 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | Ductless |
| Additional Model Specifications | Protector Stainless Steel Double Controlled Atmosphere Glove Boxes Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: North America, 100-115 Volts Required Accessories: supporting base, vacuum source, inert gas Built-In Options: None Compliance: ETL listing, UL 61010-1 and CAN/CSA C22.2 No. 1010.1 conformity Note: Also available for other electrical requirements |
Labconco - 5080010
[+] View Model Specifications| Depth | 34.4 in |
| Height | 45.7 in |
| Width | 63.9 in |
| Internal Width | 35 in |
| Power Requirements | 100-115 volts, 50/60 Hz, 10 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Fiberglass |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Fiberglass Controlled Atmosphere Glove Boxes with Auto Pressure Control Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: North America, 100-115 Volts Required Accessories: supporting base, vacuum source, inert gas Built-In Options: Pressure control module and foot pedal Compliance: ETL listing, UL 61010-1 and CAN/CSA C22.2 No. 1010.1 conformity Note: Also available for other electrical requirements |
Labconco - 5080110
[+] View Model Specifications| Depth | 34.4 in |
| Height | 45.7 in |
| Width | 63.5 in |
| Internal Width | 35 in |
| Power Requirements | 100-115 volts, 50/60 Hz, 10 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Stainless Steel Controlled Atmosphere Glove Boxes with Auto Pressure Control Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: North America, 100-115 Volts Required Accessories: supporting base, vacuum source, inert gas Built-In Options: Pressure control module and foot pedal Compliance: ETL listing, UL 61010-1 and CAN/CSA C22.2 No. 1010.1 conformity Note: Also available for other electrical requirements |
Labconco - 5080112
[+] View Model Specifications| Depth | 34.4 in |
| Height | 45.7 in |
| Width | 108.9 in |
| Internal Width | 81.84 in |
| Power Requirements | 100-115 volts, 50/60 Hz, 10 amps |
| Number of Glove Ports | 4 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Stainless Steel Double Controlled Atmosphere Glove Boxes with Auto Pressure Control Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: North America, 100-115 Volts Required Accessories: supporting base, vacuum source, inert gas Built-In Options: Pressure control module and foot pedal Compliance: ETL listing, UL 61010-1 and CAN/CSA C22.2 No. 1010.1 conformity Note: Also available for other electrical requirements |
