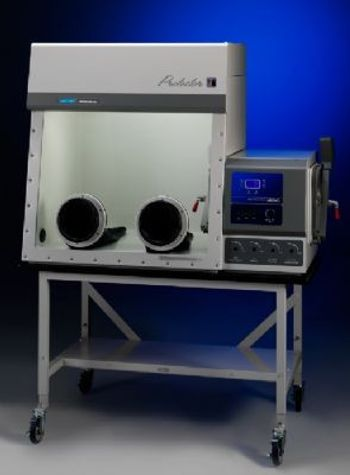

Labconco - Protector Filtered Glove Boxes
Manufactured by Labconco
Provide inlet and outlet HEPA or ULPA filtration and a leak-tight physical barrier to protect the operator from exposure to hazardous materials.
Protector Filtered Glove Boxes provide inlet and outlet HEPA or ULPA filtration and a leak-tight physical barrier to protect the operator from exposure to potentially hazardous materials. These glove boxes feature particulate containment <20 nanograms per cubic meter as confirmed by Safebridge Consultants, Incorporated and also meet ISO Class 4 standards.
Active Questions & AnswersAsk a Question
There are no current Discussions
Glove Boxes Service ProvidersView All (2)
Documents & ManualsView All Documents
Features of Protector Filtered Glove Boxes
- Particulate containment <20 nanograms per cubic meter as confirmed by SafeBridge Consultants, Incorporated.
- Fast “clean up time.” 0.05 ppm average tracer gas levels or less detected during perimeter scan testing (surpasses ASHRAE 110 standards) after 5 minute dilution.
- Airborne particulate cleanliness (measured under positive and negative pressures per ISO 14644-1 test method) exceeds ISO Class 5 conditions (equivalent to Class 100) and achieves ISO Class 4 conditions.
- Factory leak-tested with a mass spectrometer while pressureized with helium at 1 inch of water gauge. No detectable leaks greater than 1 x 10-6 ml/sec.
- Inlet and outlet particulate (HEPA or ULPA) filters to prevent contaminants from entering or leaving the glove box chamber.
- Test port for challenging HEPA or ULPA filter integrity.
- True Bag-In/Bag-Out Filter Disposal System for safe filter removal and replacement.
- LCD display provides real time monitoring of volume dilution rates in cubic feet per minute (CFM), air changes/minute (ACM), and main chamber pressure (inches of water).
- Built-in blower with speed control capable of airflow from 15 CFM to 85 CFM.
- Large viewing area, 36” w x 27.6” high, provides maximum visibility. Viewing window is 3/8” thick, laminated safety glass.
- Space-saving inner and outer transfer chamber doors that pivot upward, are counterbalanced and equipped with quick-latches.
- Interior right-hand side wall-mounted pass-through plug for on-site installation of an optional accessory: electrical outlet, RS-232 port, gas/liquid port, or port for oxygen or moisture monitor.
- Pair of neoprene gloves, 0.015” thick, 30” long, size 9 ¾.
- Switches for light, blower and electrical duplex.
- Two 8” ID, epoxy-coated aluminum double-grooved glove ports mounted 17” apart, with neoprene gaskets.
- Two 25-watt fluorescent lights that exceed 100 footcandles.
- Dry-powder epoxy-coated, 18 and 20 gauge steel exterior panels.
General Specifications
There are no General Specifications available.
Series Modals
Labconco - 5065010
[+] View Model Specifications| Depth | 31 in |
| Height | 45.7 in |
| Width | 63.9 in |
| Internal Width | 35 in |
| Power Requirements | 100-115 volts, 50/60 Hz, 10 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Fiberglass |
| Glove Box Type | Stand Alone |
| Ducting | Ductless |
| Additional Model Specifications | Protector Fiberglass Filtered Glove Boxes Filter Type: HEPA Primary Application: Work with hazardous materials Electrical Requirements: Domestic Power Cord & Plug: North America, 100-115 Volts Required Accessories: supporting base Built-In Options: None Compliance: ETL listing, UL 61010-1 and CAN/CSA C22.2 No. 1010.1 conformity Note: Also available for other electrical requirements |
Labconco - 5065510
[+] View Model Specifications| Depth | 31 in |
| Height | 45.7 in |
| Width | 63.5 in |
| Internal Width | 35 in |
| Power Requirements | 100-115 volts, 50/60 Hz, 10 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | Ductless |
| Additional Model Specifications | Protector Stainless Steel Filtered Glove Boxes Filter Type: ULPA Primary Application: Work with hazardous materials Electrical Requirements: Domestic Power Cord & Plug: North America, 100-115 Volts Required Accessories: supporting base Built-In Options: None Compliance: ETL listing, UL 61010-1 and CAN/CSA C22.2 No. 1010.1 conformity Note: Also available for other electrical requirements |
Labconco - 5065512
[+] View Model Specifications| Depth | 31 in |
| Height | 45.7 in |
| Width | 108.9 in |
| Internal Width | 81.84 in |
| Power Requirements | 100-115 volts, 50/60 Hz, 10 amps |
| Number of Glove Ports | 4 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | Ductless |
| Additional Model Specifications | Protector Stainless Steel Double Filtered Glove Boxes Filter Type: ULPA Primary Application: Work with hazardous materials Electrical Requirements: Domestic Power Cord & Plug: North America, 100-115 Volts Required Accessories: supporting base Built-In Options: None Compliance: ETL listing, UL 61010-1 and CAN/CSA C22.2 No. 1010.1 conformity Note: Also available for other electrical requirements |
