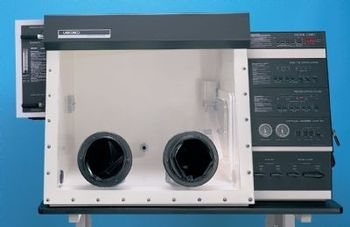

Labconco - Protector Controlled Atmosphere Glove Boxes (discontinued)
Manufactured by Labconco
Provide a leak-tight environment to perform work with contamination-sensitive materials under vacuum or in an inert environment.
Protector Controlled Atmosphere Glove Boxes provide a leak-tight environment to perform work with contamination-sensitive materials under vacuum or in an inert environment.
Procedures that may be conducted inside these glove boxes include research involving organometallic substances, lithium battery, catalyses or hemoglobin.
This model has been discontinued.
Procedures that may be conducted inside these glove boxes include research involving organometallic substances, lithium battery, catalyses or hemoglobin.
This model has been discontinued.
Active Questions & AnswersAsk a Question
There are no current Discussions
Glove Boxes Service ProvidersView All (2)
Documents & ManualsView All Documents
Features of Protector Controlled Atmosphere Glove Boxes (discontinued)
- Laminated safety glass viewing window with one-piece, molded neoprene gasket seal
- Two interior electrical receptacles separately controlled by individual switches on the front panel
- Pressure relief bubbler helps protect against accidental over- or under- pressurization.
- Neoprene gloves, size 9 3/4", are included.
- Comfortable, 8" diameter glove ports
- 30-watt fluorescent lamp provides interior lighting.
- Durable epoxy-coated steel exterior
- Large transfer chamber allows easy transfer of materials between the laboratory and box while maintaining an established glove box environment.
- Pressure gauges allow the user to constantly monitor pressures in the glove box and transfer chamber.
- Factory-tested with a helium mass spectrometer while pressurized with helium at 5" water gauge.
- No detectable leaks greater than 1 x 10-6 cc/sec.
- One exterior 3-wire electrical receptacle for vacuum pump connection
- Control switches for the fluorescent lamp, interior and exterior electrical receptacles are conveniently located on the control panel.
- Space-saving inner and outer transfer chamber doors
- Four manual valves for gas input and exhaust of both the glove box and transfer chamber
- ETL listed (115 volt models)
- CE Conformity (230 volt models)
General Specifications
There are no General Specifications available.
Series Modals
Labconco - 5060000
[+] View Model Specifications| Depth | 37.6 in |
| Height | 38.5 in |
| Width | 62.4 in |
| Internal Width | 35.5 in |
| Power Requirements | 115 volts, 60 Hz, 20 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Fiberglass |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Fiberglass Controlled Atmosphere Glove Box Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: vacuum pump, supporting base Built-In Options: None Compliance: ETL, UL 3101-1/61010-1 |
Labconco - 5060100
[+] View Model Specifications| Depth | 37.6 in |
| Height | 38.5 in |
| Width | 62.4 in |
| Internal Width | 35.5 in |
| Power Requirements | 115 volts, 60 Hz, 20 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Stainless Steel Controlled Atmosphere Glove Box Electrical Specification: , Domestic Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: vacuum pump, supporting base Built-In Options: None, None Compliance: ETL, UL 3101-1/61010-1 |
Labconco - 5060120
[+] View Model Specifications| Depth | 37.6 in |
| Height | 38.5 in |
| Width | 107.6 in |
| Internal Width | 81.8 in |
| Power Requirements | 115 volts, 60 Hz, 35 Amps |
| Number of Glove Ports | 4 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Stainless Steel Double Controlled Atmosphere Glove Box Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: 1 each 115 volts, 15 amps; 1 each 115 volts, 20 amps Required Accessories: vacuum pump, supporting base Built-In Options: None Compliance: ETL, UL 3101-1/61010-1 |
Labconco - 5070000
[+] View Model Specifications| Depth | 37.6 in |
| Height | 38.5 in |
| Width | 62.4 in |
| Internal Width | 35.5 in |
| Power Requirements | 115 volts, 60 Hz, 20 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Fiberglass |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Fiberglass Controlled Atmosphere Glove Box with Pressure Control Module and Foot Pedal Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: vacuum pump, supporting base Built-In Options: Pressure control module and foot pedal Compliance: ETL, UL 3101-1/61010-1 |
Labconco - 5070100
[+] View Model Specifications| Depth | 37.6 in |
| Height | 38.5 in |
| Width | 62.4 in |
| Internal Width | 35.5 in |
| Power Requirements | 115 volts, 60 Hz, 20 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Stainless Steel Controlled Atmosphere Glove Box with Pressure Control Module and Foot Pedal Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: vacuum pump, supporting base Built-In Options: Pressure control module and foot pedal Compliance: ETL, UL 3101-1/61010-1 |
Labconco - 5070120
[+] View Model Specifications| Depth | 37.6 in |
| Height | 38.5 in |
| Width | 108.6 in |
| Internal Width | 81.8 in |
| Power Requirements | 115 volts, 60 Hz, 35 Amps |
| Number of Glove Ports | 4 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Stainless Steel Double Controlled Atmosphere Glove Box with Pressure Control Module and Foot Pedal Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: 1 each 115 volts, 15 amps; 1 each 115 volts, 20 amps Required Accessories: vacuum pump, supporting base Built-In Options: Pressure control module and foot pedal Compliance: ETL, UL 3101-1/61010-1 |
Labconco - 5080000
[+] View Model Specifications| Depth | 37.6 in |
| Height | 38.5 in |
| Width | 62.4 in |
| Internal Width | 35.5 in |
| Power Requirements | 115 volts, 60 Hz, 20 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Fiberglass |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Fiberglass Controlled Atmosphere Glove Box with Pressure Control Module, Auto Purge/Fill Sequencer and Foot Pedal Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: vacuum pump, supporting base Built-In Options: Pressure control module, foot pedal and purge/fill control module Compliance: ETL, UL 3101-1/61010-1 |
Labconco - 5080100
[+] View Model Specifications| Depth | 37.6 in |
| Height | 38.5 in |
| Width | 62.4 in |
| Internal Width | 35.5 in |
| Power Requirements | 115 volts, 60 Hz, 20 amps |
| Number of Glove Ports | 2 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Stainless Steel Controlled Atmosphere Glove Box with Pressure Control Module, Auto Purge/Fill Sequencer and Foot Pedal Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: 115 volts, 20 amps Required Accessories: vacuum pump, supporting base Built-In Options: Pressure control module, foot pedal and purge/fill control module Compliance: ETL, UL 3101-1/61010-1 |
Labconco - 5080120
[+] View Model Specifications| Depth | 37.6 in |
| Height | 38.5 in |
| Width | 108.6 in |
| Internal Width | 81.8 in |
| Power Requirements | 115 volts, 60 Hz, 35 Amps |
| Number of Glove Ports | 4 |
| Glove Box Construction | Stainless Steel |
| Glove Box Type | Stand Alone |
| Ducting | None |
| Additional Model Specifications | Protector Stainless Steel Double Controlled Atmosphere Glove Box with Pressure Control Module, Auto Purge/Fill Sequencer and Foot Pedal Filter Type: None Primary Application: Work with atmosphere-sensitive materials Electrical Requirements: Domestic Power Cord & Plug: 1 each 115 volts, 15 amps; 1 each 115 volts, 20 amps Required Accessories: vacuum pump, supporting base Built-In Options: Pressure control module, foot pedal and purge/fill control module Compliance: ETL, UL 3101-1/61010-1 |
