Atago - Digital Refractometers
Manufactured by Atago
Designed to be highly accurate and provide reliable measurements while facilitating a simple measurement method for the operator.
ATAGO Digital bench-top Refractometers are designed to be highly accurate and provide reliable measurements while facilitating a simple measurement method for the operator. When compared to analog and Abbe Refractometers, the large digital readout makes reading the measurement value faster and easier.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Asked byMansoor
Refractometers Service ProvidersView All (4)
Documents & ManualsView All Documents
Features of Digital Refractometers

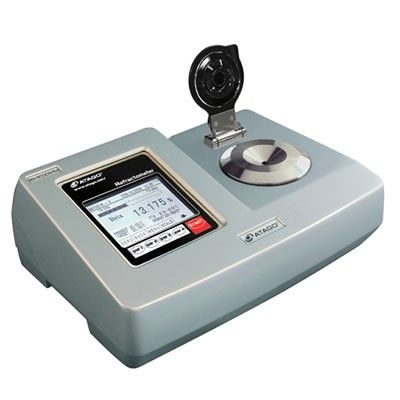

RX-5000Α-Plus
- Since the RX-5000Α-Plus has a thermo-module to control temperature, a constant temperature water bath is not necessary.
- The measurement starts automatically after the sample reaches your targeted temperature.
- The refractive index and Brix at your targeted temperature are speedily displayed.
- High Brix ± 0.01% and refractive index ± 0.00002 accuracy can be obtained.
- The RX-5000Α-Plus displays the top-and-bottom-limit-bar for your set control range.
- If the measurement value differs from that of your Standard Liquid or the other refractometer, it can be adjusted in a certain range.
- 60 kinds of user scales can be input according to your sample.
- The RX-5000Α-Plus is capable of calling up 30 latest measurements.
- Since the RX-5000Α ( alpha ) has a thermo-module to control temperature, a constant temperature water bath is not necessary.
- The measurement starts automatically after the sample reaches your targeted temperature.
- The refractive index and Brix at your targeted temperature are speedily displayed.
- High Brix ± 0.03% and refractive index ± 0.00004 accuracy can be obtained.
- The RX-5000Α ( alpha ) displays the top-and-bottom-limit-bar for your set control range.
- If the measurement value differs from that of your Standard Liquid or the other refractometer, it can be adjusted in a certain range.
- 60 kinds of user scales can be input according to your sample.
- The RX-5000Α ( alpha ) is capable of calling up 30 latest measurements.
- Special model of RX-5000Α allows pre-programming of an additional scale (such as honey moisture, inverted sugar%, salt concentration or butyro) in addition to Refractive Index and Brix (%) at customer's request.
- Brix
- Inverted sugar concentration
- HFCS-55 ( High Fructose Corn Syrup )
- HFCS-42 ( High Fructose Corn Syrup )
General Specifications
There are no General Specifications available.
Series Modals
Atago - RX-007A
[+] View Model Specifications| Depth | 26 cm |
| Refractometer Type | Digital Benchtop |
| Height | 14 cm |
| RI Range | 1.33015 to 1.3415 nD |
| RI Accuracy | 0.00001 nD |
| Width | 37 cm |
| Power Requirements | AC100V to 240V, 50/60Hz |
| RI Resolution | 0.000001 nD |
| Brix Range | 0 to 5 % |
| Brix Accuracy | 0.005 % |
| Resolution (%Brix) | 0.001 % |
| Weight | 6.9 kg |
| Part Number | 3921 |
| Temperature Measurement Range | 15 to 30 °C |
| Refractometer Interface | RS-232C |
| Additional Model Specifications |
Atago - RX-5000
[+] View Model Specifications| Depth | 26 cm |
| Refractometer Type | Digital Benchtop |
| Height | 14 cm |
| RI Range | 1.327 to 1.58 nD |
| RI Accuracy | 0.00004 nD |
| Width | 37 cm |
| Power Requirements | AC100V to 240V, 50/60Hz |
| RI Resolution | 0.00001 nD |
| Brix Range | 0 to 100 % |
| Brix Accuracy | 0.03 % |
| Resolution (%Brix) | 0.01 % |
| Weight | 6.4 kg |
| Part Number | 3281 |
| Temperature Measurement Range | 5 to 60 °C |
| Refractometer Interface | RS-232C |
| Additional Model Specifications |
Atago - RX-5000A
[+] View Model Specifications| Depth | 26 cm |
| Refractometer Type | Digital Benchtop |
| Height | 14 cm |
| RI Range | 1.327 to 1.58 nD |
| RI Accuracy | 0.00004 nD |
| Width | 37 cm |
| Power Requirements | AC 100 to 240V, 50 / 60Hz |
| RI Resolution | 0.00001 nD |
| Brix Range | 0 to 100 % |
| Brix Accuracy | 0.03 % |
| Resolution (%Brix) | 0.01 % |
| Weight | 6.4 kg |
| Part Number | 3261 |
| Temperature Measurement Range | 5 to 60 °C |
| Temperature Compensation Range | 5 to 60 °C |
| Refractometer Interface | RS-232C |
| Additional Model Specifications |
Atago - RX-5000A-Bev
[+] View Model Specifications| Depth | 26 cm |
| Refractometer Type | Digital Benchtop |
| Height | 14 cm |
| RI Range | 1.327 to 1.58 nD |
| RI Accuracy | 0.00004 nD |
| Width | 37 cm |
| Power Requirements | AC 100 to 240V, 50 / 60Hz |
| RI Resolution | 0.00001 nD |
| Brix Range | 0 to 100 % |
| Brix Accuracy | 0.03 % |
| Resolution (%Brix) | 0.01 % |
| Weight | 6.4 kg |
| Part Number | 3271 |
| Temperature Measurement Range | 5 to 60 °C |
| Temperature Compensation Range | 5 to 60 °C |
| Refractometer Interface | RS-232C |
| Additional Model Specifications |
Atago - RX-5000A-Plus
[+] View Model Specifications| Depth | 26 cm |
| Refractometer Type | Digital Benchtop |
| Height | 14 cm |
| RI Range | 1.327 to 1.58 nD |
| RI Accuracy | 0.00002 nD |
| Width | 37 cm |
| Power Requirements | AC100V to 240V, 50/60Hz |
| RI Resolution | 0.00001 nD |
| Brix Range | 0 to 100 % |
| Brix Accuracy | 0.01 % |
| Resolution (%Brix) | 0.005 % |
| Weight | 6.4 kg |
| Part Number | 3266 |
| Temperature Measurement Range | 5 to 60 °C |
| Temperature Compensation Range | 5 to 60 °C |
| Refractometer Interface | RS-232C |
| Additional Model Specifications |
Atago - RX-7000A
[+] View Model Specifications| Depth | 26 cm |
| Refractometer Type | Digital Benchtop |
| Height | 14 cm |
| RI Range | 1.325 to 1.7 nD |
| RI Accuracy | 0.0001 nD |
| Width | 37 cm |
| Power Requirements | AC100V to 240V, 50/60Hz |
| Brix Range | 0 to 100 % |
| Brix Accuracy | 0.1 % |
| Weight | 6.9 kg |
| Part Number | 3262 |
| Temperature Measurement Range | 5 to 70 °C |
| Temperature Compensation Range | 5 to 70 °C |
| Refractometer Interface | RS-232C |
| Additional Model Specifications |
Atago - RX-9000A
[+] View Model Specifications| Depth | 26 cm |
| Refractometer Type | Digital Benchtop |
| Height | 14 cm |
| Width | 37 cm |
| Power Requirements | AC100V to 240V, 50/60Hz |
| Brix Range | 0 to 100 % |
| Weight | 6.9 kg |
| Part Number | 3263 |
| Temperature Measurement Range | 5 to 70 °C |
| Temperature Compensation Range | 5 to 70 °C |
| Refractometer Interface | RS-232C |
| Additional Model Specifications | [u]Measurement Accuracy[/u]
Refractive index: ±0.00004 (nD 1.33299 to 1.42009 at Measurement Temperature 10.00 to 30.00°C) Refractive index: ±0.00010 (For ranges other than the above) Brix: ±0.03% (Brix 0.00 to 50.00% at Measurement Temperature 10.00 to 30.00°C) Brix: ±0.05% (Brix 50.01 to 95.00% at Measurement Temperature 10.00 to 30.00°C) Brix: ±0.10% (For ranges other than the above, with Sucrose solution by MODE1) |
