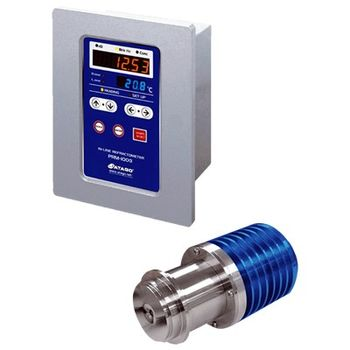

Atago - PRM-100Α
Manufactured by Atago
Incorporated in piping of manufacturing plants, liquid mixing devices, and washing apparatuses to continuously measure the concentration of liquids.
These in-line models can be incorporated in piping of manufacturing plants, liquid mixing devices, and washing apparatuses to continuously measure the concentration of various liquids. They are suitable for use in the control of mixing, concentration, fermentation, and control of the concentration of water-based or alkali-based detergent, etc.
Active Questions & AnswersAsk a Question
There are no current Discussions
Refractometers Service ProvidersView All (4)
Documents & ManualsView All Documents
Features of PRM-100Α
The unit measures the refraction of light generated between the prism surface and a liquid sample. The PRM-100Α is upgraded from the PRM-85 in the following aspects:
- Wider than ever 0.0 to 100.00% Brix range
- Improved measurement accuracy: Brix ±0.05%, nD ±0.00010
- Two options for setting the minimum indication decimal place
- Simple two-piece construction: detection section and operation display section
- Easy-to-read color display panel.
- The prism is specially designed to prevent solid materials from collecting on the surface, even after extended periods of use.
General Specifications
| Depth | 12.8 cm |
| Refractometer Type | Inline Process |
| Height | 26.6 cm |
| RI Range | 1.32 to 1.557 nD |
| RI Accuracy | 0.0001 nD |
| Width | 12.8 cm |
| Power Requirements | AC100V to 240V, 50/60Hz |
| Brix Range | 0 to 100 % |
| Brix Accuracy | 0.05 % |
| Weight | 3.3 kg |
| Part Number | 3574 |
| Temperature Measurement Range | 5 to 100 °C |
