Atago - Clinical Refractometers
ATAGO Clinical Refractometers use special scales for clinical purposes such as specific gravity of urine, and total protein in serum or plasma.
Active Questions & AnswersAsk a Question
There are no current Discussions
Refractometers Service ProvidersView All (4)
Documents & ManualsView All Documents
Features of Clinical Refractometers

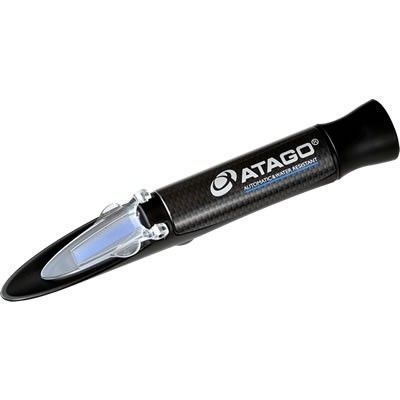

MASTER-SUR/NΑ The MASTER-SUR/NΑ is designed for clinical purposes: "Serum Protein", "Specific Gravity of Urine" and "Refractive Index". The plastic body model is designed to be resistant salty and acidic samples. It is an Automatic Temperature Compensation (ATC) model with water resistant properties (IP65).
MASTER-SUR/NM The MASTER-SUR/NM is designed for clinical purposes: "Serum Protein", "Specific Gravity of Urine" and "Refractive Index". The plastic body model is designed to be resistant salty and acidic samples. The MASTER-SUR/NM is a good alternative choice when the water resistant feature is not a priority and the Temperature Compensation will be carried out manually. Not equipped with the Automatic Temperature Compensation feature.
MASTER-URC/NΑ The new MASTER-URC/NΑ is designed to quickly and easily measure Urine Specific Gravity with just a single drop of sample. The new plastic body design is resistant against corrosion from salty and acidic samples, and incorporates an improved optics system for higher contrast and better clarity. Simple to use, lightweight, and portable! This model is an advanced version of the MASTER-URC/NM, featuring a water resistant (IP65) design (except eyepiece) and Automatic Temperature Compensation (ATC).
MASTER-URC/NM The new MASTER-URC/NM is designed to quickly and easily measure Urine Specific Gravity with just a single drop of sample. The new plastic body design is resistant against corrosion from salty and acidic samples, and incorporates an improved optics system for higher contrast and better clarity. Simple to use, lightweight, and portable! The MASTER-URC/NM is a good alternative choice when the water resistant feature is not a priority and the Temperature Compensation will be carried out manually. Not equipped with the Automatic Temperature Compensation feature.
PEN-URINE S.G. The Digital Hand-Held Urine Specific Gravity "Pen" Refractometer PEN-URINE S.G. utilizes the refractive index method to measure the specific gravity of urine. The PEN type refractometer is extremely easy to use. There are 2 ways to measure the sample : Dip the tip into the sample and press the START key OR press the START key and touch the tip into the sample.
PAL-10S The PAL-10S is a digital hand-held compact refractometer to measure urine S.G. To operate it, simply place a drop of urine on the prism top and press the "Start"key. Then, the urine S.G. value will be displayed on the LCD instantly.
PAL-USG (DOG) The PAL-USG (DOG) is designed for measureing Urine Specific Gravity for dog.
PAL-USG (CAT) The PAL-USG (CAT) is designed for measureing Urine Specific Gravity for cat.

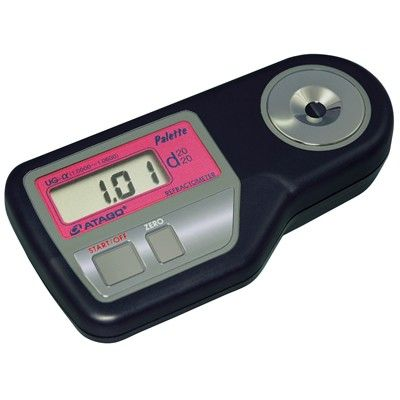

UG-Α This new Digital Urine Specific Gravity Refractometer UG-Α (alpha) is an upgraded version of the late UG-1. The minimum scale indication has been improved to display up to the fourth decimal. After pressing the START key, with the sample placed on the prism, the measurement values will be displayed on the LCD streaming as an electric message board. The body and the display's frame colors has been renewed too.
General Specifications
There are no General Specifications available.
Series Modals
Atago - MASTER-SUR/NA
[+] View Model SpecificationsDepth | 3.4 cm |
Refractometer Type | Handheld Analog (Traditional) |
Height | 20.3 cm |
RI Range | 1.33 to 1.366 nD |
RI Accuracy | 0.0005 nD |
Width | 3.2 cm |
RI Resolution | 0.0005 nD |
Weight | 105 g |
Part Number | 2771 |
Temperature Measurement Range | 10 to 30 °C |
Additional Model Specifications | Urine Specific Gravity: 1.000 to 1.060 ±0.001 Serum protein scale: 0.0 to 12.0 g/100ml ±0.2 g/100ml |
Atago - MASTER-SUR/NM
[+] View Model SpecificationsDepth | 3.4 cm |
Refractometer Type | Handheld Analog (Traditional) |
Height | 20.3 cm |
RI Range | 1.333 to 1.366 nD |
Width | 3.2 cm |
RI Resolution | 0.0005 nD |
Weight | 105 g |
Part Number | 2773 |
Additional Model Specifications | Urine Specific Gravity: 1.000 to 1.060 Serum protein scale: 0.0 to 12.0 g/100ml |
Atago - MASTER-URC/NA
[+] View Model SpecificationsDepth | 3.4 cm |
Refractometer Type | Handheld Analog (Traditional) |
Height | 20.7 cm |
RI Range | 1.333 to 1.356 nD |
RI Accuracy | 0.0005 nD |
Width | 3.2 cm |
RI Resolution | 0.001 nD |
Weight | 110 g |
Part Number | 2791 |
Temperature Measurement Range | 10 to 30 °C |
Additional Model Specifications | Urine Specific Gravity: 1.000 to 1.050 ±0.001 |
Atago - MASTER-URC/NM
[+] View Model SpecificationsDepth | 3.4 cm |
Refractometer Type | Handheld Analog (Traditional) |
Height | 20.7 cm |
RI Range | 1.333 to 1.356 nD |
Width | 3.2 cm |
RI Resolution | 0.001 nD |
Weight | 110 g |
Part Number | 2793 |
Additional Model Specifications | Urine Specific Gravity: 1.000 to 1.050 |
Atago - PAL-10S
[+] View Model SpecificationsDepth | 31 mm |
Refractometer Type | Handheld Digital |
Height | 109 mm |
Width | 55 mm |
Power Requirements | 2 x AAA Batteries |
Weight | 100 g |
Part Number | 4410 |
Temperature Measurement Range | 10 to 35 °C |
Additional Model Specifications | Urine Specific Gravity: 1.000 to 1.060 ±0.001 |
Atago - PAL-USG (CAT)
[+] View Model SpecificationsDepth | 31 mm |
Refractometer Type | Handheld Digital |
Height | 109 mm |
Width | 55 mm |
Power Requirements | 2 x AAA Batteries |
Weight | 100 g |
Part Number | 4511 |
Temperature Measurement Range | 10 to 35 °C |
Additional Model Specifications | Urine Specific Gravity: 1.000 to 1.080 |
Atago - PAL-USG (DOG)
[+] View Model SpecificationsDepth | 31 mm |
Refractometer Type | Handheld Digital |
Height | 109 mm |
Width | 55 mm |
Power Requirements | 2 x AAA Batteries |
Weight | 100 g |
Part Number | 4510 |
Temperature Measurement Range | 10 to 35 °C |
Additional Model Specifications | Urine Specific Gravity: 1.000 to 1.060 ±0.001 |
Atago - PEN-URINE S.G.
[+] View Model SpecificationsDepth | 1.8 cm |
Refractometer Type | Handheld Digital |
Height | 16 cm |
Width | 3.8 cm |
Power Requirements | 1 × AAA Batteries |
Weight | 70 g |
Part Number | 3741 |
Temperature Measurement Range | 10 to 40 °C |
Additional Model Specifications | Urine Specific Gravity: 1.0000 to 1.0600 ±0.0010 |
Atago - UG-A
[+] View Model SpecificationsDepth | 17 cm |
Refractometer Type | Handheld Digital |
Height | 4 cm |
Width | 9 cm |
Power Requirements | 006P Dry battery ( 9V ) |
Weight | 300 g |
Part Number | 3464 |
Temperature Measurement Range | 10 to 35 °C |
Additional Model Specifications | Urine Specific Gravity: 1.0000 to 1.0600 ±0.0010 |
