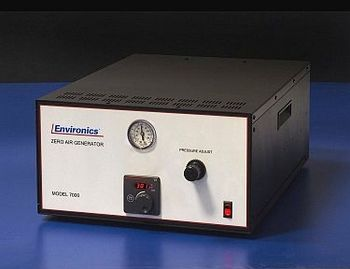

Environics - Series 7000
Zero Air Generator
Active Questions & AnswersAsk a Question
There are no current Discussions
Zero Air Service ProvidersView All (7)
Documents & ManualsView All Documents
Features of Series 7000
The air is suitable for use as: a zero reference calibration gas, ultra-pure combustion air for flame ionization detector, and service air for pneumatically operated valves. The system is capable of delivering air free from water vapor, particulates, sulfur dioxide (SO2), Hydrogen Sulfide (H2S), Oxides of Nitrogen (NO), Nitrogen Dioxide (NO2), Ozone (O3), Carbon Monoxide (CO) and Hydrocarbons (HC).
The state-of-the-art PSA molecular sieve removes water and produces air with a dew point of less than -30°C. An adjustable drain interval negates the potential of excess water build-up. The Series 7000 is available with an optional dew point transmitter.
NEW! The Zero Air Generator now includes a color-changing moisture indicator (visible on the front panel, see updated P&ID below). If water vapor is present, the indicator will change from white to blue. When the water vapor is removed, the indicator will revert to its white color.
The Series 7000 consists of an oil-less piston pump and scrubbers to remove SO2, NO, NO2, O3 and H2S. Optional scrubbers are available to remove CO and Hydrocarbons.
A ballast tank is standard in the system. It extends both the pump and scrubber life by cycling the pump automatically only as needed.
The Series 7000 offers automatic pneumatic control. It will automatically turn on and off based on the demand of the system that it is supporting.
Operation of the system has been simplified so that the operator can set the output pressure desired through a regulator on the front panel of the system. The output pressure gauge is located to accurately reflect the output pressure of the system.
The Zero Air Generator is designed to fit into a 19" rack with optional slides or used in a portable mode. Strict attention has been paid to the weight of all components to make this system as light as possible.
Recommended ZAG Maintenance Schedule (assuming average use and conditions)
In order to keep your ZAG working at the highest level, we recommend the following maintenance schedule, assuming average system conditions and use.
- Fan filter should be cleaned by blowing out the filter monthly.
- The pollution scrubber/converter and secondary scrubber media should be replaced yearly.
- The input and output particle filters should be replaced yearly.
General Specifications
| Depth | 23.5 in |
| Flow Rate | 20 L/min |
| Height | 8.75 in |
| Maximum Pressure | 30 psi |
| Temperature Range | 300 to 482 °F |
| Width | 19 in |
| Power Requirements | 100 VAC to 250 VAC, (50/60 Hz) |
| Peak Power | 500 W |
| Weight | 45 lbs |
| Gas Generated | Zero Air |
Additional Specifications
Output: 1-20 LPM @ 30 psig (2.07Bar)
Dewpoint:
<-20°C up to 10 LPM
<-10°C up to 20 LPM
Dryer: Membrane dryer lifetime of greater than 10 years
Output concentration:
<0.5 ppb SO2
<0.5 ppb NO
<0.5 ppb NO2
<0.5 ppb O3
<0.025 ppm CO (requires optional scrubber)
<0.02 ppm Hydrocarbons (requires optional scrubber)
Pump: Internal long-life, oil-less piston pump
HC Scrubber Temperature: 300°C to 482°C (Adjustable)
Operating Temperatures:
4°C - 44°C
Performance Temperature Range:
15°C - 30°C
