This product is Discontinued

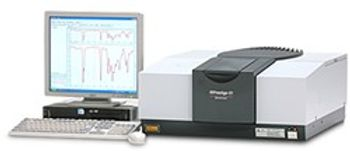

Shimadzu - IRPrestige-21

Manufactured by  Shimadzu
Follow this Equipment

Fourier Transform Infrared Spectrophotometer

Shimadzu was the first company to offer dynamic auto-alignment as a standard feature in an FTIR spectrometer in its' price range. With state-of-the-art technology, the Shimadzu dynamic alignment system continuously maintains optimal alignment during data acquisition, ensuring consistently reproducible spectra without the need for tedious mechanical adjustments.
Active Questions & AnswersAsk a Question

Recent Questions & Answers

avatar placemark

Asked bynmbahadur

Spare Part of IR Prestige-21, Shimadzu Corporation, Japan
View All Questions & Answers (1)

Need Equipment Support?

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of IRPrestige-21
Sensitivity

  • High Signal to Noise Ratio;40,000:1 or better(NOTE 1)
  • High Energy Ceramic Light Source
  • High Throughput Optics
  • High Sensitivity DLATGS Detector
   Reliability

  • Advanced Dynamic Alignment
  • Sealed and Dessicated Interferometer
  • Self Diagnostics & Status Monitoring
  • JP/EP/ASTM Validation
   Accessory

  • NIR/MIR/FIR
  • Automatic Accessory Recognition-QuickStart Accessories
  • 3 Detector Selections for Various Applications
  • Wide Varieties of Accessories and High Performance IR Microscope
   Software

  • 32bit Windows based IRsolution
  • High Performance and Easy Operation
  • Audit-trail
  • FDA 21 CFR Part 11 Compliance(NOTE 2)
General Specifications
Depth 680 mm
Height290 mm
Width 600 mm
Weight54 kg
Additional Specifications

Interferometer:
Michelson interferometer (30 degree incident angle)
Advanced Dynamic alignment system
Sealed and desiccated interferometer with an automatic dryer
Optical system: Single beam optics
Beam splitter:
Germanium-coated KBr plate for Middle IR (Standard)
Germanium-coated CsI plate for Middle/Far IR (Optional)
Silicon-coated CaF2 plate for Near IR (Optional)
Light source: Air Cooled Ceramic for Middle/Far IR with 3 years guarantee (Standard)
Tungsten lamp for Near IR (Optional)
Detector:
DLATGS detector with Temperature Control for Middle/Far IR (Standard)
MCT(Hg-Cd-Te) detector with Liquid Nitrgen Cooling for Middle IR(Optional)
InGaAs detector for Near IR (Optional)
Wavenumber range:
7,800 - 350 cm-1
12,500 - 240 cm-1 (Optional. See Figure for detail)
Resolution:
0.5 cm-1, 1 cm-1, 2 cm-1, 4 cm-1, 8 cm-1, 16 cm-1 (Middle/Far IR)
2 cm-1, 4 cm-1, 8 cm-1, 16 cm-1 (Near IR)
S/N ratio: 40,000: 1 and higher
(Peak-to-peak, 4 cm-1 resolution, around. 2100 cm-1, 1 minute scan)
Mirror speed: 3-step selection of 2.8, 5, or 9 mm/sec
Scanning at 4 cm-1 takes from 2-3 sec
Data sampling: He-Ne laser with 30 months guarantee
Gain control: Automatic or manual from x1 - x128
