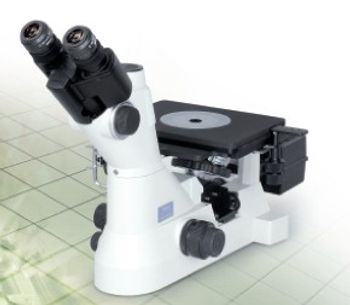

Nikon - Eclipse MA100

Manufactured by  Nikon
Follow this Equipment

Outstanding materials analysis at all magnification levels.

The MA100 is a new compact inverted microscope designed for the routine observation and analysis of prepped material and metallurgical samples in the automotive, aerospace, medical device and electronics industry. The small size footprint makes it an affordable instrument with outstanding optical performance, ideal for in-line sample inspection for the manufacturing, production and assembly environments that require quality control of materials.
Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support
Features of Eclipse MA100

  • Powerful NIS-Elements Imaging Software
  • Durable Stage
  • CFI60 Optical System
  • Aperture Diaphram
  • Adjustable Mirror
  • Polarizer/Analyzer
  • Integration with Digital Sight Camera System
General Specifications
Depth 663 mm
Height382 mm
Width 228 mm
Peak Power96 VA
Weight9 kg
Microscope TypeInverted
Additional Specifications

Optics:
CFI60 optics
Observation image:
Upright back image
Observation method:
Brightfield and simple polarizing (when using MA-P/A Simple Polarizing Set)
Focusing section:
Vertical action revolver (fixed stage)
Single-axis coarse/fine adjustment handle with 8.5mm stroke (coarse adjustment of 37.7mm per turn, fine adjustment of 0.2mm per turn)
Nosepiece:
Brightfield 5-position nosepiece

[u]Stage [/u]
MA-SP Plain Stage:
170 x 230mm (includes two holders for acrylic samples Φ30mm aperture, crescent aperture) Can be combined with MA-SRSH1 Universal Specimen Holder or MA-SH3 Specimen Holder 3.
TI-SM Mechanical Stage CH:
126 x 80mm stroke; Handle can be attached on the right or left side of the stage Can be combined with MA-SH1 Specimen Holder 1, MA-SH2 Specimen Holder 2, or C-HU Universal Holder.
MA-SR Rectangular Stage:
50 x 50mm stroke (includes two sample holders at Φ20mm and 40mm apertures) and handle fixed on right side. Can be combined with MA-SRSH1 Universal Specimen Holder or MA-SH3 Specimen Holder 3.

Illuminator:
Internal power supply 6V 30W Halogen Lamp (long-life type)
Condenser built-in (lever operated) Φ25mm filter (includes NCB11 and ND4) can be inserted.
Eyepiece tube:
Built-in mirror type, 45° depression angle and 50 to 75mm interpupillary adjustment
