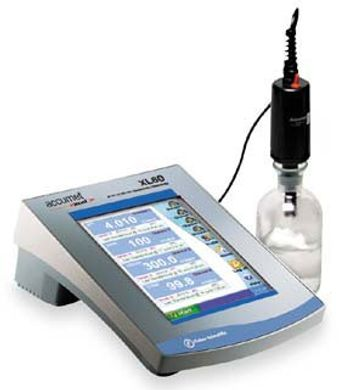

Fisher Scientific - XL60

Manufactured by  Fisher Scientific
Follow this Equipment

A complete electrochemistry lab in one instrument, with unrivaled usability and connectivity


  1. Windows-CE*-driven, full-color touchscreen provides unmatched ease of use in operation and setup
  2. Switchable numeric display with complete measurement data or graphic display mode for at-a-glance view of measured data over time
  3. User prompts and context-specific HELP screens easily guide user through operation
  4. Extensive setup screens allow you to customize the meter precisely to your needs
Active Questions & AnswersAsk a Question

Recent Questions & Answers

avatar placemark

Asked bymark.e.harris9977

XL60 display dead?
avatar placemark

Asked byarandles

Bi-directional RS232 Communication Capability
View All Questions & Answers (2)

pH Meters Service ProvidersView All (13)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of XL60
Top-of-the-line, research-grade meter

  • Measures and displays four parameters simultaneously
  • DO mode calculates five-day BOD testing, OUR, and SOUR
  • Conductivity mode accepts two-cell and four-cell probes
  • ISE mode offers direct and indirect measurements
  • pH mode accepts standard or accuFet* nonglass electrodes
   XL60 gives you two pH/mV/ISE inputs, two- or four-cell conductivity input, plus dissolved oxygen input

  • Advanced circuitry and shielding prevent crosstalk and other interference
  • 1000-datapoint memory storage, unprecedented connectivity to printer, computer and LANs
  • Password security protects your data from accidental deletion
   Full-function pH and mV capabilities

  • Extended pH range: -2 to +20pH
  • Resolution to 0.001pH
  • Calibration at up to six points for exceptional accuracy
   ISE measurements are easy and versatile

  • Ion name is displayed right on the screen—you'll never have the wrong curve
  • Automatically runs direct or addition/subtraction methods
  • Screen prompts allow easy volume/concentration entry, providing concentration data without tedious paper calculations
   Dissolved Oxygen mode features extra flexibility

  • Optional self-stirring BOD probe and on-screen prompts make BOD, SOUR, and OUR methods easy
  • Easy to use for simple dissolved oxygen measurements from 0-60 mg/L, 0 to 600% saturation
  • Temperature, salinity and pressure corrections are calculated automatically
   Measure Conductivity, Salinity or Resistivity

  • Selectable temperature coefficients, cell constants and display units ensure accurate readings throughout a broad range of samples
  • Measure conductivity from 0 to 5 x 10cµS/cm, salinity from 0 to 90ppt, resistivity from 3ohms·cm to 100megohm·cm
   Extensive GLP capabilities

  • Customizable printer/computer output
  • 1000-reading datalog capability
  • Print Setup lets you print exactly what you want, when you want
  • Displays time in 12- or 24-hour format, date in U.S. or international format
  • USB port lets you connect keyboard, mouse, or trackball for meter control, or connect printer or PC for data output RS-232 serial port lets you connect to PCs or printers without USB, or frees computer USB port while the meter is in use
  • Ethernet allows unmatched LAN connectivity plus software upgrades
General Specifications
Depth 9.25 in
mV Range-2000 to 2000
Height3.5 in
mV Resolution0.1 mV
pH Range-2 to 20
Width 6.5 in
pH ResolutionSelectable
Power Requirements 110V/220V 50/60Hz
Weight1.2 kg
Temperature Accuracy0.2 °C
mV Accuracy±0.2
pH Accuracy± 0.002
pH Meter Temperature Range-10 to 110 °C
pH Meter TypeBenchtop
Additional Specifications

Modes: pH (Dual BNC Channels), mV, Dissolved Oxygen, Concentration, Conductivity, TDS, Salinity, Resistivity, Temperature
Display: Touchscreen; 4.5W x 6 in.H (11 x 15cm). Measurement Characters: 0.75 in.H (1.9cm). Other Data: 0.25 in.H (0.6cm)
Keypad/Controls: Touchscreen and External Keypad
Menus: Microsoft Windows CE* pull-down menu options; extensive Help screens.
Remote Access: Parameters remotely controllable and monitorable via Windows CE Remote Application Interface.
Connectivity: Ethernet port connectivity to LAN. USB Host/Device 1.1 connectivity to printer, PC, bar code scanner, mouse, keypad etc.
Data Memory: External: USB storage device connectivity, SDcard Memory Interface: ver 1.0, RS-232 connectivity (FSDASXL software sold separately).
Data Output: On Stable; via timer; Manual
Special Features: Powerup self test; error messages; alarm, audible hi/low alarm, real-time clock/calendar.

[u]pH Mode[/u]
Buffer Recognition: Manual or Automatic: U.S., Euro, NIST, or Custom
Calibration Points: 1 to 6
FET Electrode Input: Yes

[u]Ion Mode (Concentration)[/u]
Range/Resolution: 1 x 10-6 to 9.99 x 1010/0.1, 0.01, 0.001
Relative Accuracy: ±0.17n% (where n = the number of electrons exchanged in the electrode reaction process)
Calibration Points: 5
Incremental Methods: Known addition, analyte addition, known subtraction, analyte subtraction

[u]Conductivity Mode[/u]
Cell Constants: 0.1cm-1, 1.0cm-1, 10cm-1
Conductivity Range: 0 to 5 x 105µS/cm
Resistivity Range: 3ohms·cm to 100megohms·cm
Salinity Range: 0 to 90ppt
Relative Accuracy: ±0.5% of Full Scale reading ±1 least significant digit

[u]Dissolved Oxygen Mode[/u]
Range/Resolution: 0-60mg/L, 0-600% saturation/0.01mg/L, 0.1% saturation
Relative Accuracy: ±0.1mg/L ±1 least significant digit, ±0.1% saturation
Inputs: 2 BNC/pin, 2 ATC, 3 DIN (FET, 2- or 4-cell cond., DO)
Outputs: USB Host/Device, Bidirectional RS-232 (using FSDASXL software), Ethernet, SD CARD
