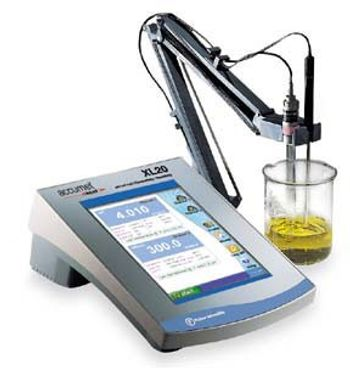

Fisher Scientific - XL20

Manufactured by  Fisher Scientific
Follow this Equipment

Excel XL20 pH/mV/Temperature/Conductivity/Resistivity Meters

Dual-channel inputs, multiparameter measurement, excellent connectvity

Unrivaled usability and connectivity

  1. Windows CE*-driven, full-color touchscreen provides unmatched ease of use in operation and setup
  2. Switchable numeric display with complete measurement data or graphic display mode for at-a-glance view of measured data over time
  3. User prompts and context-specific HELP screens easily guide user through operation
  4. Extensive setup screens allow you to customize the meter precisely to your needs
Active Questions & AnswersAsk a Question

There are no current Discussions

pH Meters Service ProvidersView All (13)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of XL20
Dual channel measurement and display for fast and flexible research-grade analyses
  • Automatic temperature correction: ATC probe in each channel
  • Accepts two-cell and four-cell conductivity probes
  • Built-in replatinizing circuit
  • Provides inputs for two- or four-cell conductivity probe, pH/mV electrode, ATC probe, plus an input for the accuFet* nonglass electrode
  • Advanced circuitry and shielding prevent crosstalk and other interference
  • Password security to protect data from deletion
Versatile Conductivity Mode
  • Measure conductivity from 0 to 5 x 10cµS/cm, resistivity from 3ohms·cm to 100megohms·cm, salinity from 0 to 60ppt
  • Selectable temperature coefficients, cell constants and display units ensure accurate readings throughout a broad range of samples
  • Accepts simple two-cell probes or versatile four-cell probes for greater linearity over a wide range
  • Use k=1 cells for general purpose, 0.1 cells for high purity water, or 10 for brines or other concentrated solutions
Full-function pH and mV capabilities
  • Extended pH range: -2 to +20pH
  • Adjustable resolution to 0.001pH
  • Reads to 0.1mV for accurate titrations and ORP readings, too
  • Calibration at up to 6 points for exceptional accuracy of ±0.002pH
Extensive GLP capabilities
  • Customizable printer/computer output
  • 1000-reading datalog capability
  • Print Setup lets you print exactly what you want, when you want
  • Displays time in 12- or 24-hour format, date in U.S. or international format
  • USB port lets you connect keyboard, mouse, or trackball for meter control, or connect printer or PC for data output
  • RS-232 serial port lets you connect to PCs or printers without USB, or frees computer USB port while using the meter is in use
  • Ethernet allows unmatched LAN connectivity plus software upgrades
General Specifications
Depth 9.25 in
mV Range-2000 to 2000
Height3.5 in
mV Resolution0.1 mV
pH Range-2 to 20
Width 6.5 in
pH ResolutionSelectable
Power Requirements 110V/220V 50/60Hz
Temperature Resolution0.1 °C
Weight1.2 kg
Temperature Accuracy0.2 °C
mV Accuracy±0.2
pH Accuracy± 0.002
pH Meter Temperature Range-10 to 110 °C
pH Meter TypeBenchtop
Additional Specifications

Display: 640 x 480 pixel STN Color LCD; 41/2W x 6 in.H (11 x 15cm). Measurement Characters: 3/4 in.H (1.9cm). Other Data: 1/4 in.H (0.6cm)
Keypad/Controls: Touchscreen and External Keypad
Menus: Microsoft Windows CE* pull-down menu options; extensive Help screens.
Remote Access: Parameters remotely controllable and monitorable via Windows CE Remote Application Interface.
Connectivity: Ethernet port connectivity to LAN. USB Host/Device 1.1 connectivity to printer, PC, bar code scanner, mouse, keypad etc.
Data Memory: External: USB storage device connectivity, SDcard Memory Interface ver 1.0, RS-232 connectivity (FSDASXL software sold separately).
Data Output: On Stable; via timer; Manual
Features: User upgradable software (Flash ROM via Ethernet). Powerup self test; error messages; alarm, real-time clock/calendar.

[u]pH Mode[/u]
Buffer Recognition: Manual or Automatic: U.S., Euro, NIST, or Custom
Calibration Points: 1 to 6
FET Electrode Input: Yes

[u]Conductivity Mode[/u]
Cell Constants: 0.1cm-1, 1.0cm-1, 10cm-1
Conductivity Range: 0 to 5 x 105µS/cm
Resistivity Range: 3ohms·cm to 100megohms·cm
Salinity Range: 0 to 90ppt
TDS Range: 0.0 to 500.0ppt
Relative Accuracy: ±0.5% of Full Scale reading ±1 least significant digit
Inputs: 1 BNC/pin, 1 ATC, 2-pin cond., 2 DIN (FET, 4-cell cond.)
Outputs: USB Host/Device, Ethernet, SDCARD
