Kinematica - Microtron Series
Manufactured by Kinematica
No Documents
MICROTRON Series - Lab Mixer / Lab Blender
The systems MICROTRON® MB 550 and MB 800 are specially designed for mixing,dispersing, homogenizing, emulsifying and size reduction of cuttable materials.
Four different attachments made from glass with volumes of 125 ml, 250 ml, 500 ml and 1000 ml are available for the MICROTRON® MB 550. Attachments made from stainless steel with volumes of 2000 ml and 4000 ml are available for the MICROTRON® MB 800. Both systems are safety laboratory devices– grounded, double safety isolated, radio screened. A safety system prevents uncontrolled starting and therewith personal injuries - the mixer can only be started with well attached safety hut or lid. In case the hut or lid will be removed during operation the device will be stopped automatically. The systems comply with the CE guidelines for industrial machines. Both systems are designed to withstand high loads; they are space saving and always ready to use.
Four different attachments made from glass with volumes of 125 ml, 250 ml, 500 ml and 1000 ml are available for the MICROTRON® MB 550. Attachments made from stainless steel with volumes of 2000 ml and 4000 ml are available for the MICROTRON® MB 800. Both systems are safety laboratory devices– grounded, double safety isolated, radio screened. A safety system prevents uncontrolled starting and therewith personal injuries - the mixer can only be started with well attached safety hut or lid. In case the hut or lid will be removed during operation the device will be stopped automatically. The systems comply with the CE guidelines for industrial machines. Both systems are designed to withstand high loads; they are space saving and always ready to use.
Active Questions & AnswersAsk a Question
There are no current Discussions
Mixers Service ProvidersView All (2)
Documents & Manuals
There are no Documents or Manuals available.
Features of Microtron Series
- powerful drive unit with high temperature safe universal motor with fan
- Safety system
- Electronic speed control
- Stepless speeds adjustable
- Drive socket made from zinc diecasting, chromed
- Soft-Start
- Different mixing attachments
- Blades made from stainless cutlery steel
- CE mark
General Specifications
There are no General Specifications available.
Series Modals

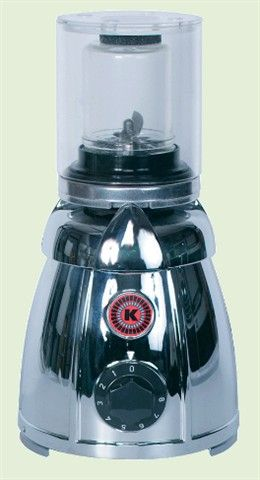

Kinematica - MICROTRON MB 550
[+] View Model Specifications| Depth | 190 mm |
| Height | 245 mm |
| Width | 190 mm |
| Power Requirements | 230 V / 115V, 50/60 Hz |
| Peak Power | 550 W |
| Weight | 4.4 kg |
| Motor | high temperature safe universal motor with fan |
| Shaking Speed | 600 up to 14'000 rpm |
| Additional Model Specifications | Working Volume: 125ml - 1000 ml (dep. on attachment)
Speed display: Scale 0-8 Speed regulation: Stepless electronic speed control with load compensation, thermal motor safety switch Environment: 0-40°C, 95% rel. humidity Protection class: Safety class I acc. EN 60335-1 Standards: EN 60335-1:1988, EN 60335-2-64:1993, prEN 60335-2-64:1997, EN 55014:1993, EN 55104:1995, EN 61000-3-2:1995, EN 61000-3-3:1995 |

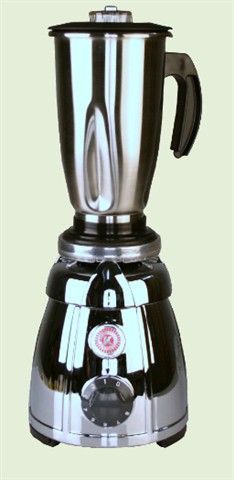

Kinematica - MICROTRON MB 800
[+] View Model Specifications| Depth | 190 mm |
| Height | 245 mm |
| Maximum Shaking Speed | 17000 rpm |
| Width | 190 mm |
| Power Requirements | 230 V / 115V, 50/60 Hz |
| Peak Power | 800 W |
| Weight | 5.3 kg |
| Motor | high temperature safe universal motor with fan, 800W |
| Shaking Speed | 500 up to 17000 rpm |
| Additional Model Specifications | Working Volume: 2000 ml - 4000 ml (dep. on attachment)
Speed display: Skala 0-8 Speed regulation: Stepless electronic speed control with load compensation, thermal motor safety switch Environment: 0-40°C, 95% rel. humidity Protection class: Safety class I acc. EN 60335-1 Standards: EN 60335-1:1988, EN 60335-2-64:1993, prEN 60335-2-64:1997, EN 55014:1993, EN 55104:1995, EN 61000-3-2:1995, EN 61000-3-3:1995 |
